IR Spectrum of H2O Dimer from MD

Run an MD simulation with GFN1-xTB for a gas-phase water dimer, then compute the IR spectrum from dipole-moment autocorrelation with AMS trajectory analysis.

This workflow can take some time to run, depending on hardware and MD length.

Initial Imports

Import PLAMS classes used for MD and analysis.

from pathlib import Path
from typing import List

from scm.plams import AMSAnalysisJob, AMSNVEJob, AMSNVTJob, Molecule, Atom, Settings, view

Create Dimer

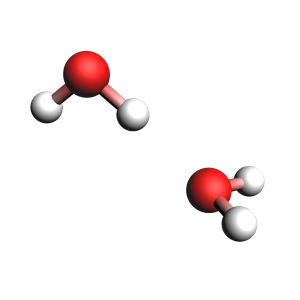

Create an H2O dimer geometry and visualize it.

molecule = Molecule()

molecule.add_atom(Atom(symbol="O", coords=[0.000, 0.000, 0.000]))
molecule.add_atom(Atom(symbol="H", coords=[0.558, 0.598, -0.513]))
molecule.add_atom(Atom(symbol="H", coords=[0.028, -0.815, -0.512]))
molecule.add_atom(Atom(symbol="O", coords=[-0.066, 0.0230, 2.724]))
molecule.add_atom(Atom(symbol="H", coords=[0.000, 0.000, 1.749]))
molecule.add_atom(Atom(symbol="H", coords=[-0.956, 0.357, 2.838]))

view(molecule, width=300, height=300, guess_bonds=True, direction="tilt_y")
image generated from notebook

Run MD

Run NVT equilibration at 300 K with GFN1-xTB.

engine_settings = Settings()
engine_settings.input.DFTB.Model = "GFN1-xTB"

nvt_job = AMSNVTJob(
    molecule=molecule,
    settings=engine_settings,
    nsteps=20000,
    timestep=0.5,
    thermostat="Berendsen",
)
nvt_results = nvt_job.run();

[31.03|11:57:32] JOB plamsjob STARTED
[31.03|11:57:32] JOB plamsjob RUNNING
[31.03|11:59:56] JOB plamsjob FINISHED
[31.03|11:59:56] JOB plamsjob SUCCESSFUL

Restart from the equilibrated trajectory and run NVE production while logging dipole moments.

nve_job = AMSNVEJob.restart_from(nvt_job, binlog_dipolemoment=True)
nve_results = nve_job.run();

[31.03|11:59:56] JOB plamsjob STARTED
[31.03|11:59:56] Renaming job plamsjob to plamsjob.002
[31.03|11:59:56] JOB plamsjob.002 RUNNING
[31.03|12:02:03] JOB plamsjob.002 FINISHED
[31.03|12:02:03] JOB plamsjob.002 SUCCESSFUL

Set up autocorrelation analysis of dipole-moment derivatives to obtain the IR spectrum.

Run AMS Analysis

analysis_settings = Settings()
analysis_settings.input.TrajectoryInfo.Trajectory.KFFilename = nve_results.rkfpath()
analysis_settings.input.Task = "AutoCorrelation"
analysis_settings.input.AutoCorrelation.Property = "DipoleMomentFromBinLog"
analysis_settings.input.AutoCorrelation.UseTimeDerivative.Enabled = "Yes"
analysis_settings.input.AutoCorrelation.WritePropertyToKF = "Yes"
analysis_settings.input.AutoCorrelation.MaxCorrelationTime = 2000

analysis_job = AMSAnalysisJob(settings=analysis_settings)
analysis_results = analysis_job.run();

[31.03|12:13:07] JOB plamsjob STARTED
[31.03|12:13:07] Renaming job plamsjob to plamsjob.004
[31.03|12:13:07] JOB plamsjob.004 RUNNING
[31.03|12:13:08] JOB plamsjob.004 FINISHED
[31.03|12:13:08] JOB plamsjob.004 SUCCESSFUL

Extract Results

Write all generated analysis plots to text files and list the outputs.

plots = analysis_results.get_all_plots()
written_files = []
for plot in plots:
    filename = f"{plot.section}.txt"
    plot.write(filename)
    written_files.append(filename)

print("Wrote analysis files:")
for filename in written_files:
    print(f"- {filename}")

Wrote analysis files:
- AutoCorrelation_1.txt
- AutoCorrelationRaw_1.txt
- Spectrum_1.txt
- Integral_1.txt

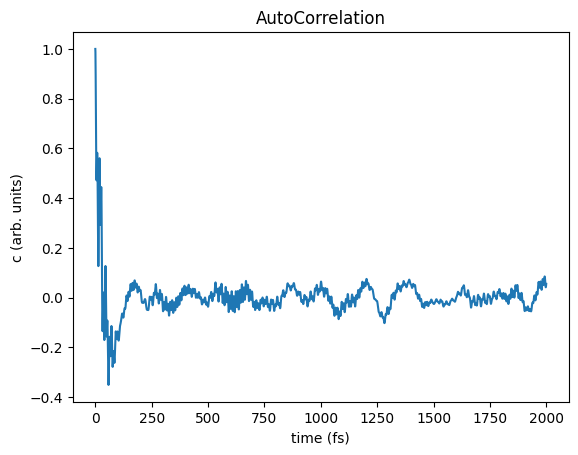

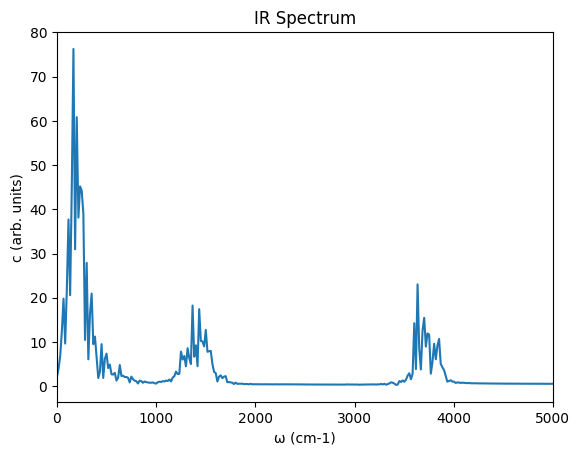

Finally, plot the autocorrelation function and IR spectrum.

ax = plots[0].plot(title="AutoCorrelation")
ax;
image generated from notebook
ax = plots[2].plot(xlim=(0, 5000), title="IR Spectrum")
ax;
image generated from notebook
