Ziff-Gulari-Barshad Model

A full overview of the model is provided in: ZiffGulariBarshad.py

The ZGB model includes the following elementary reactions:

\begin{align} \text{CO}_{(\text{g})} + \text{*} & \overset{k_\text{CO}}{\longrightarrow} \text{CO}^\text{*} &\qquad \text{CO adsorption} \\ \text{O}_{2(\text{g})} + 2\text{*} & \overset{k_{\text{O}_2}}{\longrightarrow} \text{O}^\text{*} + \text{O}^\text{*} &\qquad \text{O2 adsorption}\\ \text{CO}^\text{*} + \text{O}^\text{*} & \overset{k_\text{oxi}}{\longrightarrow} 2\text{*} + \text{CO}_{2(\text{g})} &\qquad \text{CO oxidation} \\ \end{align}

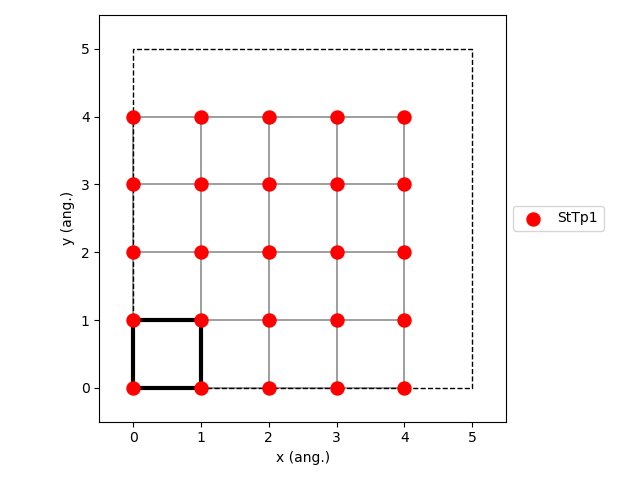

Fig. 1 Lattice generated using the option repeat_cell=(5,5)
