PEDA-NOCV - decomposing the orbital relaxation term

BAND Bonding Analysis Energy Decomposition Analysis

This tutorial will teach you how to perform a Periodic Energy Decomposition Analysis (PEDA) combined with the Natural Orbitals for Chemical Valency (NOCV) method for periodic systems with BAND. It will also show how to visualize NOCV orbitals and NOCV deformation densities.

Setting up the System and the Calculation

Follow the instructions in the sections “Set up the system” and “Set up the PEDA calculation” of the first PEDA Tutorial.

Preparations for the PEDA-NOCV calculation

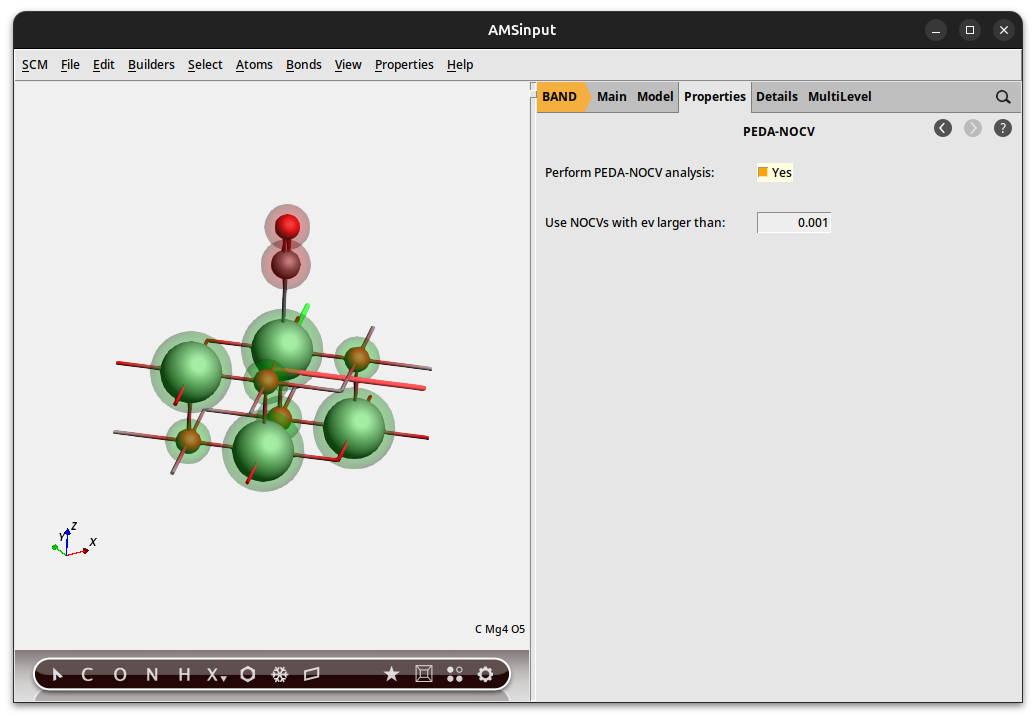

Now the PEDA-NOCV has to be switched on. Go to the PEDA-NOCV menu,

Panel bar Properties → PEDA-NOCV

Check the Perform PEDA-NOCV analysis checkbox

You can define a NOCV eigenvalue threshold (default: 0.001) which handles the amount of output.

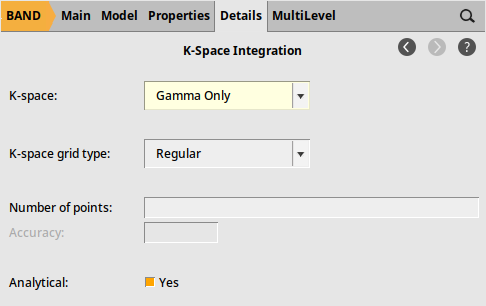

Keep in mind that the PEDA-NOCV is implemented for \(\Gamma\)-only systems. So, go to the ‘Integration K-Space’ menu,

Panel bar Details → K-Space Integration

Set the ‘K-Space’ to ‘Gamma only’

Save and run the calculation

Now you can save and run the calculation.

File → Save, give it a name and press Save.

File → Run

Step 2: Checking the results

After the calculation of the fragments and the PEDA are finished you can look for the PEDA results. Therefore, open the “Output” using the SCM dropdown menu.

SCM → Output

You can jump to the ‘PEDA-NOCV Energy Terms’ via the corresponding button in the ‘Properties’ drop-down menu.

Properties → PEDA-NOCV Energy Terms

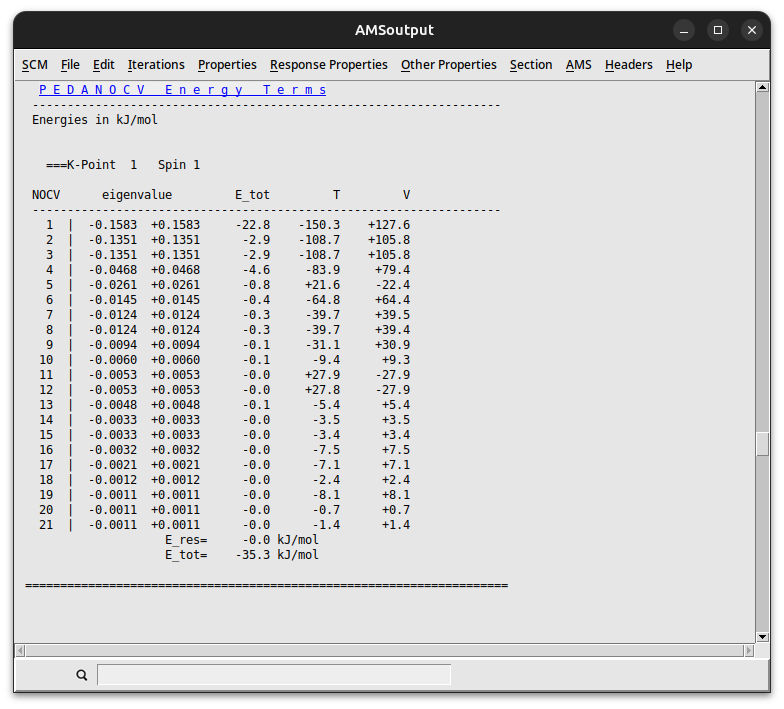

Reference results:

Step 3: Plotting NOCV orbitals and deformation densities

You can visualize the charge NOCV deformation densities which describe the charge flow between the fragments. Therefore, open the “View” using the SCM drop-down menu.

SCM → View

Press CTRL+2 to view along the Y-axis

Fields → Grid → Medium

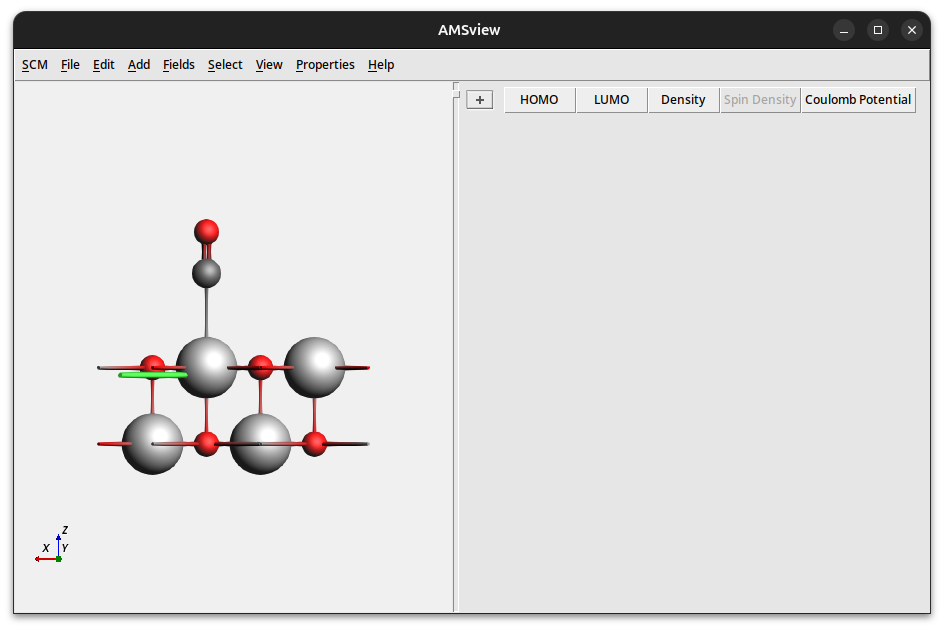

Depending on your preferences (w.r.t. showing atoms of neighboring cells) you will end up with the following representation of AMSview.

Step 3a: Plotting NOCV deformation densities

We will now visualize some NOCV deformation densities

→ Isosurface: With Phase

Click on Select Field → NOCV Def Densities…

A table will appear which will let you select the NOCV deformation density.

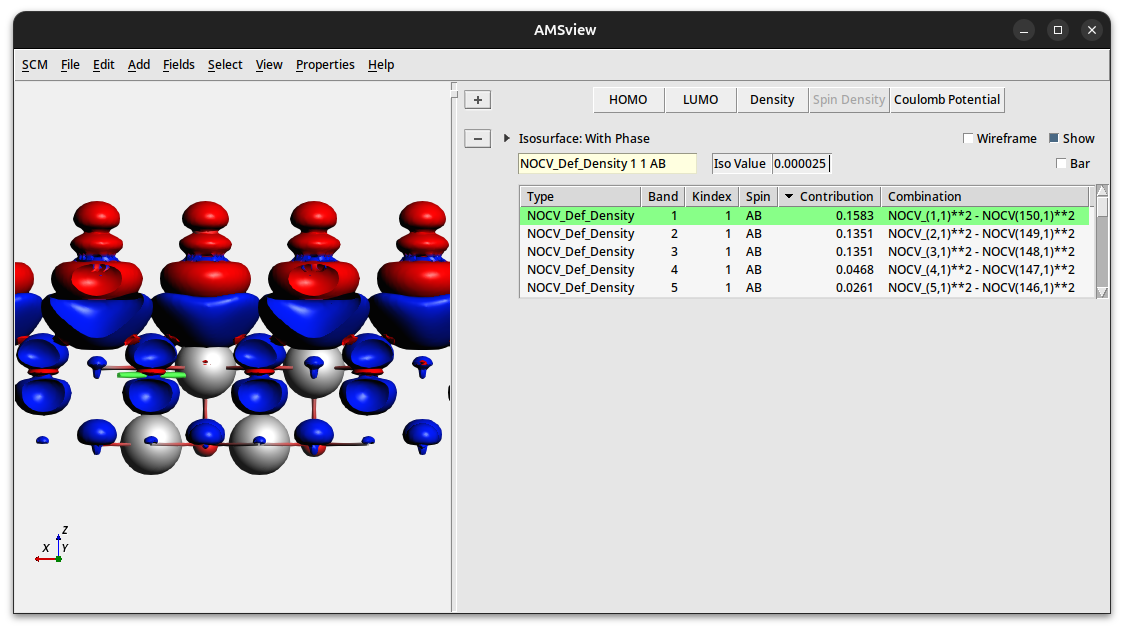

Click on the first entry in the table to visualize the first NOCV deformation density

Set the isovalue to 0.000025

According to the information in the “NOCV Def Densities” table, the first NOCV deformation density is a combination of NOCV orbital 1 (the first term denotes the donor/occupied NOCV) and 150 (the second term denotes the acceptor/unoccupied NOCV). This deformation density visualizes the charge flow from red to blue lobes. Here, the charge transfer from the CO to the MgO surface is shown.

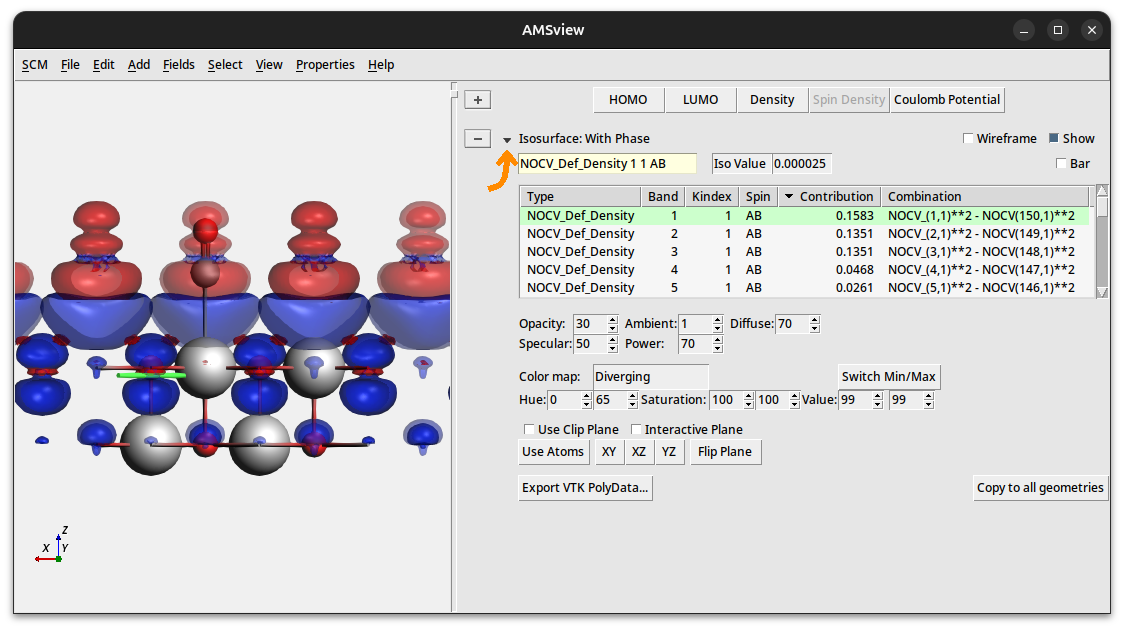

You can toggle extra visualization options by clicking on the tiny arrow next to “Isosurface: With Phase”:

Step 3b: Plotting NOCV orbitals

These NOCV orbitals can be visualized by changing the field to ‘NOCV Orbitals’.

Click on the field selector → NOCV Orbitals

Selecting the 1st and 150th NOCV orbitals will trigger the calculation of their isosurfaces. The orbitals can then be visualized one at a time. (Or you can add a second isosurface to show both of them.)

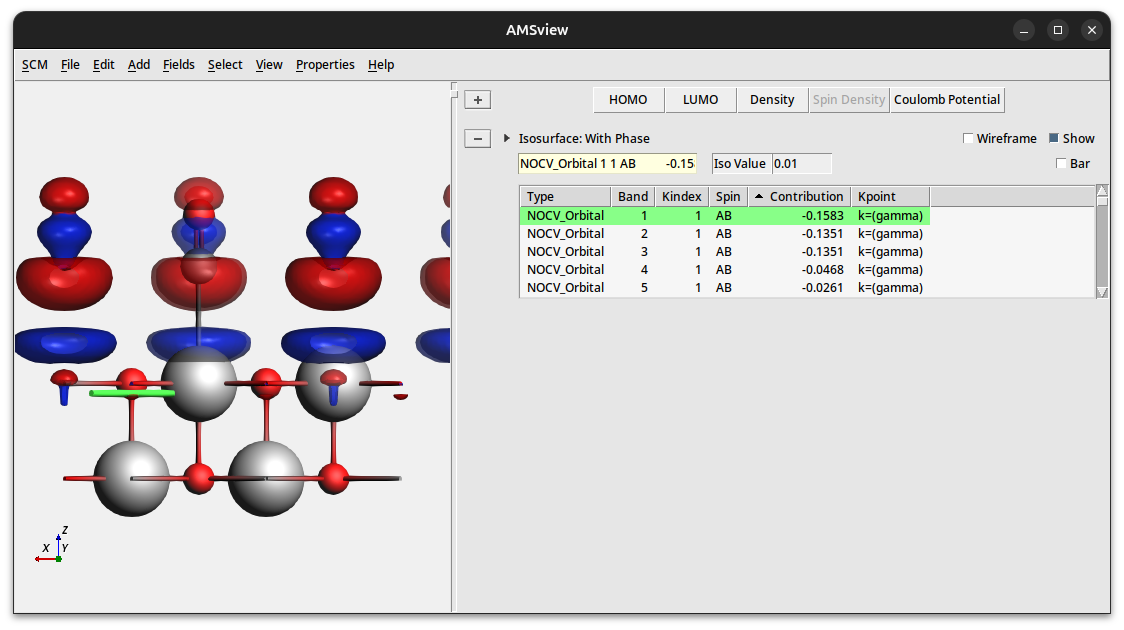

NOCV orbital 1 shows predominantly a lone-pair localized at the CO fragment (note: the iso value is set to 0.01)

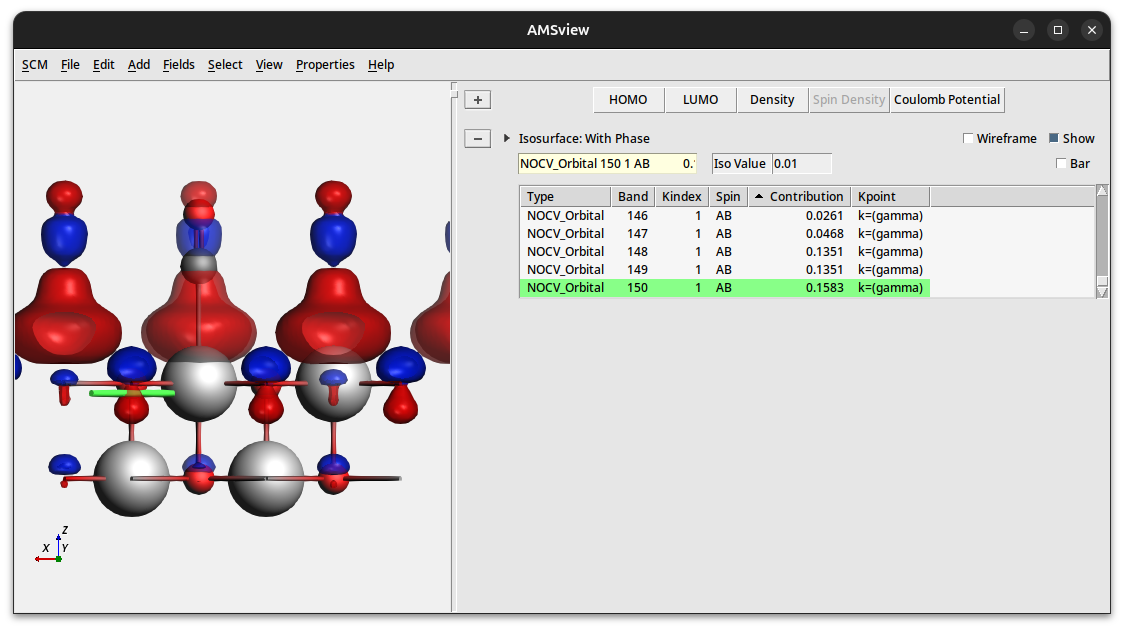

NOCV orbital 150 shows predominantly a lobe connecting the CO fragment with a Mg atom of the surface.
