Accurate XC functionals

ADF Fragments

This tutorial will showcase some of the accurate XC functionals included in ADF that can be used for barrier heights, reaction energies, and non-covalent interactions: the fast r2SCAN-3c composite method, the accurate sigma-functional (σ-functional), a general-purpose double hybrid B2GPPLYP-D3BJ, and an opposite-spin-only double hybrid rev-DOD-PBEP86-D4. The section on XC functionals in the ADF manual provides more technical details on these functionals.

We will be calculating the barrier height for a (water-catalyzed) proton-transfer reaction. This is one of the reactions in the WCPT18 [1] subset of the GMTKN55 database [2]. These types of databases are often used when benchmarking the performance of various XC functionals. In literature one can also find recommendations for which XC functional to use in which situation.

While ADF contains many XC functionals, a few of them are highlighted here: The r2SCAN-3c composite method and the σ-functional were chosen as they include specific parametrizations for STO basis sets. B2GPPLYP-D3BJ and rev-DOD-PBEP86-D4 were chosen because of the well-documented precision of double hybrid functionals.

r2SCAN-3c

The r2SCAN-3c composite method [3] uses the \(r^2\) SCAN (r2SCAN) exchange-correlation functional, in combination with a tailor-made all electron polarized basis set (mTZ2P), the semiclassical London dispersion correction (D4), and a geometrical counterpoise (gCP) correction. The STO-optimized r2SCAN-3c outperforms many conventional hybrid/QZ approaches across different applications, at a fraction of the cost. The r2SCAN-3c method in ADF supports both single point calculations and geometry optimizations.

Sigma-functional

σ-functionals belong to the class of Kohn–Sham (KS) correlation functionals based on the adiabatic-connection fluctuation-dissipation theorem and are closely related to the random phase approximation (RPA). In Ref. [4] it was concluded that σ-functionals are highly promising alternatives to established density functionals, including double hybrids. ADF features a σ-functional implementation which is specifically parametrized for STO-type basis sets [4]. In particular, for the TZ3P basis one should use the S1re parametrization of the σ-functional. Note that σ-functionals in ADF can only be used in single point calculations.

Note

For QZ4P or QZ6P basis sets, one should use the S1 parametrization of the σ-functional instead.

Double hybrids

Double-hybrid functionals usually yield considerably better energies than (meta-)GGA and (meta-)hybrid functionals for (main group) thermochemistry and kinetics, transition metal chemistry and non-covalent interactions. B2GP-PLYP [5] is a general-purpose double hybrid, aimed at predicting a range of properties across different systems. Rev-DOD-PBEP86-D4 [6] is an opposite-spin-only double hybrid. Opposite-spin only double hybrid functionals are recommended for large systems (50-100 atoms and larger) since they are computationally more efficient than the other double hybrid functionals which also include the same-spin contribution.

Note that double hybrids converge much slower to the complete basis set limit than simpler DFT methods. In ADF, double hybrids can only be used in single point calculations.

Tip

For specific properties, the optimal choice of double hybrid functional may differ. Consult the manual for more details.

Calculation settings

We start by making an input file for a single point energy calculation. Instructions are given below for each of the XC functionals. The input coordinates will be specified later, so we can leave the molecule editor empty for now.

r2SCAN-3c

SCM → New Input

Panel bar ADF → Main

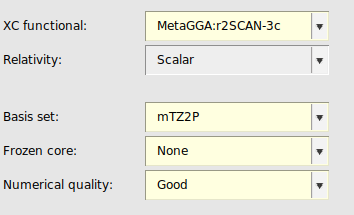

XC functional: MetaGGA → r2SCAN-3c

Click on File → Save As… and give it the name “IS9”

When saving the file, AMSinput will automatically adjust the Basis Set to mTZ2P, the Frozen Core to None and the Numerical Quality to Good, as required by r2SCAN-3c.

Sigma-functional

SCM → New Input

Panel bar ADF → Main

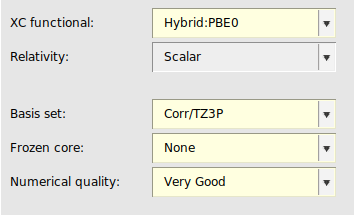

XC functional: Hybrid → PBE0

Basis set: Corr → Corr/TZ3P

Frozen core: None

Numerical quality: Very Good

Click the next to the XC Functional

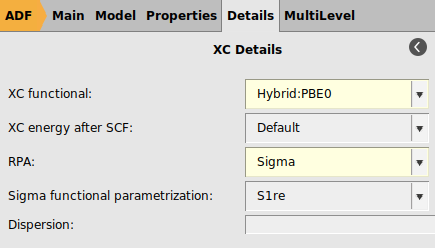

RPA: Sigma

Click on File → Save As… and give it the name “IS9”

Double hybrids

SCM → New Input

Panel bar ADF → Main

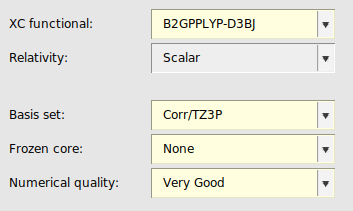

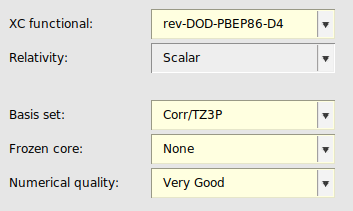

XC functional: Double Hybrids → B2GPPLYP-D3BJ or rev-DOD-PBEP86-D4

Basis set: Corr → Corr/TZ3P

Frozen core: None

Numerical quality: Very Good

Click on File → Save As… and give it the name “IS9”

IS9 → TS9 → FS9

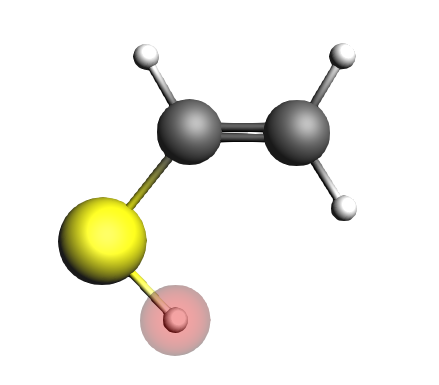

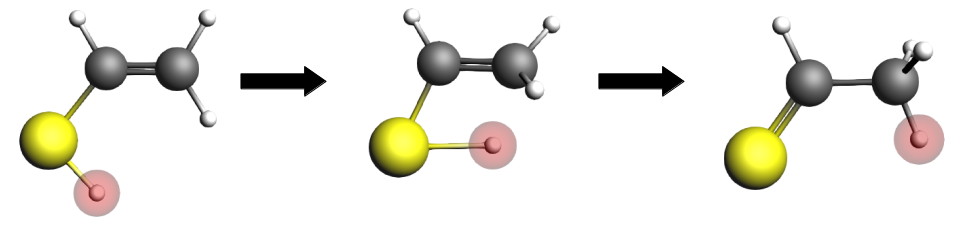

We will now perform single point calculations for the initial state (IS9, the enol), the transition state (TS9) and the final state (FS9, the ketone).

Copy-paste the following coordinates in the molecule-drawing area of AMSinput:

C     0.000000       0.759038       0.000000
H    -0.781174       1.509717       0.000000
C     1.280382       1.112661       0.000000
H     2.084515       0.388850       0.000000
H     1.555670       2.157995       0.000000
H     0.468551      -1.541748       0.000000
S    -0.688116      -0.859063       0.000000

Run the calculation:

Click on File → Save

Click on File → Run

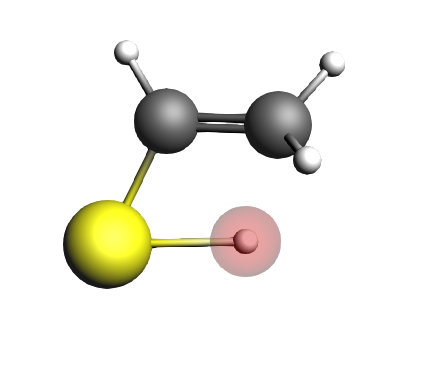

We can now repeat these steps for the transition state:

Click on Edit → Delete Molecule

Copy-paste the following coordinates in the molecule-drawing area of AMSinput:

C     0.468987       0.636874       0.053256
H     0.585413       1.716908       0.037321
C     1.515535      -0.285885      -0.030947
H     1.542575      -1.062299       0.729004
H     0.301002      -1.075601      -0.411970
H     2.498769      -0.002264      -0.395534
S    -1.052181      -0.105168      -0.005792

Click on File → Save As → TS9

Click on File → Run

And for the final state:

Click on Edit → Delete Molecule

Copy-paste the following coordinates in the molecule-drawing area of AMSinput:

C     0.000000       0.617005       0.000000
H     0.517521       1.577301       0.000000
C    -1.485898       0.714108       0.000000
H    -1.957093      -0.265537       0.000000
H    -1.819218       1.282178       0.874496
H    -1.819218       1.282178      -0.874496
S     0.874587      -0.741425       0.000000

Click on File → Save As → FS9

Click on File → Run

The output from these calculations can be used to compute the reaction energies and reaction barriers. The results have been summarized in the table below:

Table 6 Barrier height ΔE^‡ = E(TS9) - E(IS9) and reaction energy ΔE = E(FS9) - E(IS9) in kcal/mol.

	barrier height	reaction energy
Ref [1]	58.80	-2.44
r2-SCAN-3c	54.1	-3.7
σ-functional (S1re)	57.3	-2.2
B2GPPLYP-D3BJ	59.0	-2.1
rev-DOD-PBEP86-D4	59.8	-1.9

Note

The results for 1 specific molecule are insufficient to determine the general accuracy of an XC functional. Typically, larger benchmark studies are performed on many molecules when comparing XC functionals.

QZ6P basis set

Since double hybrids converge much slower to the complete basis set limit than simpler DFT methods, we include here an overview of the settings for calculations with the larger QZ6P basis set. The r2SCAN-3c composite method has only been defined for the mTZP basis set, and will therefore be omitted here.

Note

The use of QZ6P basis sets with σ-functionals or double hybrids is only recommended for expert ADF users as it may be more complicated to attain numerical stability. See also the recommendations for MBPT calculations in the ADF manual.

Sigma-functional

Note

Because the S1re parametrization of the σ-functional is only valid for TZ3P basis sets, one has to select the S1 parametrization when using a QZ6P basis.

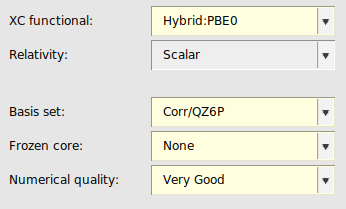

SCM → New Input

Panel bar ADF → Main

XC functional: Hybrid → PBE0

Basis set: Corr → Corr/QZ6P

Frozen core: None

Numerical quality: Very Good

Click the next to the XC Functional

RPA: Sigma

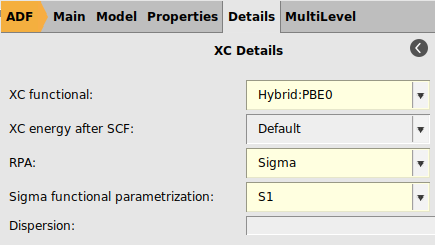

Sigma functional parametrization: S1

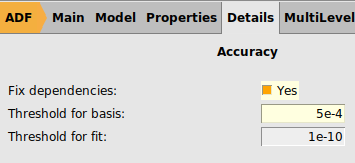

Panel bar Details → Accuracy

Tick the Fix dependencies checkbox

Threshold for basis: 5e-4

Double hybrids

SCM → New Input

Panel bar ADF → Main

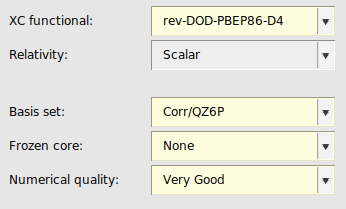

XC functional: Double Hybrids → B2GPPLYP-D3BJ or rev-DOD-PBEP86-D4

Basis set: Corr → Corr/QZ6P

Frozen core: None

Numerical quality: Very Good

Panel bar Details → Accuracy

Tick the Fix dependencies checkbox

Threshold for basis: 5e-4

The results for the QZ6P calculations have been summarized below:

Table 7 Barrier height ΔE^‡ = E(TS9) - E(IS9) and reaction energy ΔE = E(FS9) - E(IS9) in kcal/mol, with a QZ6P basis set.

	barrier height	reaction energy
Ref [1]	58.80	-2.44
σ-functional (S1)	59.5	-1.3
B2GPPLYP-D3BJ	58.7	-2.5
rev-DOD-PBEP86-D4	59.6	-2.3

We remark again that the results for 1 individual calculation, or 1 individual property, cannot be used to make conclusions on the accuracy of the functional as a whole. One would typically perform calculations on a larger number of molecules to determine which functional is most reliable for a specific application. If computational resources are limiting, one may also consult literature to find a suitable functional based on prior analyses.

References

[1] (1,2,3)

A. Karton, R. J. O’Reilly and L. Radom, J. Phys. Chem. A 116 (2012) 4211

[2]

L. Goerigk, A. Hansen. C. A. Bauer, S. Ehrlich, A. Najibi, S. Grimme, Phys. Chem. Chem. Phys., 19 (2017) 32184

[3]

T. Gasevic, J.B. Stückrath, S. Grimme, and M. Bursch, J. Phys. Chem. A 126, 3826 (2022)

[4] (1,2)

S. Fauser, A. Förster, L. Redeker, C. Neiss, J. Erhard, E. Trushin, A. Görling, J. Chem. Theory Comput. 20 (2024) 2404

[5]

A. Karton, A. Tarnopolsky, J.F. Lamere, G.C. Schatz, J.M.L, Martin, J. Phys. Chem. A 2008, 112, 12868

[6]

G. Santra, N. Sylvetsky, and J.M.L. Martin, J. Chem. Phys. 2019, 123, 5129
