4.2. Generate reference values

In all previous tutorials, the reference data was either already pre-calculated, or calculated by setting up a job in AMSinput and running it in the normal way before importing the results to ParAMS.

You can also use ParAMS to calculate the reference values. That is illustrated in this tutorial.

This can be useful if you, for example:

  • want to reevaluate (parts of) the training set with a different reference method,

  • have added a reaction energy without a reference value, or

  • only have a few reference jobs that are relatively quick to calculate.

../../_images/LJ_Ar_no_reference_data_toc.png

Note

It is usually better to first run the reference calculations and then import them into ParAMS (i.e., to not follow this tutorial, but instead the Import training data (GUI) or Import training data (Python) tutorials). That way you can:

  • run the reference calculations on multiple nodes,

  • store the reference calculations and results in arbitrary places on disk,

  • inspect the reference results and correct any errors before the parametrization, and

  • use the results importer for PESScans which generate plots.

4.2.1. Prerequisites

  • Go through the Getting Started: Lennard-Jones tutorial.

  • Make a copy of the example directory $AMSHOME/scripting/scm/params/examples/LJ_Ar_no_reference_data.

4.2.2. The input files

4.2.2.1. Training set without reference values (training_set.yaml)

Open the ParAMS GUI: SCM → ParAMS
File → Open the job_collection.yaml file in the example directory
Switch to the Training Set panel
Note that the Values column is empty: There are no reference values!
../../_images/noref_initial_view.png

The reference values will be calculated when you start the parametrization.

4.2.2.2. Jobs and Engines (job_collection.yaml, job_collection_engines.yaml)

All Jobs that are mentioned in training set entries without a reference value, will be calculated before the parametrization starts with the help of a Reference Engine.

Switch to the Jobs panel

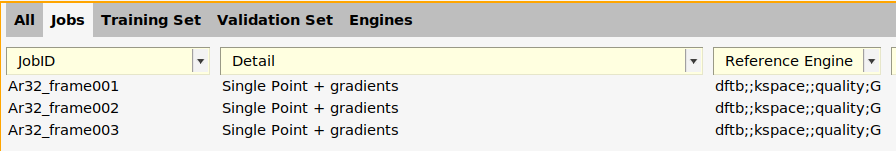

The Reference Engine column contains entries with dftb;;kspace;;quality;GammaOnly;model;GFN1-xTB;.
../../_images/noref_initial_jobs.png

This rather cryptic ID is a reference engine id.

Switch to the Engines panel
../../_images/noref_initial_engines.png
Double-click in the Detail column where it says Engine dftb   kspace .......
../../_images/noref_engine_settings.png
You then see the Engine settings in the top box. If you are familiar with this type of input, you can directly edit it in the text box.
Below, you see the Engine ID. Change the ID to something more familiar, for example GFN1xTB_GammaPoint (do not use spaces in the name).
../../_images/noref_rename_engine.png
Click OK
This updates the Engine ID in the table
../../_images/noref_renamed_engine_engines_panel.png

This affects all jobs with that particular reference engine.

To edit the engine used for a job:

Switch back to the Jobs panel
../../_images/noref_renamed_engine_jobs_panel.png
The column with reference engines have been updated to contain the ID you chose.
Double-click on the Ar32_frame002 job in the Detail column (where it says SinglePoint + gradients)
../../_images/noref_job_details_before_change.png
Click the AMSinput button next to Reference Engine.
This brings up an AMSinput window on the DFTBPanel panel (if you do not have a DFTB license, choose an engine for which you have a valid license).
The engine settings that will be used for the job are shown. For example, KSpace is set to GammaOnly.
You can change the DFTB settings. For example, set KSpace to Basic and Occupation to Fermi
../../_images/noref_amsinput_settings.png
Close the AMSinput window
In the dialog “Pass to ParAMS?” click Yes
A window informs that you that related reference values will be cleared. In this tutorial there are no reference values yet anyway. Click OK
This creates a new reference engine GFN1xTB;2526569033. The numbers are a hash of the settings.
../../_images/noref_added_engine.png
The Ar32_frame002 job has the new reference engine. You can rename it on the Engines panel if you prefer.

In this way, you can create an arbitrary number of engines, or choose already-created engines.

Switch to the Jobs panel
Double-click on the Ar32_frame002 job in the Detail column (where it says SinglePoint + gradients)
../../_images/noref_added_engine_job_details.png
In the Reference Engine drop-down, choose the original reference engine (GFN1xTB_GammaPoint).
../../_images/noref_reset_engine.png
Click OK
Verify that all jobs have the GFN1xTB_GammaPoint engine

4.2.3. Calculate the reference values

Select the Generate Reference task:

Click OptimizationPanel to open the input panel
Click OptimizationPanel again to open the dropdown of available tasks
Select Generate Reference

Save and run the task:

File → Save As
Save with the name calc_ref_values.params
File → Run. This brings up AMSjobs
../../_images/noref_running.png

Once complete the GUI will automatically load the reference values:

Switch back to the ParAMS window

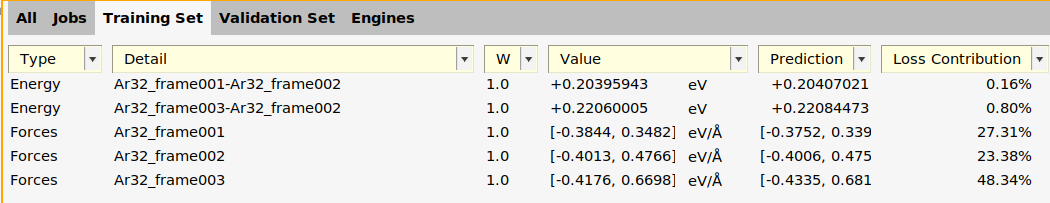

On the Training Set panel, the reference values have been added
../../_images/noref_added_refvalues.png

Since the reference data has been automatically loaded, you may now immediately continue to setting up an optimization. You can switch the task back to Optimization, change any settings you like (for details see Getting Started: Lennard-Jones), and then save the job. The reference values will be saved within the new job folder as normal.

4.2.4. Output files for reference calculations and data

In the results folder, you will find:

  • the individual job results saved in results/reference_jobs

  • the task input saved in results/settings_and_initial_data

  • a file training_set.ref.yaml containing the reference values.

4.2.4.1. The reference_jobs folder

For example, the file reference_jobs/Ar32_frame001/Ar32_frame001.in contains the input to the Ar32_frame001 job, which combines input from the job collection and engine collection:

properties
  gradients yes
End

system
  Atoms
             Ar       5.1883477539      -0.4887475488       7.9660568076
             Ar       5.7991822399       0.4024595652       2.5103286966
             Ar       6.1338265157       5.5335946219       7.0874208384
             Ar       4.6137188191       5.9644505949       3.0942810122
             Ar       8.4186778390       7.6292969115       8.0729664423
             Ar       8.3937816110       8.6402371806       2.6057806799
             Ar       7.5320205143       1.7666481606       7.7525889818
             Ar       8.5630139885       2.0472039529       2.6380554086
             Ar       2.6892353632       7.8435284207       7.7883054306
             Ar       2.4061636915       7.5716025415       2.4535180075
             Ar       2.2485171283       2.9764130946       7.8589298904
             Ar       3.0711058946       1.8500587164       2.5620921469
             Ar       7.6655637500      -0.4865893003       0.0018797080
             Ar       7.7550067215      -0.0222821825       4.8528637785
             Ar       7.7157262425       4.6625079517      -0.3861722152
             Ar       7.7434900996       5.2619590353       4.2602386226
             Ar       3.4302237084      -0.2708640738       0.6280466620
             Ar       2.8648051689       0.6106220610       6.1208342905
             Ar       3.2529823775       5.7151788324      -0.2024448179
             Ar       2.0046357208       4.9353027402       5.4968740217
             Ar       0.9326855213       8.0600564695      -0.3181225099
             Ar      -0.5654205469       8.5703446434       5.8930973456
             Ar      -0.9561293133       2.1098403312      -0.0052667919
             Ar      -0.8081417664       3.2747992855       5.5295389610
             Ar       5.5571960244       7.5645919074       0.1312355350
             Ar       4.4530832384       7.6170633330       5.4810860433
             Ar       5.1235367625       2.7983577675      -0.3161069611
             Ar       5.2048439076       2.9885672135       4.5193274119
             Ar      -0.2535891591       0.0134355189       8.3061692970
             Ar       0.5614183785      -0.1927751317       3.2355155467
             Ar      -0.0234943080       5.0313863031       8.0451075074
             Ar      -0.4760138873       6.2617510830       2.5759742219
  End
  Lattice
        10.5200000000     0.0000000000     0.0000000000
         0.0000000000    10.5200000000     0.0000000000
         0.0000000000     0.0000000000    10.5200000000
  End
End

task singlepoint

Engine dftb
  kspace
    quality GammaOnly
  End
  model GFN1-xTB
EndEngine

The normal AMS output can be found in the same folder: the logfile, standard outputfile, and the binary ams.rkf and dftb.rkf files.

4.2.4.2. The training_set.ref.yaml file

The training_set.ref.yaml file contains the calculated reference values. For example, it starts with

---
dtype: DataSet
version: '2022.101'
---
Expression: energy('Ar32_frame001')-energy('Ar32_frame002')
Weight: 1.0
Sigma: 0.054422772491975996
ReferenceValue: 0.20395942701637979
Unit: eV, 27.211386245988
---
Expression: energy('Ar32_frame003')-energy('Ar32_frame002')
Weight: 1.0
Sigma: 0.054422772491975996
ReferenceValue: 0.22060005303998803
Unit: eV, 27.211386245988
---
Expression: forces('Ar32_frame001')
Weight: 1.0
Sigma: 0.15426620242897765
ReferenceValue: |

These were the reference values that were used in the Getting Started: Lennard-Jones tutorial.

4.2.5. Generate reference values in Python

See run.py, where first the GenerateReference job is run, and then the resulting reference values are used to run an optimization. See also ParAMSJob and ParAMSResults.

#!/usr/bin/env amspython
from scm.plams import *
from scm.params import *
import os

def main():
    init()

    inputfile = os.path.expandvars('$AMSHOME/scripting/scm/params/examples/LJ_Ar_no_reference_data/params.in')
    job = ParAMSJob.from_inputfile(inputfile, name="genref")
    job.run()

    # use all settings from the LJ_Ar example except for the path to the training set
    inputfile = os.path.expandvars('$AMSHOME/scripting/scm/params/examples/LJ_Ar/params.in')
    opt_job = ParAMSJob.from_inputfile(inputfile, name="optimization")
    opt_job.training_set = job.results.get_training_set_ref_path()
    opt_job.run()

    loss = opt_job.results.get_loss(source='latest')
    print(f"Final loss: {loss}")

    finish()

if __name__ == '__main__':
    main()
