# Example: Using capping atoms in a periodic systemΒΆ

Here we look at a polyethylene-like (infinite) chain, the carbons being alternatingly substituted with B and N atoms.

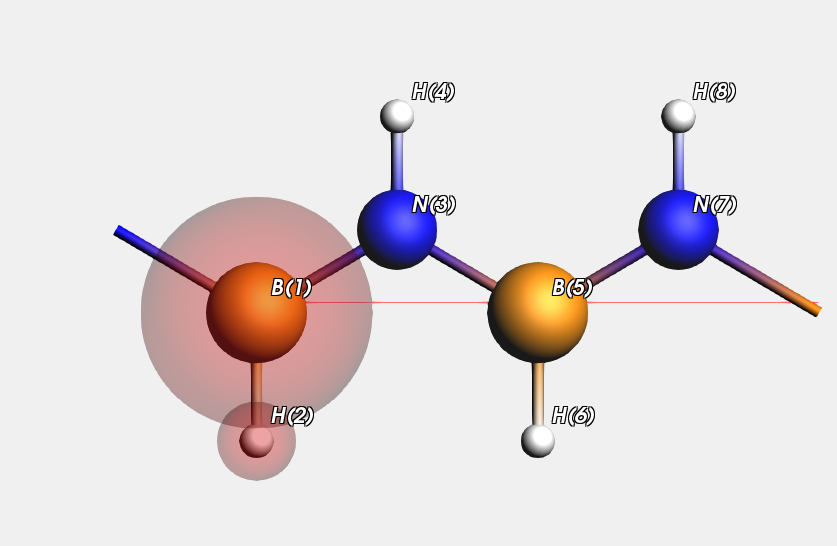

We will use a bunch of different QM systems in a QMMM setup, and check what happens. Inevitably we need to break B-N bonds, and hence capping atoms are used. (In the picture the QM region according to variant one is shown.) We also show the results obtained for the system with the pure QM and MM methods.

Let us have a look at the report generated by the example, that pretty much explains what is done

`Download report PeriodicCapping.txt`

```We optimize the lattice and test several distances

The system can be cut in several variations into a a QM and an MM part breaking a B-N bond

variation             QM atoms
var1            B(1),H(2)
var2            B(5),H(6)
var3            N(3),H(4)
var4            N(7),H(8)
var5  B(1),H(2),N(3),H(4)
var6  B(5),H(6),N(7),H(8)

Variation one is equivalent to variation two, and variation 3 should be equivalent with variation 4

Variation five is equivalent to variation six

Here are the distances (Angstrom) as obtained with a QM and an MM method
distance         qm         mm
B(1)-H(2)      1.182      1.185
B(5)-H(6)      1.182      1.185
N(3)-H(4)      1.007      1.045
N(7)-H(8)      1.007      1.045
B(1)-N(3)      1.431      1.508
B(5)-N(7)      1.431      1.508

Now we try the hybrid engine with several variations for the QM region

Two capping methods are tried as well.

variation         capping          energy       B(1)-H(2)       B(5)-H(6)       N(3)-H(4)       N(7)-H(8)       B(1)-N(3)       B(5)-N(7)
var1           fixed       -2.901499           1.184           1.185           1.045           1.045           1.508           1.508
var1      fractional       -2.787165           1.198           1.182           1.044           1.044           1.673           1.505
var2           fixed       -2.901499           1.185           1.184           1.045           1.045           1.508           1.508
var2      fractional       -2.787165           1.182           1.198           1.044           1.044           1.505           1.673
var3           fixed       -4.791110           1.184           1.184           0.993           1.044           1.508           1.507
var3      fractional       -4.733046           1.184           1.184           0.997           1.045           1.657           1.506
var4           fixed       -4.791110           1.184           1.184           1.044           0.993           1.507           1.508
var4      fractional       -4.733046           1.184           1.184           1.045           0.997           1.506           1.657
var5           fixed       -6.741093           1.189           1.187           1.003           1.045           1.390           1.489
var5      fractional       -6.648313           1.198           1.183           1.003           1.045           1.405           1.505
var6           fixed       -6.741093           1.187           1.189           1.045           1.003           1.489           1.390
var6      fractional       -6.648313           1.183           1.198           1.045           1.003           1.505           1.405

Here are some observations
* generally the fixed capping seems a bit better

Here are some remarks
* Starting from the initial very bad structure the fixed capping fails completely for variant 5 and 6
(not if you use as qm engine band and as mm engine dftb)
* A reasonable starting geometry can avoid strange collapses
* The more the two engines disagree about the capped QM region, the stronger the capping forces
```

`Download PeriodicCapping.run`

```#!/bin/sh

export NSCM=1

report=report.txt

STRUCTDIR=\$AMSHOME/examples/Hybrid/PeriodicCapping/systems

# ensure that not a comma is used for decimals in the printf function
LC_NUMERIC=en_US.UTF-8

export AMS_JOBNAME=reference

rm -rf \$AMS_JOBNAME.results

\$AMSBIN/ams<<EOF

GeometryOptimization OptimizeLattice=yes Method=FIRE MaxIterations=300

System
GeometryFile \$STRUCTDIR/var1.xyz
GuessBonds true
end

Engine DFTB
EndEngine

EOF

aaa1qm=`\$AMSBIN/amsreport \$AMS_JOBNAME.results/dftb.rkf -r distance#1#2`
aaa2qm=`\$AMSBIN/amsreport \$AMS_JOBNAME.results/dftb.rkf -r distance#5#6`
bbb1qm=`\$AMSBIN/amsreport \$AMS_JOBNAME.results/dftb.rkf -r distance#3#4`
bbb2qm=`\$AMSBIN/amsreport \$AMS_JOBNAME.results/dftb.rkf -r distance#7#8`
ccc1qm=`\$AMSBIN/amsreport \$AMS_JOBNAME.results/dftb.rkf -r distance#1#3`
ccc2qm=`\$AMSBIN/amsreport \$AMS_JOBNAME.results/dftb.rkf -r distance#5#7`

printf "We optimize the lattice and test several distances\n" > \$report

printf "\nThe system can be cut in several variations into a a QM and an MM part breaking a B-N bond\n" >>\$report

printf "\n%15s %20s\n" "variation" "QM atoms" >>\$report
printf "%15s %20s\n" "var1" "B(1),H(2)" >>\$report
printf "%15s %20s\n" "var2" "B(5),H(6)" >>\$report
printf "%15s %20s\n" "var3" "N(3),H(4)" >>\$report
printf "%15s %20s\n" "var4" "N(7),H(8)" >>\$report
printf "%15s %20s\n" "var5" "B(1),H(2),N(3),H(4)" >>\$report
printf "%15s %20s\n" "var6" "B(5),H(6),N(7),H(8)" >>\$report

printf "\nVariation one is equivalent to variation two, and variation 3 should be equivalent with variation 4\n" >>\$report
printf "\nVariation five is equivalent to variation six\n" >>\$report

export AMS_JOBNAME=cheap

rm -rf \$AMS_JOBNAME.results

\$AMSBIN/ams<<EOF

GeometryOptimization OptimizeLattice=yes Method=FIRE MaxIterations=300

System
GeometryFile \$STRUCTDIR/var1.xyz
GuessBonds true
end

Engine ForceField
EndEngine

EOF

aaa1mm=`\$AMSBIN/amsreport \$AMS_JOBNAME.results/forcefield.rkf -r distance#1#2`
aaa2mm=`\$AMSBIN/amsreport \$AMS_JOBNAME.results/forcefield.rkf -r distance#5#6`
bbb1mm=`\$AMSBIN/amsreport \$AMS_JOBNAME.results/forcefield.rkf -r distance#3#4`
bbb2mm=`\$AMSBIN/amsreport \$AMS_JOBNAME.results/forcefield.rkf -r distance#7#8`
ccc1mm=`\$AMSBIN/amsreport \$AMS_JOBNAME.results/forcefield.rkf -r distance#1#3`
ccc2mm=`\$AMSBIN/amsreport \$AMS_JOBNAME.results/forcefield.rkf -r distance#5#7`

printf "\nHere are the distances (Angstrom) as obtained with a QM and an MM method\n" >> \$report
printf "%10s %10s %10s\n"   "distance"  "qm"  "mm" >> \$report
printf "%10s %10.3f %10.3f\n"   "B(1)-H(2)"  \$aaa1qm \$aaa1mm >> \$report
printf "%10s %10.3f %10.3f\n"   "B(5)-H(6)"  \$aaa2qm \$aaa2mm >> \$report
printf "%10s %10.3f %10.3f\n"   "N(3)-H(4)"  \$bbb1qm \$bbb1mm >> \$report
printf "%10s %10.3f %10.3f\n"   "N(7)-H(8)"  \$bbb2qm \$bbb2mm >> \$report
printf "%10s %10.3f %10.3f\n"   "B(1)-N(3)"  \$ccc1qm \$ccc1mm >> \$report
printf "%10s %10.3f %10.3f\n"   "B(5)-N(7)"  \$ccc2qm \$ccc2mm >> \$report

printf "\nNow we try the hybrid engine with several variations for the QM region\n" >> \$report
printf "\nTwo capping methods are tried as well.\n" >>\$report

printf "\n%15s %15s %15s %15s %15s %15s %15s %15s %15s\n" "variation" "capping" "energy" "B(1)-H(2)" "B(5)-H(6)"  "N(3)-H(4)" "N(7)-H(8)" "B(1)-N(3)"  "B(5)-N(7)" >> \$report

for system in var1 var2 var3 var4 var5 var6
do

# This calc in only needed to start from a reasonable guess

export AMS_JOBNAME=\$system.cheap

rm -rf \$AMS_JOBNAME.results

\$AMSBIN/ams<<EOF

GeometryOptimization OptimizeLattice=yes Method=FIRE MaxIterations=300

System
GeometryFile \$STRUCTDIR/\$system.xyz
GuessBonds true
end

Engine ForceField
EndEngine

EOF

for embedding in electrostatic
do

for capping in fixed fractional
do

export AMS_JOBNAME=\$system.embedding=\$embedding.capping=\$capping.go

rm -rf \$AMS_JOBNAME.results

\$AMSBIN/ams<<EOF

GeometryOptimization OptimizeLattice=yes Method=FIRE MaxIterations=100

File \$system.cheap.results
End

Engine Hybrid

Capping AllowHighBondOrders=true Option=\$capping

QMMM qmRegion=qm qmEngineID=dftb mmEngineID=ForceField Embedding=\$embedding

Engine Band
EndEngine

Engine DFTB
EndEngine

Engine ForceField
EndEngine

EndEngine

EOF

aaa1=`\$AMSBIN/amsreport \$AMS_JOBNAME.results/hybrid.rkf -r distance#1#2`
aaa2=`\$AMSBIN/amsreport \$AMS_JOBNAME.results/hybrid.rkf -r distance#5#6`
bbb1=`\$AMSBIN/amsreport \$AMS_JOBNAME.results/hybrid.rkf -r distance#3#4`
bbb2=`\$AMSBIN/amsreport \$AMS_JOBNAME.results/hybrid.rkf -r distance#7#8`
ccc1=`\$AMSBIN/amsreport \$AMS_JOBNAME.results/hybrid.rkf -r distance#1#3`
ccc2=`\$AMSBIN/amsreport \$AMS_JOBNAME.results/hybrid.rkf -r distance#5#7`
xxx=`\$AMSBIN/amsreport \$AMS_JOBNAME.results/hybrid.rkf -k "AMSResults%Energy"`

printf "%15s %15s %15.6f %15.3f %15.3f %15.3f %15.3f %15.3f %15.3f\n" \$system \$capping \$xxx \$aaa1 \$aaa2 \$bbb1 \$bbb2 \$ccc1  \$ccc2 >> \$report

done
done
done

printf "\nHere are some observations\n" >>\$report
printf "     * generally the fixed capping seems a bit better\n" >>\$report

printf "\nHere are some remarks\n" >>\$report
printf "     * Starting from the initial very bad structure the fixed capping fails completely for variant 5 and 6\n" >>\$report
printf "       (not if you use as qm engine band and as mm engine dftb)\n" >>\$report
printf "     * A reasonable starting geometry can avoid strange collapses\n" >>\$report
printf "     * The more the two engines disagree about the capped QM region, the stronger the capping forces\n" >>\$report

echo "begin report"
cat \$report
echo "end report"
```
