Parameter files

The parameters of a forcefield are defined via one or more files, automatically set when using a standard type . One way to change it is to use a parametrization made by someone else, that works better for systems of your interest.

A far more advanced use is to tweak an existing file, or create a new one, possibly to improve the results for specific systems of interest. For such a project the PARAMS tool might be helpful.

Here we distinguish the UFF and the AMBER case.

UFF parameters

The parameter set used by UFF can be changed via the UFF key block. Aside from the standard UFF forcefield, we ship two parameter sets for Metal-Organic Frameworks:

UFF4MOF parameters

We ship the extended parameter set for Metal-Organic Frameworks created by M.A. Addicoat et al. (2013). Select the UFF4MOF_general_db, UFF4MOF_elements_db and UFF4MOF_mmatomtypes_db files to use these parameters, and check that the proper atom types are detected for your system or set them manually. Please see [7] for details on the parameters.

UFF4MOFII parameters

We ship a second extended parameter set for Metal-Organic Frameworks created by D.E. Coupry et al. (2016). Select the UFF4MOFII_general_db, UFF4MOFII_elements_db and UFF4MOFII_mmatomtypes_db files to use these parameters, and check that the proper atom types are detected for your system or set them manually. Please see [8] for details on the parameters.

User-modified force fields (expert option)

Finding good UFF parameters can be a challenging task, and any results with modified parameters should be checked very carefully. SCM has no experience with this, and the parameters supplied for UFF have not been generated by us. Feel free to test new parameters, and feel free to let us know if you have a good working set for a specialized situation.

General parameters file

The general_db file ($AMSHOME/atomicdata/UFF/general_db) contains all the parameters used to calculate the forces and energies. The format is:

MMAtomType, ri, phi, xi, di, psi, zmm, vsp3, vsp2, chi, nc.

The items in the list are:

  • MMAtomType: name, max 5 characters

  • ri: Valence Bond [Å]

  • phi: Valence Angle [Degree]

  • xi: Nonbond Distance [Å]

  • di: Nonbond Energy [kcal/mol]

  • psi: Nonbond scale [Number]

  • zmm: Effective Charge [Charge]

  • vsp3: sp3 Torsional Barrier [kcal/mol]

  • vsp2: sp2 Torsional Barrier [kcal/mol]

  • chi: Electronegativity

  • nc: Number of directly attached atoms, aka coordination number. This is required for counting the number of possible dihedrals, and is defined only for the sp2 and sp3 centers (types 2, R, and 3)

The current set of parameters comes from the deMonNano program, and is a combination of published parameters and fitted data to fill in the gaps. The deMonNano documentation says the following about the parameters:

Implementation of the Universal Force Field (UFF) in deMonNano
--------------------------------------------------------------

As far as possible, UFF molecular mechanics forcefield in deMon
follows the published forcefield definition in [1]. In several
cases, the definitions and expressions in [1] are not consistent
with the published applications of the forcefield [1,5,6].
In those cases, an attempt was made to correct the errors and omissions,
using information from [2].

The following changed were made, compared to the published UFF
forcefield description (all equation and page numbers refer to [1]).

1. Sign error in Eq. 2 (equilibrium bond length) was corrected
   - electronegativity correction must be negative!

2. Equilibrium valence angle for O_3_z was corrected from 146.0
   degree to 145.45 degree.

3. Bending periodicity (Eq. 10) for linear coordination was
   corrected from 1 to 2.

4. Sign errors were corrected in eqs. 13 and and unnumbered equation
   for the beta parameter (between eqs. 13 and 14).

5. The reference value of the UFF amide force constant, of 105.5
   kcal/mol/rad**2 (p. 10028) is wrong. The results are consistent
   with the force constant of 211.0 kcal/mol/rad**2.

6. Equilibrium torsional angle for a bond between a group-6A atom
   (oxygen ...) and an sp2 atom (90 degree) is wrong (p. 10028).
   It should be 0 degree.

7. The conditional for the special-case sp2-sp3 torsion (p. 10029)
   is wrong, and should be inverted - see [4].

8. The overall shape of the UFF torsional potential degenerates to
   a Heavyside function when one of the bond angles becomes linear,
   leading to failures in geometry optimization and force constant
   evaluation. The UFF torsional term was augmented with a smooth
   masking function, to avoid this.

9. UFF inversion potential is not defined in [1] for group 5A
   elements (from phosphorus down). Taking the equilibrium inversion
   coordinate of 87 degree, and the suitable expressions for the
   cosine weights (see uff_get_inversion_shape in "uff_database.f90")
   appears to reproduce published UFF structures and energetics.

The following atom types have been fully tested, and are believed
to reproduce published UFF forcefield results exactly. The examples
refer to the $deMon/examples/test.mm directory.

  Atom type  Example     Description
  ---------  -------     -----------

    Al3      alme3tma    Trivalent aluminum
    As3+3    asf3        Trivalent arsenic
    B_2      bcl3        Planar (sp2) boron
    B_3      b2h5nme2    Tetrahedral (sp2) boron, including
                         charge transfer adducts and borohydrates
    Br       bbr3        Univalent bromine
    C_1      c2h2, co    Linear (sp) carbon
    C_2      acetone     Planar tricoordinated (sp2) carbon
    C_3      c2h6        Tetrahedral (sp3) carbon
    C_R      c4h6        Resonant, variable bond order (sp2) carbon.
    Cl       socl2       Univalent chlorine
    F_       sof2ncl     Univalent fluorine
    Ge3      geh3ogeh3   Tetrahedral (sp3) germanium
    H_       h2o         Normal, non-bridging hydrogen
    H_b      b2h5nme2    Bridging hydrogen, for use in boranes
                         (NOT SUITABLE FOR H-BONDS!)
    I_       bi3         Univalent iodine
    N_1      ch3cn       Monocoordinated (sp) nitrogen, triple bond
    N_2      ch3n2ch3    Dicoordinated (sp2) nitrogen, single-double bond
    N_3      ch3nh2      Amine (sp3) nitrogen, three single bonds
    N_3+4    b2h5nme2    Charged amine (sp3) nitrogen, four single bonds
                         (THIS IS NOT A STANDARD UFF TYPE!)
    N_R      c5h5n       Resonant planar (sp2) nitrogen, for use in
                         aromatics and amides. For amides, use 1.41 bond
                         order!
    O_1      co          Special "co" type, one triple bond.
    O_2      acetone     One-coordinated (sp2) oxygen, one double bond.
    O_3      h2o         Two-coordinated (sp3) oxygen, two single bonds
    O_3_z    sih3osih3   Special two-coordinated oxygen, for use in
                         Si-O bonds
    O_R      c4h4o       Resonant planar (sp2) oxygen, also for use in
                         nitro groups and such.
    P_3+3    ph3         Pyramidal (sp3) phosphorus, three single bonds
    P_3+5    p4o7        Tetrahedral hypervalent phosphorus
    P_3+q    bh3ph3      Dative tetrahedral (sp3) phosphorus, watch for
                         the bond order!
    S_3+2    ch3sch3     Bent two-coordinated sulfur (sp3), two single bonds
    S_3+4    socl2       Pyramidal three-coordinated hypervalent sulfur
    S_3+6    so2cl2      Tetrahedral four-coordinated hypervalent sulfur
    Se3+2    h2se        Bent two-coordinated (sp3) selenium
    Si3      si4o4h8     Tetrahedral silicon

Additionally, parameter sets for the following atom types are believed
be complete, and may be expected produce results identical to the published
UFF data: Li, Na, K_, Rb, Cs (Note that UFF does not specify atomic charges
- it is your responsibility to assign those, if charges are needed!)

For the remaining atom types, UFF definition [1] relies on an unpublished
set of electronegativities [2]. In deMon, these values were replaced by
Pauling electronegativities, scaled to fit published UFF electronegativities.
This can be expected to produce small deviations in bond lengths and bond
angles, compared to published UFF results.

If you wish to use other parameters, you should copy the general_db file, and rename it. This new file can also be placed outside of $AMSHOME/atomicdata/UFF.

Elements file

The elements_db file holds all the elements known to UFF. Keep in mind that these are not the MMAtomTypes, but pure chemical elements. The table contains for every element: atomic number, symbol, minimal valence number, maximum valence number, minimal bond order, maximal bond order. The data in the elements_db is mainly used for cleaning up the Pauling bond orders guessed by UFF, and will probably not need to be modified.

MM Atom Types file

The mmatomtypes_db file contains the matching rules for assigning MM atom types to chemical elements, based on their valence number, and the number of neighbor (bonded) atoms. The current implementation of UFF is limited to 6 MM atom types per element. The table contains for every MM atom type: Number of the element it belongs to, the i-th type of this element, the valence number corresponding to this MM atom type, number of neighbors this MM atom type has, the name of this MM atom type. The naming convention follows the original UFF paper [1]:

A five-character mnemonic label is used to describe the atom types. The first two characters correspond to the chemical symbol; an underscore appears in the second column if the symbol has one letter (e.g., N_ is nitrogen, Rh is rhodium). The third column describes the hybridization or geometry: 1 = linear, 2 = trigonal, R = resonant, 3 = tetrahedral, 4 = square planar, 5 = trigonal bipyramidal, 6 = octahedral. Thus N_3 is tetrahedral nitrogen, while Rh6 is octahedral rhodium. The forth and fifth columns are used as indicators of alternate parameters such as formal oxidation state: Rh6+3 indicates an octahedral rhodium formally in the +3 oxidation state, e.g., Rh(NH3)_6^3+. H_b indicates a bridging hydrogen as in B2Hs O_3_z is an oxygen suited for framework oxygens of a zeolite lattice. P_3_q is a tetrahedral four-coordinate phosphorus used to describe organo-metallic coordinated phosphines.

You can copy the mmatomtypes_db and change it if you need to modify the atom typing behavior of UFF.

AMBER parameters

If you want to use a non-standard forcefield you can specify the ForceFieldFile.

Currently two formats are supported for non-uff forcefields. The first is the ADF/SCM related “.ff” format. The other is the much more widely used AMBER “.dat” format.

AMBER forcefield file

The format of the AMBER “.dat” files is described here http://ambermd.org/FileFormats.php#parm.dat. Currently the following features are not supported

  • Parameter modification files

  • The torsions have extra info about 1-4 scaling for nonbonded terms, ignored

  • AMBER term 8: INPUT FOR H-BOND 10-12 POTENTIAL PARAMETERS

  • AMBER term 9: INPUT FOR EQUIVALENCING ATOM SYMBOLS FOR THE NON-BONDED 6-12 POTENTIAL PARAMETERS

SCM forcefield file

An example of this is $AFDHOME/atomicdata/ForceField/amber95.ff. It has a flexible format and is fully self documented. It is not used outside of the ADF/SCM context.

The file must contain the force field parameters and the MM potential for each kind of MM interaction. Although predefined force field files (AMBER and SYBYL) are provided, these force field files can be customized. For example, one may want to change a particular force constant, or one may need to introduce a new atom type, for instance a transition metal. This section provides a detailed description of the force field file.

Format

The force field file is keyword driven with each key block defining parameters for each molecular mechanics interaction type such as bond types, angle types, torsion types, …etc. The key block begins with the keyword, such as “BONDS”.

The lines that actually contain the parameters are sandwiched between two lines that contain “========”. The lines between the keyword and the first line containing “========” are not read by the program. These lines are intended for the user to define the columns as shown below. There can be as many lines between the keyword and the first ‘=====’ as needed.

Example:

BONDS
Atoms  pot  K             ro    Notes
i - j  type (kcal/molA^2) (Ang)
================================
...
CA  CA 1    938.0         1.400 amber95
CT  CT 1    620.0         1.526 amber95
...
===============================

Force Field Atom types

The force field atom types are the labels given to each atom in the real system, which determine all interaction parameters involving that atom.

There are some limitations to the force field label types that the user can specify:

  • Labels can be a maximum of four characters long, with no spaces.

  • The atom types are case sensitive.

  • They can contain letters, numbers and other characters except ‘,’ ‘.’ or ‘=’ and tabs.

Example of atom types that are not compatible with the program: C.3, C 3, C=3, C_sp3, *

Examples of atom types that are correct: C_3, C3, Csp3, and C*

Wild Cards

Wild cards can be specified with the asterisk, ‘*’. Wild cards can be specified for angles, torsions and out-of-plane bends. Please refer to the specific sections for the limitations.

CAUTION: When using wild cards, place the wild cards at the beginning of the data section, beginning with the parameters with the most wild cards and ending with those that posses the least wild cards.

Example:

C_3

100.310

111.000

two wild cards

C_3

C_3

100.310

111.000

one wild card

C_2

C_3

C_3

100.310

111.000

no wild cards

If this ordering is not followed, then the wild card parameters will over-ride the specific parameters.

Miscellaneous Notes

  • Do not remove the ‘======’ separator lines.

  • Units are in kcal/mol, Angstroms, degrees, amu unless otherwise specified

  • Sections can be in any order; i.e. BENDS can come before BONDS.

  • All keywords are case sensitive and most are in ALL-CAPS

  • Input is all free format

  • Blank lines will be ignored

  • Comment lines can be added to parameter data sections by beginning the line with the ‘#’ symbol.

Example:

H H 1.0080
HC H 1.0080
   # example of comment line denoted with # mark.
H1 H 1.0080
H2 H 1.0080

A (partial) Example File

Here we provide an example force field file to illustrate the format of the file. Only a limited number of parameters are included. A detailed description of each section of the force field file is provided in the next section.

FORCE_FIELD_SETTINGS
================================
ELSTAT_1-4_SCALE          1.0000
VDW_1-4_SCALE             1.0000
VDW_DEFAULT_POTENTIAL     1      (1:6-12 2:exp-6 3:exp purely repulsive)
DIELECTRIC_CONSTANT       1.000
================================

MASSES & ATOM LABELS
-----------------------------------
force_field atomic
atom_type   symbol mass    NOTES
==========================
C_3         C      12.0110 sp3 hybridized carbon
C_2         C      12.0110 sp2 hybridized carbon
C_1         C      12.0110 sp1 hybridized carbon
C_ar        C      12.0110 aromatic
N_3         N      14.0070
N_2         N      14.0070
O_3         O      15.9990
==========================

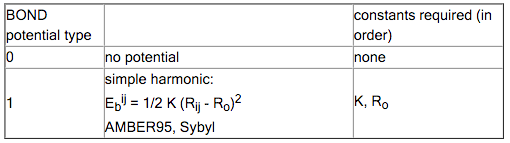

BONDS Ebond = 0.5*K(r-ro)**2
--------------------------------------
Atoms   pot
i - j   type K       R     NOTES
==========================
C_2 C_2 1    1340.00 1.335 WHITE_77
C_2 C_3 1     639.00 1.501 WHITE_75
C_3 C_3 1     633.60 1.540 *
C_3 N_2 1     760.20 1.440 *
==========================

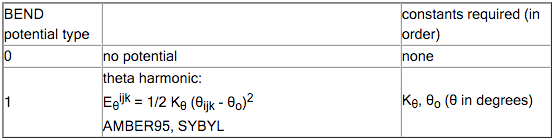

BENDS Ebend = 0.5*k(a-ao)^2
------------------------------------
Atoms           pot
i - j - k       type  K      theta  NOTES
===================================
*    C_2  *     1      78.79 120.00 WHITE_77
*    C_3  *     1      65.66 109.50 WHITE_77
*    C_ar *     1      78.79 120.00 *
C_ar C_2  N_2   1     131.31 120.00 *
C_3  C_3  C_ar  1      78.79 109.50 *
===================================

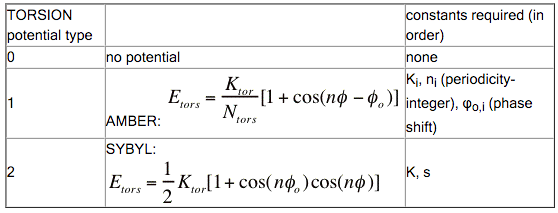

TORSIONS
--------------------------------------------
Atoms               pot
i - j - k - l       type  k       per         NOTES
============================================
*    C_2  C_2  *    2     12.5000 -2.0
*    C_1  C_3  *    2      0.0000  1.0
C_2  C_2  C_3  *    2      0.1260 -3.0
C_3  C_2  C_3  *    2      0.1260  3.0
H    C_2  C_3  *    2      0.2740  3.0
*    C_ar C_ar C_ar 2      2.3500 -2.0
*    C_2  C_3  C_2  2      0.1260  3.0
*    C_2  C_3  C_3  2      0.1260  3.0
C_3  C_3  C_3  C_3  0      0.5000  3.0       no torsion potential
C_2  C_2  C_3  C_2  2      0.1260 -3.0
C_3  C_3  N_2  C_2  1      0.5000  4   180.0 This and the next 3 lines
&                          0.1500  3   180.0 are part of a multi-component
&                          0.5300  1     0.0 Fourier potential
C_3  C_3  C_2  N_2  1      0.1000  4     0.0
&                          0.0700  2     0.0 '&' is a continuation marker
============================================

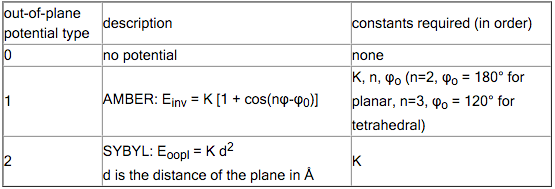

OUT-OF-PLANE
-------------------------
Atoms           pot
i - j - k - l   type  K   NOTES
=========================
*   *   C_2 *   2     480 TRIPOS_85
*   *   N_2 *   2     120 TRIPOS_85
H   H   N_2 C_3 2     120 TRIPOS_85
C_3 H   N_2 *   2     120 TRIPOS_85
=========================

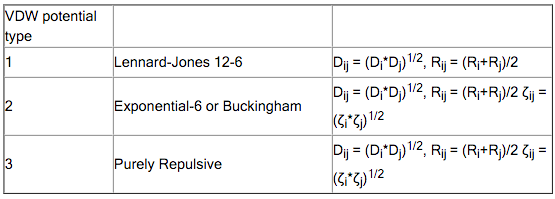

VAN DER WAALS
atom(s)     Emin    Rmin    gamma NOTES
=================================
C_3         0.1070  3.4000  12.00
C_2         0.1070  3.4000  12.00
C_ca        0.1070  3.4000  12.00
C_ar        0.1070  3.4000  12.00
C_1         0.1070  3.4000  12.00
N_3         0.0950  3.1000  12.00
N_2         0.0950  3.1000  12.00
N_2 - N_2 2 0.0950  3.1000  12.00 purely repulsive potential for this pair
=================================

type  charge(e)  NOTES
================
OW    -0.82      TIP3P water model
HW     0.41      TIP3P water model
================

Section by Section Description

FORCE_FIELD_SETTINGS

Key block (required) This key block specifies various global options for the force field file, mostly concerned with the treatment of the non-bonded potentials.

FORCE_FIELD_SETTINGS
================================
ELSTAT_1-4_SCALE           0.5
VDW_1-4_SCALE              0.5
VDW_DEFAULT_POTENTIAL      1     (1:6-12)
DIELECTRIC_CONSTANT        1.000
================================
ELSTAT_1-4_SCALE & VDW_1-4_SCALE

Most force fields scale the non-bonded interactions by a factor of 0.5 if the atoms are the terminal atoms of a defined torsion. This scaling factor, which is termed the 1-4 scaling factor, can also be different for the electrostatic potential and for the Van der Waals potentials and thus they are separately defined in the input.

VDW_DEFAULT_POTENTIAL

Only the Lennard Jones potential (option 1) is implemented. The Lennard Jones interaction energy between atoms A and B is defined as a function of the distance between atoms A and B \((R^{AB})\). The two parameters are \(D_0\) and \(R_0\).

\[E_{VDW}(R^{AB}) = D_0 \bigg[ \Big(\frac{R_0}{R^{AB}}\Big)^{12} - 2 \Big(\frac{R_0}{R^{AB}}\Big)^6\bigg]\]
DIELECTRIC_CONSTANT

This option is ignored.

BONDS

Key block (required) This key block specifies the potential type and parameters for each kind of MM bond stretching interaction. An example is given below.

BONDS
Atoms pot   K             ro    NOTES
i - j type  (kcal/molA^2) (Ang)
===============================
CA CA 1     938.0         1.400 amber95
CT CT 1     620.0         1.526 amber95
HC Zr 0       0.0               no potential found
===============================

The first two columns are the atom types (up to four characters long) and the third column is an integer specifying the potential type.

_images/sbsd_table2.png
BENDS

Key block (required) This key block specifies the potential type and parameters for each kind of MM bond angle interaction. An example is given below.

BENDS
Atoms     pot   k          ao     NOTES
i - j - k type  (kcal/mol) deg
=================================
*  CA *   1      70.00     120.00 example of wild card
*  CA CA  1     126.00     120.00
CA CA N2  1     140.00     120.10 amber95 N2-CA-CM
CA CA CT  1     140.00     120.00 amber95
=================================

The first three columns specify the atom types and the fourth column is an integer specifying the potential type. The angle bend potential types are described in the table below with the additional constants required.

_images/sbsd_table3.png

Notice that wild cards can be specified for both terminal positions of the bend or just one as in the example above. It is important that the parameters be ordered from the least specific (those containing the most wild cards) to the most specific parameters.

TORSIONS

Key block (required) This key block specifies the potential type and parameters for each kind of MM bond torsion interaction. For the bond stretching and bending potentials, only one potential has to date been implemented since both AMBER and SYBYL both use simple harmonic potentials. However, AMBER and SYBYL use different functional forms to represent the torsion potentials, each with their own set of parameters. The AMBER and SYBYL torsional potentials used in this program are defined in the table below.

_images/sbsd_table4.png

Notice that the two potentials have a different number of parameters. For example, when the program reads ‘potential type’ number 1, it will expect three parameters Ki , ni , \(\phi\)o,i . Further notice that the AMBER torsional potential is a sum of Fourier components (this is what the index i refers to).

Below is an example of the TORSIONS key block, made up of AMBER force field types.

TORSIONS
Atoms                   pot            per.  shift
i - j - k - l           type  k        n     to       NOTES
===================================================
*     CV    NB    *     1     2.4000   2     180.0    JCC,7,(1986),230
*     CW    NA    *     1     1.5000   2     180.0    JCC,7,(1986),230
&                             0.1000   3       0.0
C     N     CT    C     1     0.2000   2     180.0
N     CT    C     N     1     0.4000   4     180.0
&                             1.3500   2     180.0
&                             0.7500   1     180.0
CT    CT    N     C     1     0.5000   4     180.0
===================================================

Most AMBER torsion potentials are not specific to all four atoms i-j-k-l, but only on the central two, j-k. Wild cards are specified with the ‘*’ symbol as illustrated above. Again, the ordering is important. The parameters should be ordered from least specific (those containing the most wild cards) to most specific. The AMBER torsion potential can be composed of more than one Fourier component for a single torsion potential. Additional Fourier components are specified with the ‘&’ continuation symbol as in the example above. At the moment, up to 6 Fourier components are allowed. Notice that the individual components need not be specified in any particular order. In the above example key block, there are only 5 torsional potentials defined, not 8. Two of the potentials are composed of more than one Fourier component as indicated by the ‘&’ continuation line. Below is an example of the TORSIONS key block for the SYBYL force field. Notice that the potential types are all ‘2’. There are fewer parameters and no multi component potentials. Also, some potentials are defined with two or only one wild card.

TORSIONS
-------------------------------------------
Atoms                   pot
i - j - k - l           type  k        per      NOTES
===============================================
*     C_ar  S_3   *     2     1.0000    3.0     *
*     S_3   S_3   *     2     0.0000    2.0     EXP
C_2   C_2   C_3   *     2     0.1260   -3.0     WHITE_77
C_3   C_2   C_3   *     2     0.1260    3.0     WHITE_77
H     C_2   C_3   *     2     0.2740    3.0     *
*     C_ar  C_ar  C_ar  2     2.3500   -2.0     *
*     C_2   C_3   C_2   2     0.1260    3.0     WHITE_77
*     C_2   C_3   C_3   2     0.1260    3.0     WHITE_77
*     C_2   C_3   H     2     0.2740    3.0     WHITE_77
*     C_3   C_3   H     2     0.3200    3.0     MC_88
O_2   C_2   C_3   C_3   2     0.7000   -3.0     JL_ES_
O_co  C_2   C_3   C_3   2     0.7000   -3.0     MAC_1
C_2   C_3   C_3   C_2   2     0.0400    3.0     WHITE_77
C_2   C_3   C_3   C_3   2     0.1260    3.0     WHITE_77
===============================================

One can also mix different potential types within the same force field file, as illustrated below. In this example, three are three potentials. The first two are SYBYL type potentials whereas the last one is a multi component AMBER potential.

H  C_2   C_3   *     2  0.2740   3.0
*  C_ar  C_ar  C_ar  2  2.3500   -2.0
N  CT    C     N     1  0.4000   4     180.0
&                       1.3500   2     180.0
&                       0.7500   1     180.0
OUT-OF_PLANE

Key block (required) This key block specifies the potential type and parameters for each kind of MM out of plane bend. This potential is sometimes referred to as the inversion potential or improper torsions (depending on the force field). The potential types currently supported are provided in the table below.

_images/sbsd_table5.png

An example of the key block for the AMBER type potentials is given below. It is important to realize that the atom k is the atom k is the central atom. (We have adopted the somewhat odd standard of AMBER in this respect).

OUT-OF-PLANE
--------------------------
Atoms                   pot
i - j - k - l           type  K       to     NOTES
============================================
*     *     CA    H4    1      1.10   180.0  bsd.on C6H6 nmodes
*     *     CA    H5    1      1.10   180.0  bsd.on C6H6 nmodes
*     O2    C     O2    1     10.50   180.0  JCC,7,(1986),230
*     N2    CA    N2    1     10.50   180.0  JCC,7,(1986),230
*     CT    N     CT    1      1.00   180.0  JCC,7,(1986),230
CK    CB    N*    CT    1      1.00   180.0
============================================
VAN DER WAALS

Key block (required) This key block specifies the potential type and parameters for each kind of MM van der Waals interaction between two atoms. A sample key block is shown below:

atom(s) type  emin   rmin     alpha     NOTES
====================================
CA          -.0860   3.81600  12.00     amber95
HA          -.0150   2.91800  12.00     amber95
Ni - HA  2  -.0480   2.7      12.00     NOTE potential type
Ni - CA  D  -.0480   2.7      12.00     default potential
====================================

The van der Waals key block is somewhat different than the previous key blocks, because generally not every atom pair is defined with its own parameters. Rather, the parameters are assigned on a per atom basis and then special combination rules are used to construct the parameters for each atom pair combination. For this reason, the type is defined separately in the FORCE_FIELD_SETTINGS key block, although currently only the Lennard-Jones 6-12 potential is implement, although currently only the Lennard-Jones 6-12 potential is implemented

For each type of van der Waals interaction, the program first scans the key block for pair specific parameters. The three sample lines below specify pair-specific potentials. The two atom types must be separated by a hyphen with spaces between the hyphen and the atom type. Following the specification of the atom pair, the potential type is defined. If D or d is specified here, then this means to use the default potential type. Following the potential type are the parameters needed for that potential type (see above table).

CA - CA  1  0.0860   3.81600  12.00 amber95
Ni - HA  0
Ni - CA  D  0.0480   2.7      12.00 default potential type

If a pair specific parameter can’t be found, then the program looks for individual atom parameters corresponding to each of the atom types in the pair. The pair specific parameters are then constructed from combination of the two individual atom parameters using the following combination rules:

_images/sbsd_table7.png

When individual atom parameters are not used, no potential type is specified since the default potential type is always used. An example is given below.

CA 0.0860   3.81600  12.00 amber95
HA 0.0150   2.91800  12.00 amber95

The ability to define pair specific parameters is especially useful for those force fields that have different combination rules than used in the program. For example, Jorgensen’s TIP3P water force field uses geometric averages for both Dij and Rij .

MASSES & ATOM LABELS

Key block (required) This key block specifies the default masses for each MM atom type and the element label for each MM atom type. The masses are not used by the engine.

A sample key block is shown below:

MASSES & ATOM LABELS
=====================================
Ni             Ni             58.70
CM             C              12.011
CA             C              12.011
CT             C              12.011
HC             H               1.0079
HA             H               1.0079
=====================================

The first column is the MM atom type, the second is the corresponding atom element and the third column is the mass of the atom type. The atoms do not have to be specified in any particular order.

CHARGES

Key block (optional) This key block specifies the parameters for the charges on the atoms by atom type. NOTE: Charges can also be specified on a per atom basis in the System block of the AMS input file.

CHARGES
atoms       initial
label       charge
========================
OW          -0.8
HW           0.4
========================

APPLE&P parameters

APPLE&P parameters are generated for a given system and written to a jobname.ff file by AMSinput. The format of this file is similar to that used by the WMI-MD program and consists of seven sections, in this order: repulsion/dispersion (RD) types, non-default RD cross terms, bonds, valence angles (bends), torsions, impropers, and lone pairs (LPs). A line beginning with an asterisk character is a comment and is ignored. Unless otherwise specified all parameters are in the units of electron, kcal/mol, Angstrom, radian and combinations thereof. An RD type name is case-sensitive and it is checked against the atom type specified by the atom’s Forcefield.Type suffix in the System%Atoms block.

Example force-field file for water:

* Repulsion/dispersion types
3
 Hw          0.00    0.0000      0.00   0.5537  0.0000
 Ow     880783.40    0.0000    851.26   0.0000  1.0425
 Lp          0.00    0.0000      0.00  -1.1074  0.0000
* Non-default cross terms
 Hw  Ow       0.00    0.0000      0.00
 Hw  Lp       0.00    0.0000      0.00
 Ow  Lp       0.00    0.0000      0.00
!
* Bond potentials
3
 999.00    0.9572    0.9572   T   Ow    Hw
 999.00    1.5140    1.5140   T   Hw    Hw
   0.00    0.2381    0.2381   T   Ow    Lp
* Bend potentials
1
 100.00     104.52    F   Hw   Ow   Hw
* Dihedral potentials (do not make sense for water; provided for illustration)
1
 3  0.00 0.00 20.00 0.00 0.00 0.00   Hw   Ow   Ow   Hw
* Improper/out-of-plane potentials (do not make sense for water; provided for illustration)
1
 20.00   Hw   Ow   Hw   Hw
* Lone pair definitions
1
* RD     A       B       C    type   I    J    K
  3     0.5   -0.2381  0.00    1     1    2    1

Section Description

Repulsion/dispersion types

The block begins with the number of RD types followed by the specified number of lines, one per RD type. Each line begins with the RD type name followed by three dispersion parameters (A’, B’, and C’), atomic charge and polarizability. The (A’, B’, C’) triplet translates to the (A, B, C, D) quartet of the dispersion part of APPLE&P potentials as follows:

  • if B’ is zero then the dispersion potential is converted to pure Lennard-Jones with C = C’ and D = A’.

  • if the B’ parameter non-zero then the A’, B’, and C’ parameters translate directly to A, B, and C, while D is set to 0.00005*(12/B’)12.

The atomic charge specified does not include that of the LPs belonging to the atom. In the water example above, the oxygen atom’s charge is carried by its lone pair Lp, so the atomic value is set to zero while the Lp’s value is set to -1.1074 to compensate that of the two hydrogen atoms.

Non-default RD cross terms

By default, the cross-term RD parameters are computed from the values in the previous section. For the pure Lennard-Jones (B’ = 0), they are computed as a geometric mean of the corresponding per-type values. For the mixed Buckingham-LJ potential, the expressions are more complicated1. Since the A’ parameter has different units in these two cases, then by default there is no dispersion interaction between them. In this case, one should specify the corresponding values in this block. Each line begins with the names of the RD types followed by a (A’, B’, C’) triplet, similar to the previous block. The block ends with line containing a single exclamation mark.

Bond potentials

The block begins with the number of bond types followed by the specified number of lines, one per bond type. The parameters are: the force constant, equilibrium distance, constrained distance, constraint flag (T or F), followed by the two RD type names defining the bond. The constrained distance and the constraint flag are currently not used by AMS.

Bend potentials

The block begins with the number of bend types followed by the specified number of lines, one per bend type. The parameters are: the force constant, equilibrium angle in degrees, constraint flag (T or F), followed by the three RD type names defining the angle. The constraint flag is currently not used.

Dihedral potentials

The block begins with the number of dihedral types followed by the specified number of lines, one per dihedral type. The parameters are: the number of terms N in the cyclic sum, up to twelve force constant (only the first N will be used), followed by the four RD type names defining the dihedral angle.

Improper/out-of-plane potentials

The block begins with the number of improper types followed by the specified number of lines, one per improper type. Each line contains a single parameter, the force constant, followed by the four RD types defining the OOP angle. The second RD type name corresponds to the central atom.

Lone pair definitions

The block begins with the number of LP types followed by the specified number of lines, one per LP type. The parameters are: index of RD type corresponding to the LP in the first section, three real parameters (A, B, C), LP type, indices (I, J, K) of the RD types of the atoms used to determine coordinates of the LP(s). The number and the position of the LPs is determined by the its type while the charge and the dispersion parameters are defined by its RD type. A lone pair is a dummy atom that exist only when computing non-bonded (electrostatic and dispersion) interactions and it does not contribute to the bonded interactions in any way. It does not need to (and cannot) be specified in the Atoms block. For each valence angle (ijk) of the RD type I, J, and K, respectively, one or two LPs are created, depending on the type. The position of the LP is fixed with respect to the atoms, thus any force acting on the LP is effectively projected on those atoms.

Currently, there are two LP types defined in AMS: type 1 and type 2. Type 1 is a single LP attached to atom j, lying in the (ijk) plane at the distance abs(B) on the line connecting atom j with the point X on the (ik) line. The parameters A defines the ratio between distances R(iX) and R(ik). Thus, if A=0.5 (a typical value) the type 1 lone pair lies on the median line of the ijk triangle. If B is less than zero then the LP is inside the triangle, otherwise it’s outside. For type 2, two LPs are added for each angle: one above the (ijk) plane and one below it. The parameter C defines the distance from the LP to the plane and B defines the distance between atom j and the projection of the LPs onto the (ijk) plane.

1
  1. Borodin, Polarizable Force Field Development and Molecular Dynamics Simulations of Ionic Liquids, J. Phys. Chem. B 113, 11463–11478 (2009)
