ADF Optimization and Vibrational Analysis of Formaldehyde¶

Requires: AMS2026 or later

Broadened IR spectrum of optimized formaldehyde.

Calculation¶

Formaldehyde was built from the SMILES string C=O, symmetrized, and optimized as a neutral closed-shell molecule. The optimized structure has C(2V) symmetry. ADF used PBE-D3(BJ), the all-electron DZP basis, and default numerical and SCF settings. Harmonic normal modes and IR intensities were calculated at the final optimized geometry.

Job directory: 01-run_workdir/formaldehyde_adf_pbe_dzp

Provenance: Combined ADF geometry optimization, harmonic frequencies, IR intensities, and PES-point characterization.

Optimized geometry¶

Quantity	Value	Unit
C=O	1.212143	angstrom
C-H(1)	1.115562	angstrom
C-H(2)	1.115562	angstrom
mean C-H	1.115562	angstrom
H-C-H	115.943895	degree

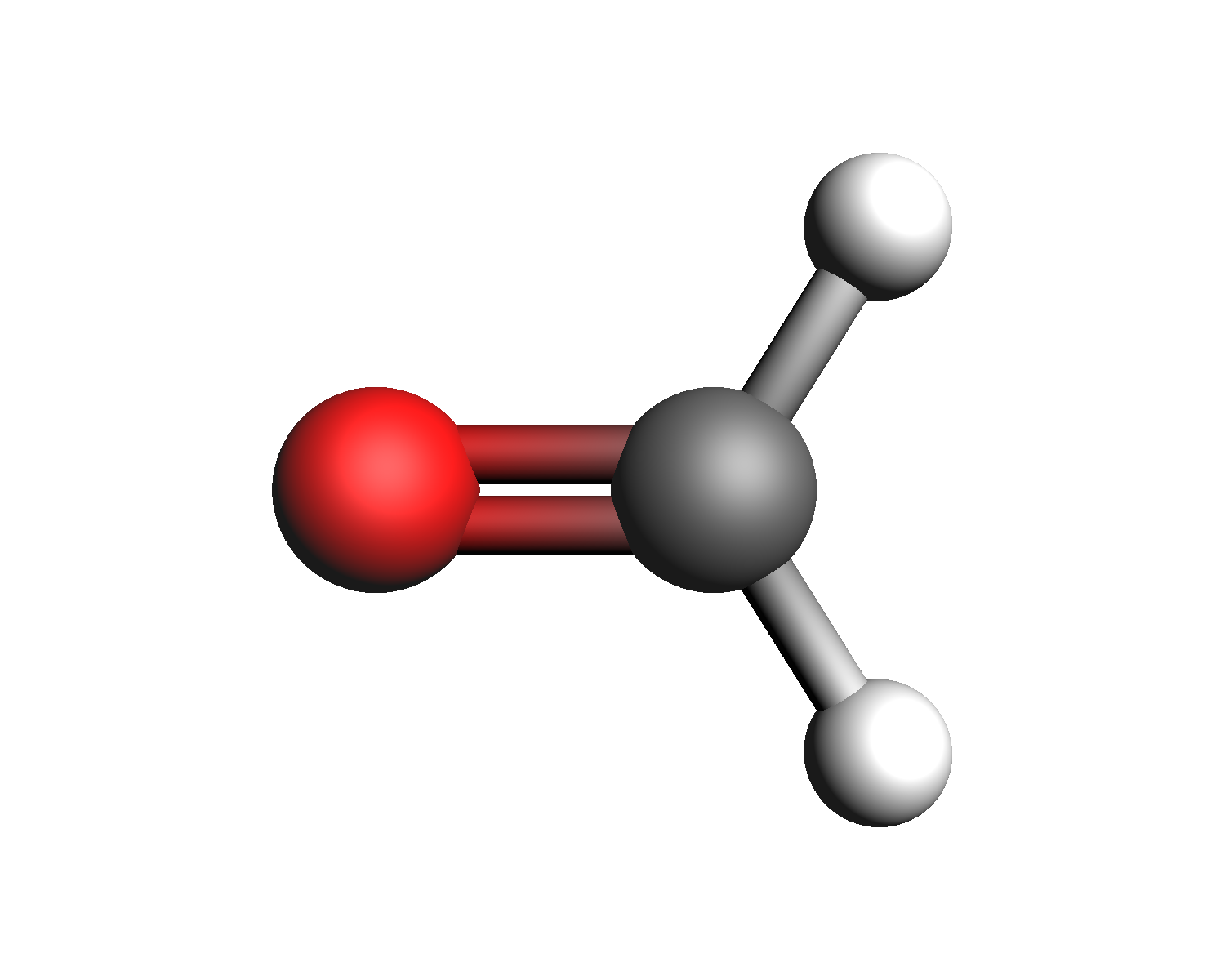

Optimized formaldehyde structure

Minimum verification¶

AMS PES-point classification: local minimum.

Negative harmonic frequencies: 0.

The optimized formaldehyde structure is a local minimum. AMS classified the PES point as local minimum, and all 6 vibrational frequencies are positive.

Vibrational modes¶

The assignments use changes in C=O distance, the two C-H distances, H-C-H angle, and displacement normal to the molecular plane. They are qualitative harmonic-mode descriptions.

Mode	Frequency (cm^-1)	IR intensity (km mol^-1)	Symmetry	Qualitative assignment
1	1157.06	4.682	B1	CH2 out-of-plane bend
2	1226.38	8.786	B2	CH2 in-plane rocking bend
3	1487.73	14.647	A1	H-C-H scissoring bend
4	1743.28	88.378	A1	C=O stretch
5	2797.14	60.003	A1	symmetric C-H stretch
6	2850.66	133.912	B2	asymmetric C-H stretch

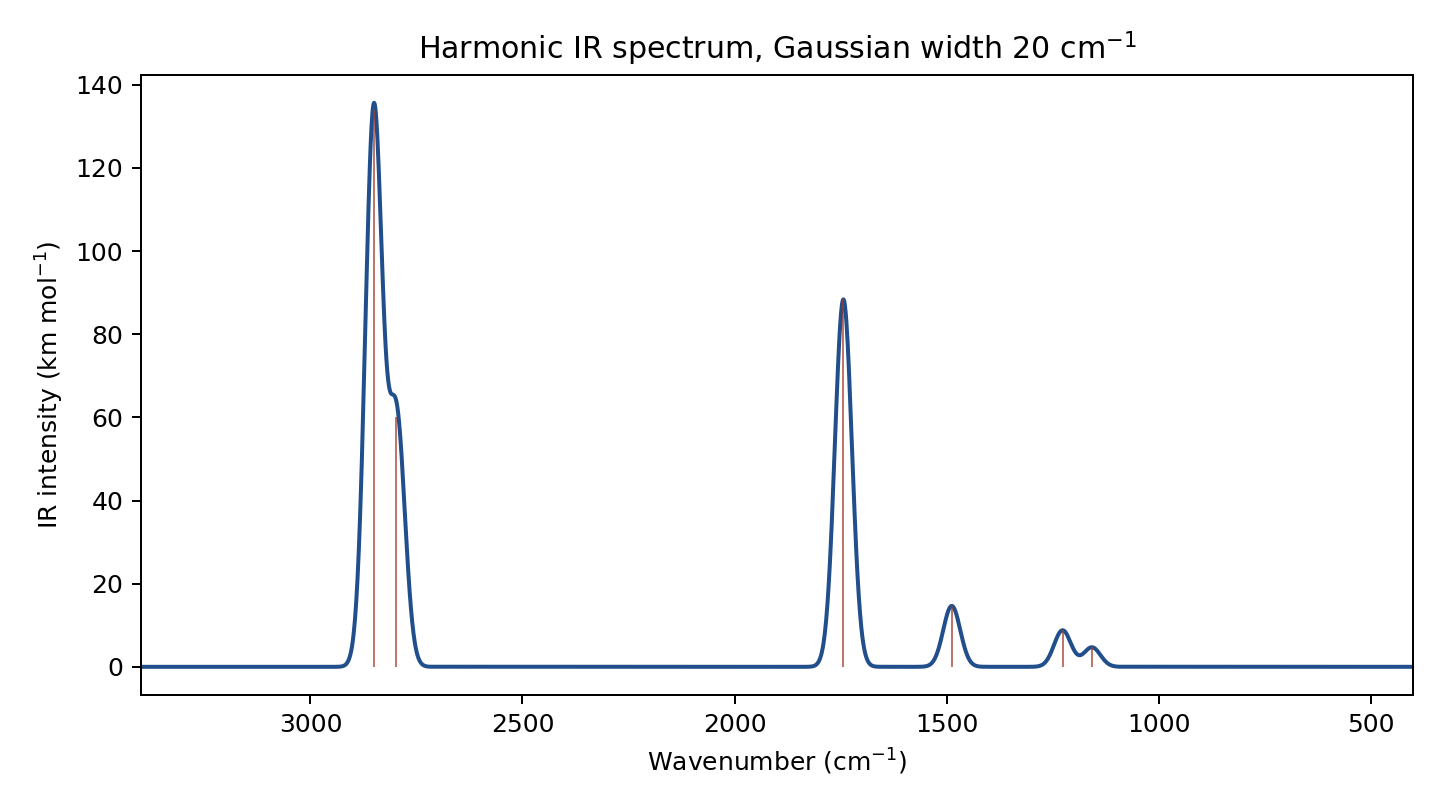

Broadened IR spectrum¶

The blue curve applies Gaussian broadening with a width of 20 cm^-1 to the calculated sticks. Red lines mark the unbroadened modes. The wavenumber axis follows the usual IR convention.

Broadened harmonic IR spectrum

Normal-mode displacement pictures¶

The maximum atomic displacement in each outer structure is 0.25 angstrom. All views use along_pca3.

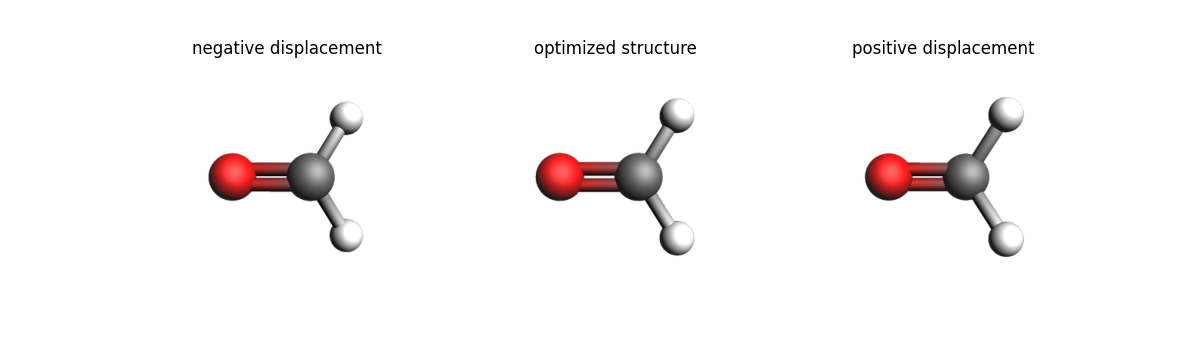

Mode 1: 1157.06 cm^-1, B1¶

Assignment: CH2 out-of-plane bend. The left and right structures use equal displacements along the normal coordinate.

Mode 1 displacement grid

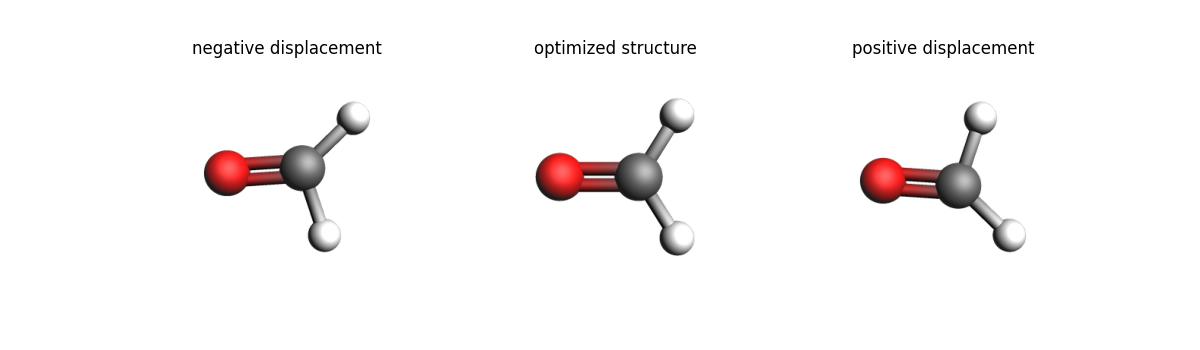

Mode 2: 1226.38 cm^-1, B2¶

Assignment: CH2 in-plane rocking bend. The left and right structures use equal displacements along the normal coordinate.

Mode 2 displacement grid

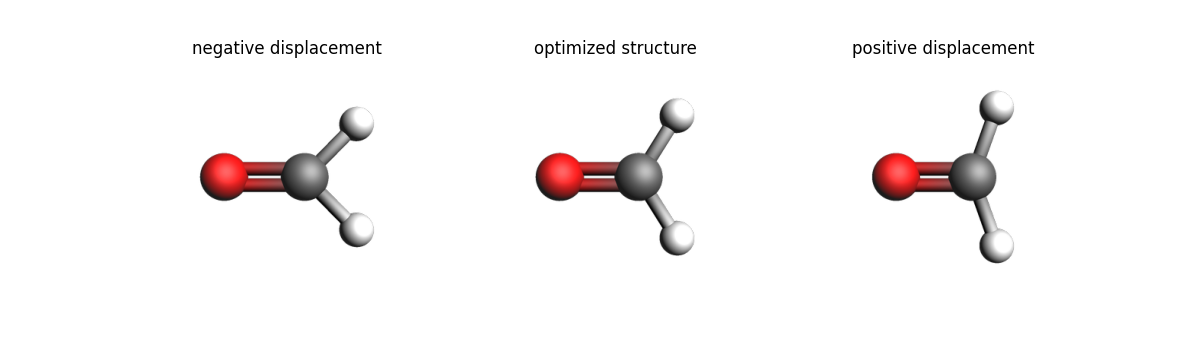

Mode 3: 1487.73 cm^-1, A1¶

Assignment: H-C-H scissoring bend. The left and right structures use equal displacements along the normal coordinate.

Mode 3 displacement grid

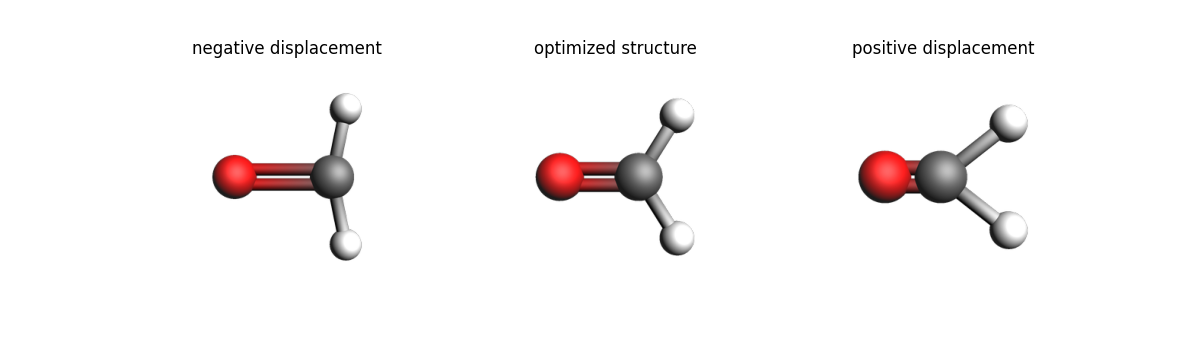

Mode 4: 1743.28 cm^-1, A1¶

Assignment: C=O stretch. The left and right structures use equal displacements along the normal coordinate.

Mode 4 displacement grid

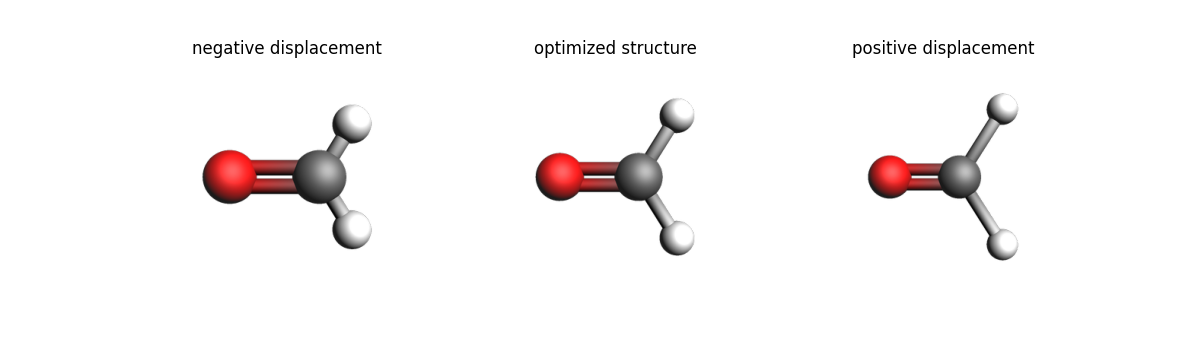

Mode 5: 2797.14 cm^-1, A1¶

Assignment: symmetric C-H stretch. The left and right structures use equal displacements along the normal coordinate.

Mode 5 displacement grid

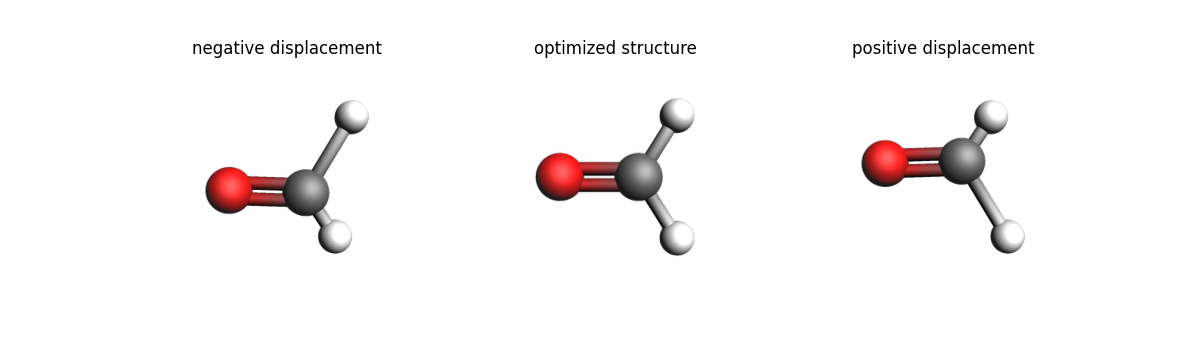

Mode 6: 2850.66 cm^-1, B2¶

Assignment: asymmetric C-H stretch. The left and right structures use equal displacements along the normal coordinate.

Mode 6 displacement grid

AMS input¶

Properties
  NormalModes yes
  PESPointCharacter yes
End

Task GeometryOptimization

System
  Atoms
              C       0.0000000000       0.0000000000       0.0337596501
              O       0.0000000000       0.0000000000      -1.1856950809
              H       0.0000000000       0.9391319492       0.5759677154
              H       0.0000000000      -0.9391319492       0.5759677154
  End
  BondOrders
     1 2 2.0
     1 3 1.0
     1 4 1.0
  End
End

Engine adf
  Basis
    Core None
    Type DZP
  End
  XC
    Dispersion GRIMME3 BJDAMP
    GGA PBE
  End
EndEngine

Conclusion¶

The optimized formaldehyde structure is a local minimum. AMS classified the PES point as local minimum, and all 6 vibrational frequencies are positive. The optimized bond metrics are C=O 1.212143 angstrom, mean C-H 1.115562 angstrom, and H-C-H 115.9439 degrees.

Prompts and Python scripts¶

report.py

#!/usr/bin/env amspython
from __future__ import annotations

from pathlib import Path
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from scm.plams import AMSJob, plot_image_grid, view


ROOT = Path(__file__).resolve().parent
TABLES = ROOT / "tables"
FIGURES = ROOT / "figures"
JOB_NAME = "formaldehyde_adf_pbe_dzp"


def latest_job_path() -> Path:
    workdirs = [path for path in ROOT.glob("01-run_workdir*") if path.is_dir()]
    if not workdirs:
        raise FileNotFoundError("No 01-run_workdir directory was found")
    latest = max(workdirs, key=lambda path: path.stat().st_mtime)
    job_path = latest / JOB_NAME
    if not job_path.is_dir():
        raise FileNotFoundError(f"Expected AMS job directory: {job_path}")
    return job_path


def atom_indices(system) -> tuple[int, int, list[int]]:
    carbon = [i for i, atom in enumerate(system.atoms) if atom.symbol == "C"]
    oxygen = [i for i, atom in enumerate(system.atoms) if atom.symbol == "O"]
    hydrogens = [i for i, atom in enumerate(system.atoms) if atom.symbol == "H"]
    if len(carbon) != 1 or len(oxygen) != 1 or len(hydrogens) != 2:
        raise ValueError("The optimized system does not have the expected CH2O composition")
    return carbon[0], oxygen[0], hydrogens


def symmetry_labels(job: AMSJob, count: int) -> list[str]:
    raw = job.results.readrkf("Vibrations", "IrReps", file="engine")
    if isinstance(raw, str):
        labels = raw.split()
    else:
        labels = [str(value).strip() for value in np.asarray(raw).reshape(-1)]
    if len(labels) != count:
        raise ValueError(f"Found {len(labels)} symmetry labels for {count} modes")
    return labels


def internal_derivatives(system, mode: np.ndarray) -> dict[str, float]:
    c_idx, o_idx, h_idx = atom_indices(system)
    step = 0.01
    plus = system.copy()
    minus = system.copy()
    plus.coords[:] = np.asarray(system.coords) + step * mode
    minus.coords[:] = np.asarray(system.coords) - step * mode

    def central(value_plus: float, value_minus: float) -> float:
        return (value_plus - value_minus) / (2.0 * step)

    d_co = central(plus.get_distance(c_idx, o_idx), minus.get_distance(c_idx, o_idx))
    d_ch = [
        central(plus.get_distance(c_idx, h), minus.get_distance(c_idx, h))
        for h in h_idx
    ]
    d_angle = central(
        plus.get_angle(h_idx[0], c_idx, h_idx[1], unit="degree"),
        minus.get_angle(h_idx[0], c_idx, h_idx[1], unit="degree"),
    )
    coords = np.asarray(system.coords)
    molecular_normal = np.cross(coords[o_idx] - coords[c_idx], coords[h_idx[0]] - coords[c_idx])
    molecular_normal /= np.linalg.norm(molecular_normal)
    oop = sum(abs(np.dot(mode[h] - mode[c_idx], molecular_normal)) for h in h_idx)
    return {"co": d_co, "ch1": d_ch[0], "ch2": d_ch[1], "angle": d_angle, "oop": oop}


def assign_modes(frequencies: np.ndarray, modes: np.ndarray, system) -> list[str]:
    metrics = [internal_derivatives(system, mode) for mode in modes]
    assignments = [""] * len(frequencies)
    high = [i for i, frequency in enumerate(frequencies) if frequency > 2200.0]
    low = [i for i in range(len(frequencies)) if i not in high]

    for i in high:
        same_phase = metrics[i]["ch1"] * metrics[i]["ch2"] >= 0.0
        assignments[i] = "symmetric C-H stretch" if same_phase else "asymmetric C-H stretch"

    if low:
        oop_idx = max(low, key=lambda i: metrics[i]["oop"])
        assignments[oop_idx] = "CH2 out-of-plane bend"
        remaining = [i for i in low if i != oop_idx]
        if remaining:
            co_idx = max(remaining, key=lambda i: abs(metrics[i]["co"]))
            assignments[co_idx] = "C=O stretch"
            remaining.remove(co_idx)
        if remaining:
            scissor_idx = max(remaining, key=lambda i: abs(metrics[i]["angle"]))
            assignments[scissor_idx] = "H-C-H scissoring bend"
            remaining.remove(scissor_idx)
        for i in remaining:
            assignments[i] = "CH2 in-plane rocking bend"

    return [assignment or "mixed vibration" for assignment in assignments]


def make_mode_grids(system, modes: np.ndarray) -> list[Path]:
    grid_paths: list[Path] = []
    optimized_image = FIGURES / "optimized_structure.png"
    view(
        system,
        guess_bonds=len(system.bonds) == 0,
        direction="along_pca3",
        width=500,
        height=400,
        picture_path=str(optimized_image),
    )

    for number, mode in enumerate(modes, start=1):
        max_norm = float(np.linalg.norm(mode, axis=1).max())
        scale = 0.25 / max_norm
        negative = system.copy()
        positive = system.copy()
        negative.coords[:] = np.asarray(system.coords) - scale * mode
        positive.coords[:] = np.asarray(system.coords) + scale * mode

        images = {}
        for label, structure in [
            ("negative displacement", negative),
            ("optimized structure", system),
            ("positive displacement", positive),
        ]:
            image_path = FIGURES / f"mode_{number:02d}_{label.replace(' ', '_')}.png"
            images[label] = view(
                structure,
                guess_bonds=len(structure.bonds) == 0,
                direction="along_pca3",
                width=360,
                height=300,
                picture_path=str(image_path),
            )
        grid_path = FIGURES / f"mode_{number:02d}_grid.png"
        plot_image_grid(images, rows=1, figsize=(12, 3.5), save_path=str(grid_path))
        plt.close("all")
        grid_paths.append(grid_path)
    return grid_paths


def markdown_image(path: Path, alt: str) -> str:
    return f"![{alt}]({path.relative_to(ROOT).as_posix()})"


def format_input(input_text: str) -> str:
    return f"```ams\n{input_text.rstrip()}\n```"


def main() -> None:
    TABLES.mkdir(exist_ok=True)
    FIGURES.mkdir(exist_ok=True)

    job_path = latest_job_path()
    job = AMSJob.load_external(str(job_path))
    provenance = "Combined ADF geometry optimization, harmonic frequencies, IR intensities, and PES-point characterization."

    system = job.results.get_main_system()
    symmetry_probe = system.copy()
    optimized_point_group = symmetry_probe.symmetrize_molecule(tolerance=0.05)
    frequencies = np.asarray(job.results.get_frequencies(unit="cm^-1"), dtype=float)
    intensities = np.asarray(job.results.get_ir_intensities(), dtype=float)
    modes = np.asarray(job.results.get_normal_modes(), dtype=float)
    labels = symmetry_labels(job, len(frequencies))
    assignments = assign_modes(frequencies, modes, system)

    c_idx, o_idx, h_idx = atom_indices(system)
    co_length = system.get_distance(c_idx, o_idx)
    ch_lengths = [system.get_distance(c_idx, h) for h in h_idx]
    hch_angle = system.get_angle(h_idx[0], c_idx, h_idx[1], unit="degree")

    try:
        pes_character = str(job.results.readrkf("AMSResults", "PESPointCharacter", file="engine")).strip()
    except KeyError:
        pes_character = str(job.results.readrkf("AMSResults", "PESPointCharacter", file="ams")).strip()
    imaginary = frequencies[frequencies < 0.0]
    is_minimum = len(imaginary) == 0 and "minimum" in pes_character.lower()

    frequency_table = pd.DataFrame(
        {
            "Mode": np.arange(1, len(frequencies) + 1),
            "Frequency (cm^-1)": np.round(frequencies, 2),
            "IR intensity (km mol^-1)": np.round(intensities, 3),
            "Symmetry": labels,
            "Qualitative assignment": assignments,
        }
    )
    frequency_table.to_csv(TABLES / "vibrational_modes.csv", index=False)

    geometry_table = pd.DataFrame(
        {
            "Quantity": ["C=O", "C-H(1)", "C-H(2)", "mean C-H", "H-C-H"],
            "Value": [co_length, ch_lengths[0], ch_lengths[1], np.mean(ch_lengths), hch_angle],
            "Unit": ["angstrom", "angstrom", "angstrom", "angstrom", "degree"],
        }
    )
    geometry_table.to_csv(TABLES / "optimized_geometry.csv", index=False)

    spectrum_x, spectrum_y = job.results.get_ir_spectrum(
        broadening_type="gaussian",
        broadening_width=20,
        min_x=400,
        max_x=3400,
        x_spacing=1.0,
    )
    fig, ax = plt.subplots(figsize=(8, 4.5))
    ax.plot(spectrum_x, spectrum_y, color="#214f8b", linewidth=1.6)
    ax.vlines(frequencies, 0.0, intensities, color="#a33a2b", linewidth=0.8, alpha=0.7)
    ax.set_xlim(3400, 400)
    ax.set_xlabel(r"Wavenumber (cm$^{-1}$)")
    ax.set_ylabel(r"IR intensity (km mol$^{-1}$)")
    ax.set_title("Harmonic IR spectrum, Gaussian width 20 cm$^{-1}$")
    fig.tight_layout()
    spectrum_path = FIGURES / "ir_spectrum.png"
    fig.savefig(spectrum_path, dpi=180)
    plt.close(fig)

    mode_grid_paths = make_mode_grids(system, modes)
    mode_sections = []
    for row, grid_path in zip(frequency_table.itertuples(index=False), mode_grid_paths):
        mode_sections.append(
            f"### Mode {row.Mode}: {row._1:.2f} cm^-1, {row.Symmetry}\n\n"
            f"Assignment: {row._4}. The left and right structures use equal displacements along the normal coordinate.\n\n"
            f"{markdown_image(grid_path, f'Mode {row.Mode} displacement grid')}"
        )

    if is_minimum:
        conclusion = (
            "The optimized formaldehyde structure is a local minimum. AMS classified the PES point as "
            f"{pes_character}, and all {len(frequencies)} vibrational frequencies are positive."
        )
    else:
        conclusion = (
            "The minimum test did not pass. The PES classification is "
            f"{pes_character}, and the number of negative frequencies is {len(imaginary)}."
        )

    report = f"""# ADF optimization and vibrational analysis of formaldehyde

## Calculation

Formaldehyde was built from the SMILES string `C=O`, symmetrized, and optimized as a neutral closed-shell molecule. The optimized structure has {optimized_point_group} symmetry. ADF used PBE-D3(BJ), the all-electron DZP basis, and default numerical and SCF settings. Harmonic normal modes and IR intensities were calculated at the final optimized geometry.

Job directory: `{job_path.relative_to(ROOT)}`

Provenance: {provenance}

## Optimized geometry

{geometry_table.to_markdown(index=False, floatfmt='.6f')}

{markdown_image(FIGURES / 'optimized_structure.png', 'Optimized formaldehyde structure')}

## Minimum verification

AMS PES-point classification: `{pes_character}`.

Negative harmonic frequencies: {len(imaginary)}.

{conclusion}

## Vibrational modes

The assignments use changes in C=O distance, the two C-H distances, H-C-H angle, and displacement normal to the molecular plane. They are qualitative harmonic-mode descriptions.

{frequency_table.to_markdown(index=False)}

## Broadened IR spectrum

The blue curve applies Gaussian broadening with a width of 20 cm^-1 to the calculated sticks. Red lines mark the unbroadened modes. The wavenumber axis follows the usual IR convention.

{markdown_image(spectrum_path, 'Broadened harmonic IR spectrum')}

## Normal-mode displacement pictures

The maximum atomic displacement in each outer structure is 0.25 angstrom. All views use `along_pca3`.

{chr(10).join(mode_sections)}

## AMS input

{format_input(job.get_input())}

## Conclusion

{conclusion} The optimized bond metrics are C=O {co_length:.6f} angstrom, mean C-H {np.mean(ch_lengths):.6f} angstrom, and H-C-H {hch_angle:.4f} degrees.
"""
    (ROOT / "report.md").write_text(report, encoding="utf-8")
    print(f"Wrote {ROOT / 'report.md'}")
    print(conclusion)


if __name__ == "__main__":
    main()

Original Markdown report

# ADF optimization and vibrational analysis of formaldehyde

## Calculation

Formaldehyde was built from the SMILES string `C=O`, symmetrized, and optimized as a neutral closed-shell molecule. The optimized structure has C(2V) symmetry. ADF used PBE-D3(BJ), the all-electron DZP basis, and default numerical and SCF settings. Harmonic normal modes and IR intensities were calculated at the final optimized geometry.

Job directory: `01-run_workdir/formaldehyde_adf_pbe_dzp`

Provenance: Combined ADF geometry optimization, harmonic frequencies, IR intensities, and PES-point characterization.

## Optimized geometry

| Quantity   |      Value | Unit     |
|:-----------|-----------:|:---------|
| C=O        |   1.212143 | angstrom |
| C-H(1)     |   1.115562 | angstrom |
| C-H(2)     |   1.115562 | angstrom |
| mean C-H   |   1.115562 | angstrom |
| H-C-H      | 115.943895 | degree   |

![Optimized formaldehyde structure](figures/optimized_structure.png)

## Minimum verification

AMS PES-point classification: `local minimum`.

Negative harmonic frequencies: 0.

The optimized formaldehyde structure is a local minimum. AMS classified the PES point as local minimum, and all 6 vibrational frequencies are positive.

## Vibrational modes

The assignments use changes in C=O distance, the two C-H distances, H-C-H angle, and displacement normal to the molecular plane. They are qualitative harmonic-mode descriptions.

|   Mode |   Frequency (cm^-1) |   IR intensity (km mol^-1) | Symmetry   | Qualitative assignment    |
|-------:|--------------------:|---------------------------:|:-----------|:--------------------------|
|      1 |             1157.06 |                      4.682 | B1         | CH2 out-of-plane bend     |
|      2 |             1226.38 |                      8.786 | B2         | CH2 in-plane rocking bend |
|      3 |             1487.73 |                     14.647 | A1         | H-C-H scissoring bend     |
|      4 |             1743.28 |                     88.378 | A1         | C=O stretch               |
|      5 |             2797.14 |                     60.003 | A1         | symmetric C-H stretch     |
|      6 |             2850.66 |                    133.912 | B2         | asymmetric C-H stretch    |

## Broadened IR spectrum

The blue curve applies Gaussian broadening with a width of 20 cm^-1 to the calculated sticks. Red lines mark the unbroadened modes. The wavenumber axis follows the usual IR convention.

![Broadened harmonic IR spectrum](figures/ir_spectrum.png)

## Normal-mode displacement pictures

The maximum atomic displacement in each outer structure is 0.25 angstrom. All views use `along_pca3`.

### Mode 1: 1157.06 cm^-1, B1

Assignment: CH2 out-of-plane bend. The left and right structures use equal displacements along the normal coordinate.

![Mode 1 displacement grid](figures/mode_01_grid.png)
### Mode 2: 1226.38 cm^-1, B2

Assignment: CH2 in-plane rocking bend. The left and right structures use equal displacements along the normal coordinate.

![Mode 2 displacement grid](figures/mode_02_grid.png)
### Mode 3: 1487.73 cm^-1, A1

Assignment: H-C-H scissoring bend. The left and right structures use equal displacements along the normal coordinate.

![Mode 3 displacement grid](figures/mode_03_grid.png)
### Mode 4: 1743.28 cm^-1, A1

Assignment: C=O stretch. The left and right structures use equal displacements along the normal coordinate.

![Mode 4 displacement grid](figures/mode_04_grid.png)
### Mode 5: 2797.14 cm^-1, A1

Assignment: symmetric C-H stretch. The left and right structures use equal displacements along the normal coordinate.

![Mode 5 displacement grid](figures/mode_05_grid.png)
### Mode 6: 2850.66 cm^-1, B2

Assignment: asymmetric C-H stretch. The left and right structures use equal displacements along the normal coordinate.

![Mode 6 displacement grid](figures/mode_06_grid.png)

## AMS input

```ams
Properties
  NormalModes yes
  PESPointCharacter yes
End

Task GeometryOptimization

System
  Atoms
              C       0.0000000000       0.0000000000       0.0337596501
              O       0.0000000000       0.0000000000      -1.1856950809
              H       0.0000000000       0.9391319492       0.5759677154
              H       0.0000000000      -0.9391319492       0.5759677154
  End
  BondOrders
     1 2 2.0
     1 3 1.0
     1 4 1.0
  End
End

Engine adf
  Basis
    Core None
    Type DZP
  End
  XC
    Dispersion GRIMME3 BJDAMP
    GGA PBE
  End
EndEngine
```

## Conclusion

The optimized formaldehyde structure is a local minimum. AMS classified the PES point as local minimum, and all 6 vibrational frequencies are positive. The optimized bond metrics are C=O 1.212143 angstrom, mean C-H 1.115562 angstrom, and H-C-H 115.9439 degrees.

Note on AI-generated content¶

This page was generated by a Python script. That Python script was AI-generated.

All numbers, figures, and tables are extracted or postprocessed from actual AMS calculations, and can be transparently regenerated from the provided Python scripts.

Any scientific reasoning or citations was written by AI. This page is the actual one-shot output from using the ams2026 skill with an AI coding agent.
