3.1. Settings

The Settings class provides a general purpose data container for various kinds of information that need to be stored and processed by PLAMS environment. Other PLAMS objects (like for example Job, JobManager or GridRunner) have their own Settings instances that store data defining and adjusting their behavior. The global scope Settings instance (config) is used for global settings.

It should be stressed here that there are no different types of Settings in the sense that there are no special subclasses of Settings for job settings, global settings etc. Everything is stored in the same type of object and the role of a particular Settings instance is determined only by its content.

3.1.1. Tree-like structure

The Settings class is based on the regular Python dictionary (built-in class dict, tutorial can be found here) and in many aspects works just like it:

>>> s = Settings()
>>> s['abc'] = 283
>>> s[147147] = 'some string'
>>> print(s['abc'])
283
>>> del s[147147]

The main difference is that data in Settings can be stored in multilevel fashion, whereas an ordinary dictionary is just a flat structure of key-value pairs. That means a sequence of keys can be used to store a value. In the example below s['a'] is itself a Settings instance with two key-value pairs inside:

>>> s = Settings()
>>> s['a']['b'] = 'AB'
>>> s['a']['c'] = 'AC'
>>> s['x']['y'] = 10
>>> s['x']['z'] = 13
>>> s['x']['foo'][123] = 'even deeper'
>>> s['x']['foo']['bar'] = 183
>>> print(s)
a:
  b:    AB
  c:    AC
x:
  foo:
      123:  even deeper
      bar:  183
  y:    10
  z:    13
>>> print(s['x'])
foo:
    123:    even deeper
    bar:    183
y:  10
z:  13

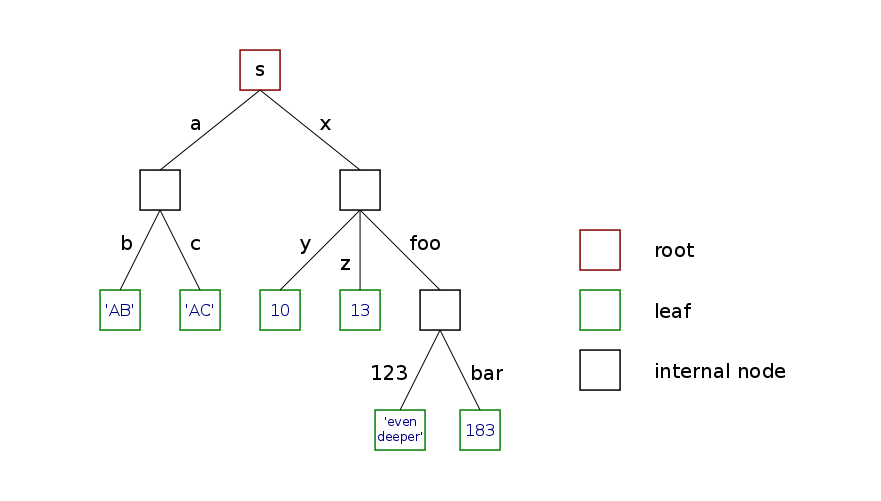

So for each key the value can be either a “proper value” (string, number, list etc.) or another Settings instance that creates a new level in the data hierarchy. That way similar information can be arranged in subgroups that can be copied, moved and updated together. It is convenient to think of a Settings object as a tree. The root of the tree is the top instance (s in the above example), “proper values” are stored in leaves (a leaf is a childless node) and internal nodes correspond to nested Settings instances (we will call them branches). Tree representation of s from the example above is illustrated on the following picture:

../_images/set_tree.png

Tree-like structure could also be achieved with regular dictionaries, but in a rather cumbersome way:

>>> d = dict()
>>> d['a'] = dict()
>>> d['a']['b'] = dict()
>>> d['a']['b']['c'] = dict()
>>> d['a']['b']['c']['d'] = 'ABCD'
===========================
>>> s = Settings()
>>> s['a']['b']['c']['d'] = 'ABCD'

In the last line of the above example all intermediate Settings instances are created and inserted automatically. Such a behavior, however, has some downsides – every time you request a key that is not present in a particular Settings instance (for example as a result of a typo), a new empty instance is created and inserted as a value of this key. This is different from dictionaries where exception is raised in such a case:

>>> d = dict()
>>> d['foo'] = 'bar'
>>> x = d['fo']
KeyError: 'fo'
===========================
>>> s = Settings()
>>> s['foo'] = 'bar'
>>> x = s['fo']

>>> print(s)
fo:            #the value here is an empty Settings instance
foo:    bar

3.1.2. Dot notation

To avoid inconvenient punctuation, keys stored in Settings can be accessed using the dot notation in addition to the usual bracket notation. In other words s.abc works as a shortcut for s['abc']. Both notations can be used interchangeably:

>>> s.a.b = 'AB'
>>> s['a'].c = 'AC'
>>> s.x['y'] = 10
>>> s['x']['z'] = 13
>>> s['x'].foo[123] = 'even deeper'
>>> s.x.foo.bar = 183
>>> print(s)
a:
  b:    AB
  c:    AC
x:
  foo:
      123:  even deeper
      bar:  183
  y:    10
  z:    13

Due to the internal limitation of the Python syntax parser, keys other than single word strings cannot work with that shortcut, for example:

>>> s.123.b.c = 12
SyntaxError: invalid syntax
>>> s.q we.r.t.y = 'aaa'
SyntaxError: invalid syntax
>>> s.5fr = True
SyntaxError: invalid syntax

In those cases one has to use the regular bracket notation:

>>> s[123].b.c = 12
>>> s['q we'].r.t.y = 'aaa'
>>> s['5fr'] = True

The dot shortcut does not work for keys which begin and end with two (or more) underscores (like __key__). This is done on purpose to ensure that Python magic methods work properly.

3.1.3. Case sensitivity

Settings, just like regular Python dictionaries, are case sensitive:

>>> s = Settings()
>>> s.foo = 'bar'
>>> s.FOO = 283
>>> print(s)
FOO:    283
foo:    bar

This is good, since the data stored in Settings (for example, input keywords) is, in general, case sensitive. However, sometimes this becomes a problem. For example, imagine you’re writing an interface to some external binary which is case-insensitive and requires key Charge in the input. You want to check if the user has already placed such a key herself, or if it needs to be added by your code:

>>> s = Settings()
>>> s.input.Charge = 1
...
>>> if 'charge' not in s.input:
>>>     s.input.charge = 0
...
>>> print(s)
input:
      Charge:   1
      charge:   0

To help in such situations, the Settings class comes together with a special “ignore-case string” ig. ig works and behaves exactly like the regular Python string str (that means ig is, in fact, case sensitive), but when an instance of ig is used as a Settings key, the case is ignored:

>>> s = Settings()
>>> s.Charge = 1
>>> 'charge' in s
False
>>> ig('charge') in s
True
>>> s[ig('charge')] = -1
>>> print(s)
Charge:     -1
>>> x = s[ig('chaRGE')]
>>> print(x)
-1
>>> s.frozen = [3,6]
>>> s[ig('FROZEN')].append(5)
>>> print(s)
Charge:     -1
frozen:     [3,6,5]

Note

ig strings cannot be used together with the dot notation. Please use the bracket notation.

3.1.4. Global settings

Global settings are stored in a public Settings instance named config. They contain variables adjusting general behavior of PLAMS as well as default settings for various objects (jobs, job manager etc.) The config instance is created during initialization of PLAMS environment (see init()) and populated by executing plams_defaults file. It is visible in the main PLAMS namespace so every time you wish to adjust some settings you can simply type in your script, for example:

config.job.pickle = False
config.sleepstep = 10

These changes are going to affect only the script they are called from. If you wish to permanently change some setting for all PLAMS executions, you can do it by editing plams_defaults, which is located in the root folder of the package ($ADFHOME/scripting/scm/plams).

Note

You can create multiple “profiles” of PLAMS behavior by creating multiple different copies of plams_defaults (also with different filenames). If the environmental variable $PLAMSDEFAULTS is present and its value points to an existing file, this file is used instead of plams_defaults from the root folder.

3.1.5. API

class Settings(*args, **kwargs)[source]

Automatic multi-level dictionary. Subclass of built-in class dict.

The shortcut dot notation (s.basis instead of s['basis']) can be used for keys that:

  • are strings
  • don’t contain whitespaces
  • begin with a letter or an underscore
  • don’t both begin and end with two or more underscores.

Iteration follows lexicographical order (via sorted() function)

Methods for displaying content (__str__() and __repr__()) are overridden to recursively show nested instances in easy-readable format.

Regular dictionaries (also multi-level ones) used as values (or passed to the constructor) are automatically transformed to Settings instances:

>>> s = Settings({'a': {1: 'a1', 2: 'a2'}, 'b': {1: 'b1', 2: 'b2'}})
>>> s.a[3] = {'x': {12: 'q', 34: 'w'}, 'y': 7}
>>> print(s)
a:
  1:    a1
  2:    a2
  3:
    x:
      12:   q
      34:   w
    y:  7
b:
  1:    b1
  2:    b2
copy()[source]

Return a new instance that is a copy of this one. Nested Settings instances are copied recursively, not linked.

In practice this method works as a shallow copy: all “proper values” (leaf nodes) in the returned copy point to the same objects as the original instance (unless they are immutable, like int or tuple). However, nested Settings instances (internal nodes) are copied in a deep-copy fashion. In other words, copying a Settings instance creates a brand new “tree skeleton” and populates its leaf nodes with values taken directly from the original instance.

This behavior is illustrated by the following example:

>>> s = Settings()
>>> s.a = 'string'
>>> s.b = ['l','i','s','t']
>>> s.x.y = 12
>>> s.x.z = {'s','e','t'}
>>> c = s.copy()
>>> s.a += 'word'
>>> s.b += [3]
>>> s.x.u = 'new'
>>> s.x.y += 10
>>> s.x.z.add(1)
>>> print(c)
a:  string
b:  ['l', 'i', 's', 't', 3]
x:
  y:    12
  z:    set([1, 's', 'e', 't'])
>>> print(s)
a:  stringword
b:  ['l', 'i', 's', 't', 3]
x:
  u:    new
  y:    22
  z:    set([1, 's', 'e', 't'])

This method is also used when copy.copy() is called.

soft_update(other)[source]

Update this instance with data from other, but do not overwrite existing keys. Nested Settings instances are soft-updated recursively.

In the following example s and o are previously prepared Settings instances:

>>> print(s)
a:  AA
b:  BB
x:
  y1:   XY1
  y2:   XY2
>>> print(o)
a:  O_AA
c:  O_CC
x:
  y1:   O_XY1
  y3:   O_XY3
>>> s.soft_update(o)
>>> print(s)
a:  AA        #original value s.a not overwritten by o.a
b:  BB
c:  O_CC
x:
  y1:   XY1   #original value s.x.y1 not overwritten by o.x.y1
  y2:   XY2
  y3:   O_XY3

Other can also be a regular dictionary. Of course in that case only top level keys are updated.

Shortcut A += B can be used instead of A.soft_update(B).

update(other)[source]

Update this instance with data from other, overwriting existing keys. Nested Settings instances are updated recursively.

In the following example s and o are previously prepared Settings instances:

>>> print(s)
a:  AA
b:  BB
x:
  y1:   XY1
  y2:   XY2
>>> print(o)
a:  O_AA
c:  O_CC
x:
  y1:   O_XY1
  y3:   O_XY3
>>> s.update(o)
>>> print(s)
a:  O_AA        #original value s.a overwritten by o.a
b:  BB
c:  O_CC
x:
  y1:   O_XY1   #original value s.x.y1 overwritten by o.x.y1
  y2:   XY2
  y3:   O_XY3

Other can also be a regular dictionary. Of course in that case only top level keys are updated.

merge(other)[source]

Return new instance of Settings that is a copy of this instance soft-updated with other.

Shortcut A + B can be used instead of A.merge(B).

find_case(key)[source]

Check if this instance contains a key consisting of the same letters as key, but possibly with different case. If found, return such a key. If not, return key.

When Settings are used in case-insensitive contexts, this helps preventing multiple occurences of the same key with different case:

>>> s = Settings()
>>> s.system.key1 = 'value1'
>>> s.System.key2 = 'value2'
>>> print(s)
System:
    key2:    value2
system:
    key1:    value1

>>> t = Settings()
>>> t.system.key1 = 'value1'
>>> t[t.find_case('System')].key2 = 'value2'
>>> print(t)
system:
    key1:    value1
    key2:    value2
as_dict()[source]

Return a copy of this instance with all Settings replaced by regular Python dictionaries.

classmethod supress_missing()[source]

A context manager for temporary disabling the Settings.__missing__() magic method: all calls now raising a KeyError.

As a results, attempting to access keys absent from an arbitrary Settings instance will raise a KeyError, thus reverting to the default dictionary behaviour.

Note

The Settings.__missing__() method is (temporary) supressed at the class level to ensure consistent invokation by the Python interpreter. See also special method lookup.

Example:

>>> s = Settings()

>>> with s.supress_missing():
...     s.a.b.c = True
KeyError: 'a'

>>> s.a.b.c = True
>>> print(s.a.b.c)
True
get_nested(key_tuple, supress_missing=False)[source]

Retrieve a nested value by, recursively, iterating through this instance using the keys in key_tuple.

The Settings.__getitem__() method is called recursively on this instance until all keys in key_tuple are exhausted.

Setting supress_missing to True will internally open the Settings.supress_missing() context manager, thus raising a KeyError if a key in key_tuple is absent from this instance.

>>> s = Settings()
>>> s.a.b.c = True
>>> value = s.get_nested(('a', 'b', 'c'))
>>> print(value)
True
set_nested(key_tuple, value, supress_missing=False)[source]

Set a nested value by, recursively, iterating through this instance using the keys in key_tuple.

The Settings.__getitem__() method is called recursively on this instance, followed by Settings.__setitem__(), until all keys in key_tuple are exhausted.

Setting supress_missing to True will internally open the Settings.supress_missing() context manager, thus raising a KeyError if a key in key_tuple is absent from this instance.

>>> s = Settings()
>>> s.set_nested(('a', 'b', 'c'), True)
>>> print(s)
a:
  b:
    c:      True
flatten(flatten_list=True)[source]

Return a flattened copy of this instance.

New keys are constructed by concatenating the (nested) keys of this instance into tuples.

Opposite of the Settings.unflatten() method.

If flatten_list is True, all nested lists will be flattened as well. Dictionary keys are replaced with list indices in such case.

>>> s = Settings()
>>> s.a.b.c = True
>>> print(s)
a:
  b:
    c:      True

>>> s_flat = s.flatten()
>>> print(s_flat)
('a', 'b', 'c'):    True
unflatten(unflatten_list=True)[source]

Return a nested copy of this instance.

New keys are constructed by expanding the keys of this instance (e.g. tuples) into new nested Settings instances.

If unflatten_list is True, integers will be interpretted as list indices and are used for creating nested lists.

Opposite of the Settings.flatten() method.

>>> s = Settings()
>>> s[('a', 'b', 'c')] = True
>>> print(s)
('a', 'b', 'c'):    True

>>> s_nested = s.unflatten()
>>> print(s_nested)
a:
  b:
    c:      True
__iter__()[source]

Iteration through keys follows lexicographical order. All keys are sorted as if they were strings.

__missing__(name)[source]

When requested key is not present, add it with an empty Settings instance as a value.

This method is essential for automatic insertions in deeper levels. Without it things like:

>>> s = Settings()
>>> s.a.b.c = 12

will not work.

The behaviour of this method can be supressed by initializing the Settings.supress_missing context manager.

__contains__(name)[source]

Like regular __contains`__, but if the key is an “ig” string, ignore the case.

__getitem__(name)[source]

Like regular __getitem__, but if the key is an “ig” string, ignore the case.

__setitem__(name, value)[source]

Like regular __setitem__, but if the value is a dict, convert it to Settings.

__delitem__(name)[source]

Like regular __detitem__, but if the key is an “ig” string, ignore the case.

__getattr__(name)[source]

If name is not a magic method, redirect it to __getitem__.

__setattr__(name, value)[source]

If name is not a magic method, redirect it to __setitem__.

__delattr__(name)[source]

If name is not a magic method, redirect it to __delitem__.

_str(indent)[source]

Print contents with indent spaces of indentation. Recursively used for printing nested Settings instances with proper indentation.

Note

Methods update() and soft_update() are complementary. Given two Settings instances A and B, the command A.update(B) would result in A being exactly the same as B would be after B.soft_update(A).
