Thomas Heine and coworkers computationally designed a logical junction made from a single material, PdS2. Uniquely, 2D transition metal dichalcogenide PdS2 is semiconducting as a monolayer (ML) while it is semimetallic as a bilayer (BL). By exploiting this electronic phase transition, a ML junction can be made between BL contacts from a single material, minimizing resistance.
In this study, band structures have been calculated with self-consistent spin-orbit coupling in BAND and coherent transport calculations were performed with DFTB in conjunction with the non-equilibrium Green’s function (NEGF) approach. A proposed PdS2 junction behaves as a diode with a channel length of about 2.5 nm.
With field of 2D materials just emerging, novel device concepts in 2D electronics are waiting to be uncovered by explored properties of different combinations, potentially yielding unprecedented nanoelectronic properties.

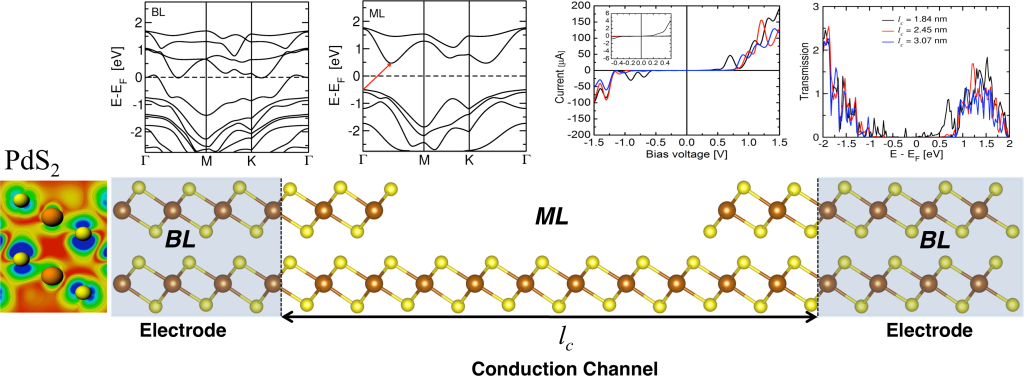

Diode made from only 2D semi-conductor PdS2. Band structures of ML & BL (top left), I-V characteristics (top right), charge density (bottom left) and logical junction design (bottom right).
Do you want try for yourself? Request a free 30-day evaluation for the whole Amsterdam Modeling Suite.
Newsletter: tips & tricks, highlights, events
Would you like to keep up to date with the latest developments in the Amsterdam Modeling Suite and the SCM team, learn more about new applications and functionality?
Subscribe to our newsletter!
You have already subscribed. Thank you! If you don't receive our newsletters, send us an email.
M. Ghorbani-Asl, A. Kuc, P. Miró, and T. Heine, A Single-Material Logical Junction Based on 2D Crystal PdS2, Adv. Mater. 28, 853-856 (2016)Key conceptsCharge Transport DFTB nanoscience NEGF periodic DFT Relativistic DFT
