Analysis of NMR parameters with Localized Molecular Orbitals



This part requires you to have a license for the NBO6 program. You can contact for more information.

Localized molecular orbitals, such as Natural Bonding Orbitals (NBO) or Natural Localized Molecular Orbitals (NLMO) can be helpful in analyzing and interpreting properties computed in electronic structure calculations.

This tutorial analyzes the effects of NH2 and NO2 substituents in ortho-, meta-, and para-positions on NMR chemical shifts of aromatic carbon atoms in a benzene ring. These shifts in aromatic systems are commonly believed to originate from a depletion or accumulation of electrons in the π-orbitals at these atoms. We examine this claim by means of NMR calculations with ADF and NBO/NLMO analysis tools.

This tutorial loosely follows the following publication: R. V. Viesser, L. C. Ducati, C. F. Tormena and J. Autschbach The unexpected roles of σ and π orbitals in electron donor and acceptor group effects on the 13C NMR chemical shifts in substituted benzenes, Chem. Sci. Phys. 8, 6570-6576 (2017).

Step 1: Preparations

The molecular structures needed for this tutorial can be downloaded by clicking on the following links:


These structures have already been optimized and properly aligned. In general, you should optimize the structures first.


The analysis of NMR and EFG results in terms of localized molecular orbitals requires some care about the alignment of the molecules when comparing results between different systems as in our case. This is, for example, because the analysis in terms of NLMOs is origin dependent. To obtain comparable orbital contributions one has furthermore to ensure that the different molecules are oriented in the same way. In AMSinput you can use the options Edit → Align and Edit → Set Origin to achieve this when performing localized orbital analysis with your custom models.

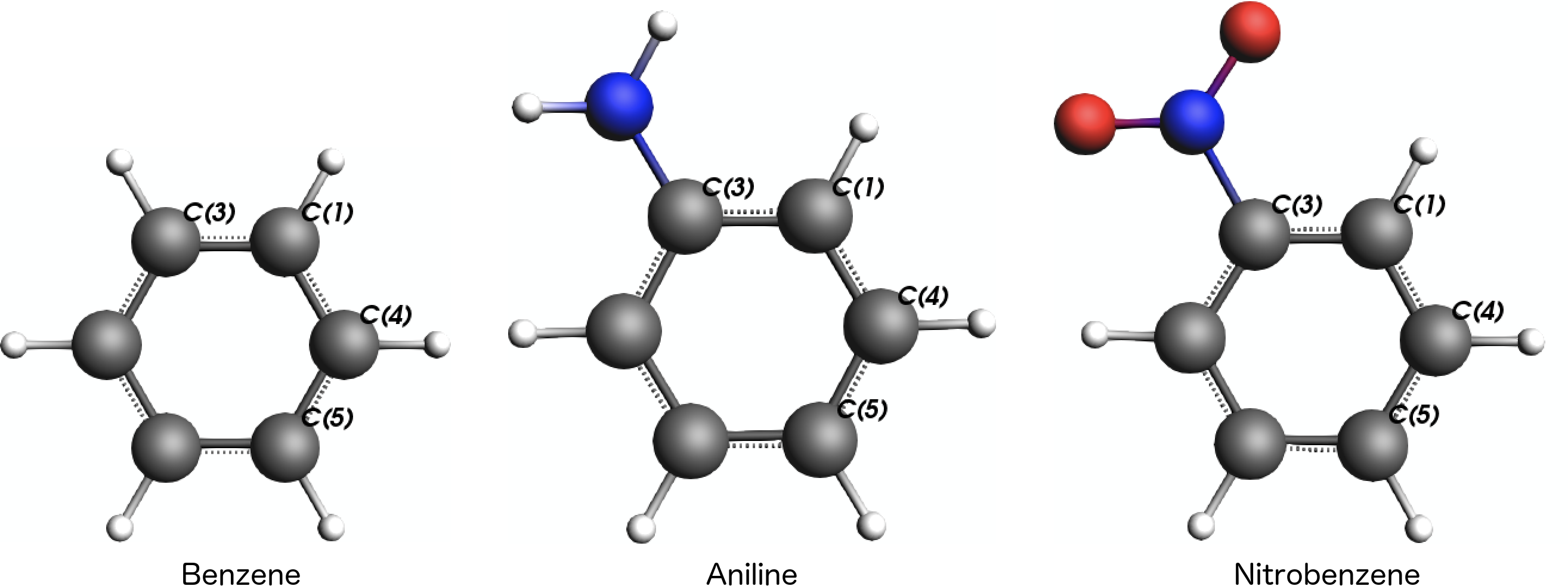

The main idea is now to compute the NMR shielding parameters for three different carbon atoms in the ring, C(1), C(4), and C(5), which are in ortho-, meta-, and para-position to the substituent at atom C(3):


Step 2: Calculation Settings

We need to perform three ADF calculations, one for each molecule (i.e. Benzene, Aniline, and Nitrobenzene).

Let us start with Benzene:

Start AMSinput
Click on File → Import Coordinates… and select the file you just downloaded

Next, select the following settings in the main AMSinput panel

In the Main ADF panel:
Task → Single Point
XC functional → Hybrid → PBE0
Basis set → TZ2P
Frozen core → None
Numerical quality → Good


An all-electron basis set is desirable because a hybrid functional is used. Using an all-electron basis set also improves the quality of the NMR results.


A scalar relativistic treatment (Relativity → Scalar) is required to perform the NBO analysis of the NMR shifts.

In order to compare the computed NMR results with their experimental counterparts (which were measured in Chloroform solution), we enable the COSMO solvation model:

Click on Model → Solvation
Solvation method → COSMO
COSMO solvent → Chloroform

We now select the atoms for which we want to compute the NMR properties:

View → Atom Info → Name → Show

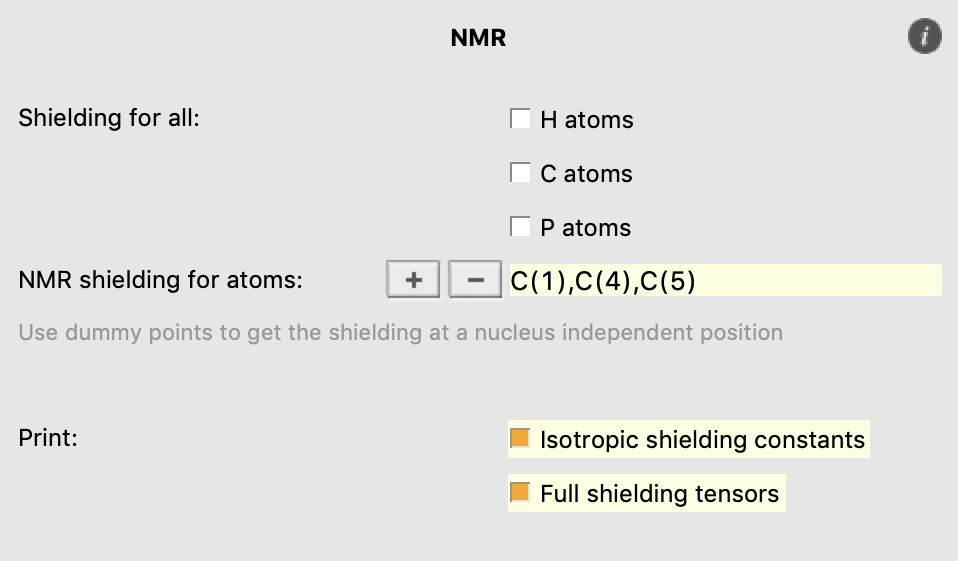

Click on Properties → NMR
Select atoms C(1), C(4), and C(5) in the molecular editor
NMR shielding for atoms: click on the + button
Print: tick Isotropic shielding constants and Full shielding tensors

and enable the NBO analysis of the NMR properties:

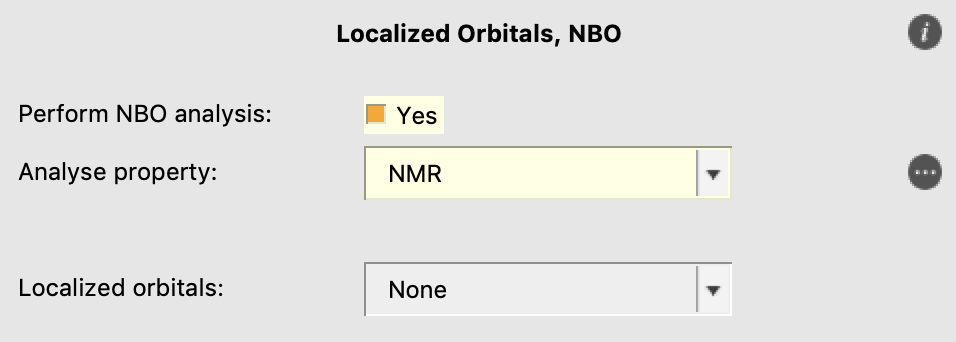

Click on Properties → Localized Orbitals, NBO
Perform NBO analysis: Tick yes
Analyse property → NMR

Finally, we need to disable the automatic symmetry treatment of ADF:

Click on Details → Symmetry
Symmetry → NOSYM

Now that all options are set, save the job:

File → Save As…
Save e.g. as Benzene
Click OK in the popup window to confirm using the FULL FOCK matrix

For the other two systems (i.e. Aniline, and Nitrobenzene), we can avoid having to set again most computational options:

Select and delete all atoms
File → Import Coordinates…
Select and click Open
View → Atom Info → Name → Show
Click on Properties → NMR
Select atoms C(1), C(4), and C(5) in the molecular editor
NMR shielding for atoms: click on the + button
File → Save As…
Save e.g. as Aniline
Repeat for

Step 3: Running the Calculations

We are now ready to run all three calculations

Switch to AMSjobs using the SCM menu
Select the three jobs Benzene, Aniline, and Nitrobenzene
Job → Run

NMR Results

After all three calculations are completed (this can take 10 minutes up to several hours, depending on your hardware), we can explore the output file:

In AMSjobs click on the job Benzene
Switch to AMSoutput using the SCM menu SCM → Output

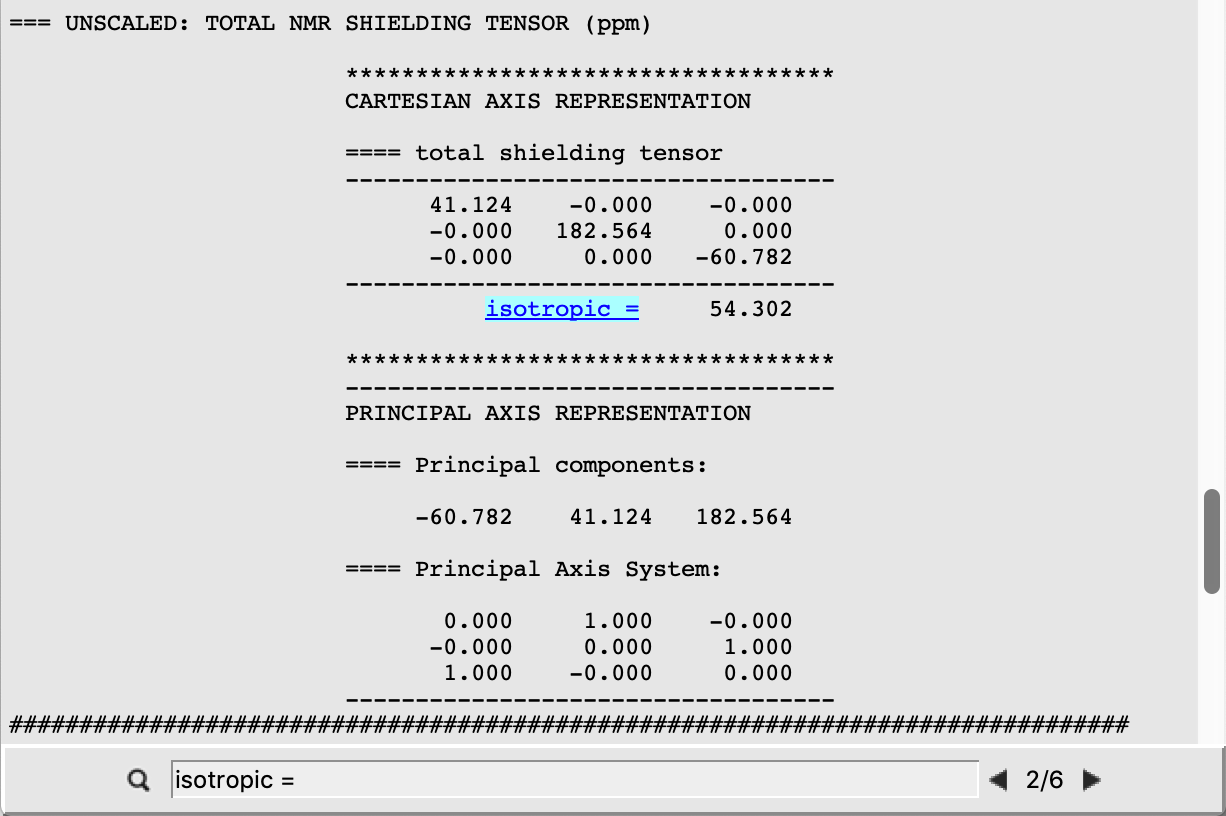

In the AMSoutput window, we can see the output file. We can search for text on it by using the text box localized at the bottom. For example, we can go directly to the NMR section by searching the text N M R, or go to the beginning of the shielding tensor calculation section for each atom with ****  N U C L E U S :. Notice that in the latter case, there is one section for each of the three nuclei C(1), C(4), and C(5), and you can reach each one of them by using the small triangles to the right of the searching text box.

We can also retrieve the isotropic shielding constants directly by clicking on the properties listed on the top menu of AMSoutput:

In AMSoutput, click on Other Properties → NMR shielding (NMR program)

Repeating the previous click, we can retrieve the result for each atom.

In the case of Benzene the atoms C(1), C(4), and C(5) are all equivalent, thus yielding shielding isotropic constants σi of the same value. This is different in the case of the other two systems, whose shielding constants are retrieved analogously from the corresponding output files. The following are the expected results:



σi (ppm)

















The chemical shifts δi are then computed relative to the unsubstituted Benzene molecule as follows:

δi = σBenzene - σi + δBenzene

Here σBenzene is the isotropic value of the chemical shielding computed σi for Benzene (54.302 ppm in our case), and δBenzene = 128.55 ppm is the experimental chemical shift relative to TMS for 13C in Benzene.


It is important to note that the trends analyzed herein are not affected by the nature of the intermediate reference.

This yields the following results:



exp 13C-shift

calc 13C-shift



128.55 (by definition)





















The experimental NMR shifts are reproduced with an error margin of about 2 ppm, and the trend between the different substitutions is reproduced: the NH2 group leads to a significant decrease in the chemical shifts in ortho- and para- position. The meta-position remains almost unaffected by the NH2 group. This is also observed for the meta-position near a NO2 substitution, while the chemical shifts are lowered at the ortho-atom and increased at the para-position.

To rationalize this finding, we proceed to examine the contributions of individual orbitals to these substituent effects.

NLMO/NBO Analysis

We first look at the individual NLMO contributions to the isotropic shielding tensors. Each output file contains the NLMO and NBO decomposition of the isotropic shielding tensors (and other quantities) for the atoms C(1), C(4), and C(5).

The NMR shielding tensors consist of diamagnetic and paramagnetic (+SO) contributions. Diamagnetic terms are larger but mostly dominated by contributions from core orbitals and they are essentially not affected by the local environment of an atom. As we are interested in substitution effects, i.e. changing environments around an atom, we focus on the diamagnetic terms here as these are most influential on the magnitude and direction of the chemical shifts.

Switch to AMSoutput for the job Aniline

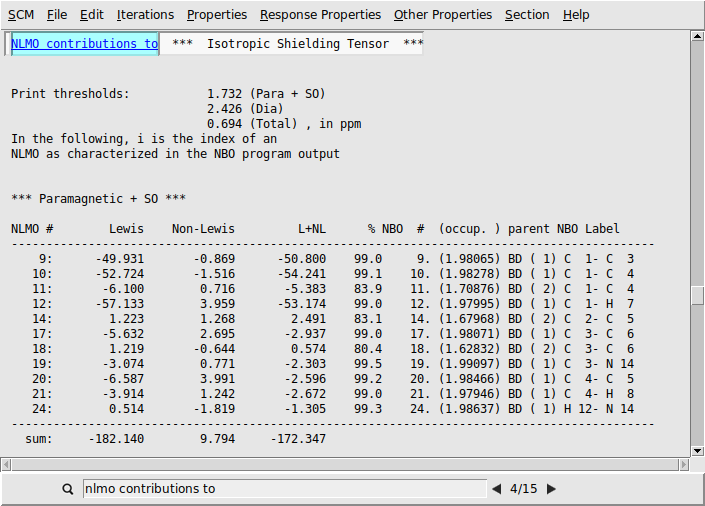

Type NLMO contributions to in the search bar
Use the arrows in the search bar to get the entries for the Isotropic Shielding Tensor

We find that the paramagnetic part of the isotropic shielding tensor at atom C(1) is mostly determined by contributions originating from three bonding NLMOs formed between C(1) and its three neighbors C(3), C(4), and H(7). See labels C  1- C  3, C  1- C  4, and C  1- H  7 respectively. Analogous results are obtained for C(4) and C(5) as well as for the corresponding atoms in the Nitrobenzene molecule.

One finds similar results when examining the NBO contributions to the isotropic shielding tensors. These contributions can be obtained by searching for NBO contributions to in the search bar of ADFOutput.


The following table summarizes characteristics of the common NBO/NLMO types, showing the number of centers, quantum shell, Lewis(L)/non-Lewis(NL) donor-acceptor type, and the program output label:

NBO Type










nonbonded (lone pair)




















Inspecting NLMOs

We now examine in more detail the NLMOs with the largest contributions.

In AMSjobs, select the job Aniline
Click on the arrow to show the files
Select the nbo-nlmo-adf.rkf file
Open AMSview using the SCM menu, click on SCM → View
In AMSview, click on Add → Isosurface: With Phase
In the field bar at the bottom: Select Field … → NLMOs..

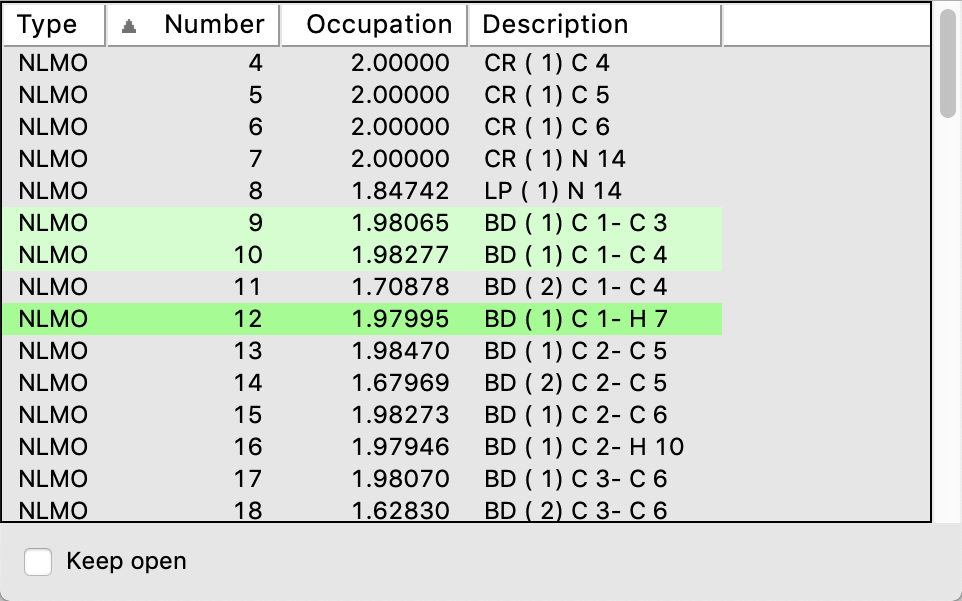

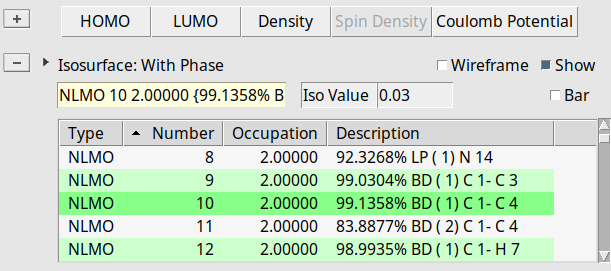

The selection window allows you to pick individual orbitals for plotting in AMSview

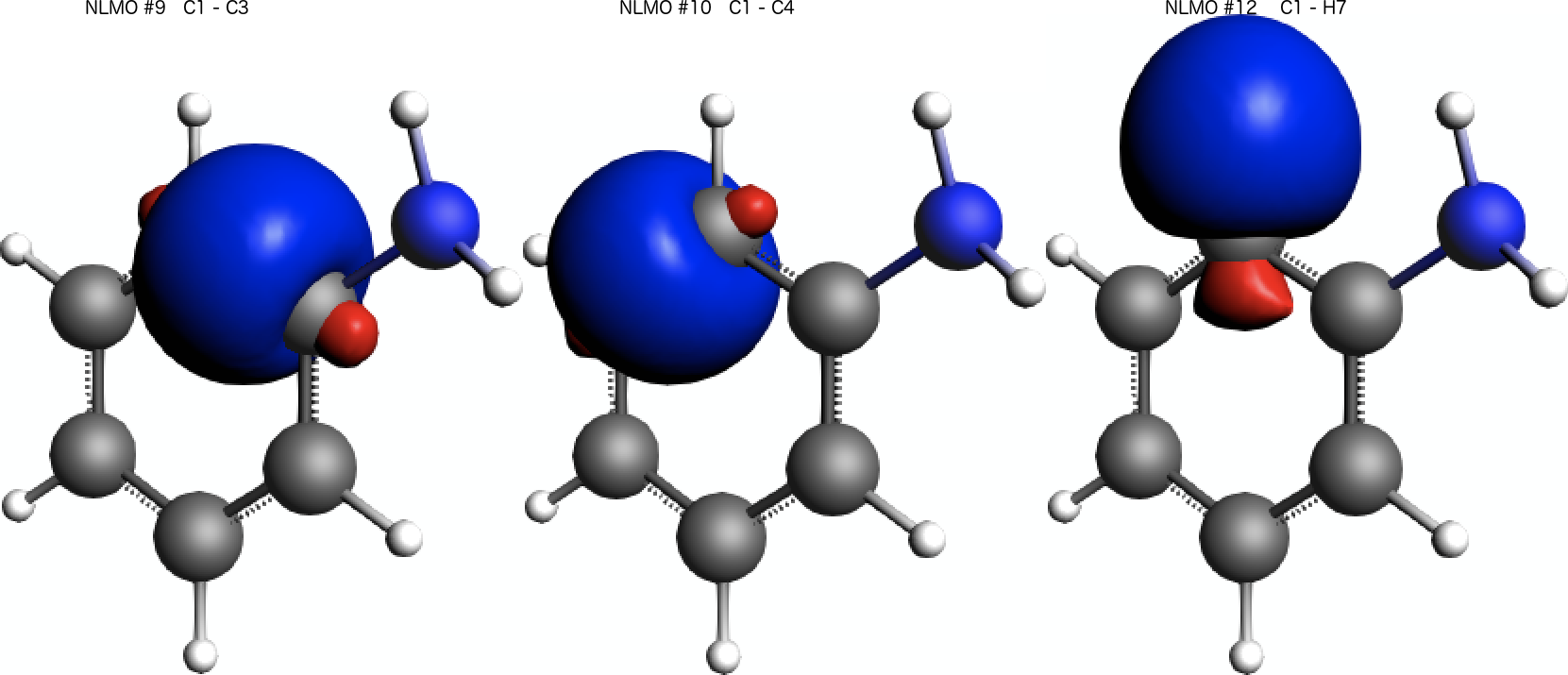

A visual inspection of the three NLMOs with the largest contribution to the isotropic shielding tensor reveals that they all have a pronounced σ-orbital character:

In AMSview in the field bar at the bottom:
Enter 0.06 as isotropic value

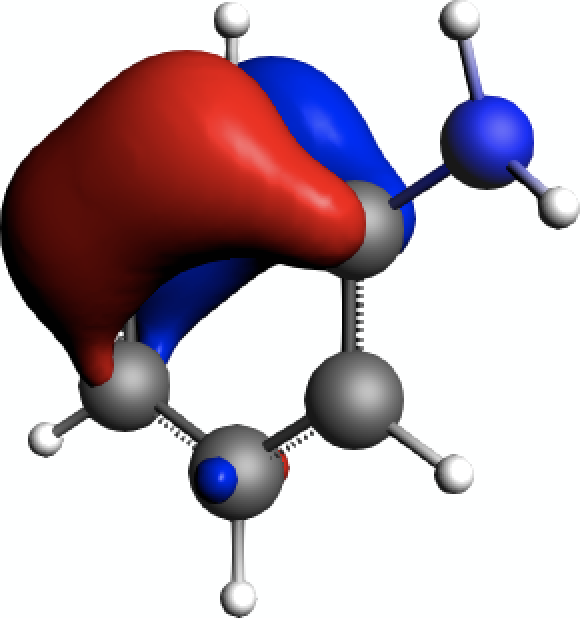

Opposed to that, the π-orbitals of the aromatic system can be clearly identified as well, e.g. for NLMO #11 in the above listing of contributions


As the results discussed above show, such π-orbitals are not contributing much to the isotropic shielding tensors.

The corresponding analysis in terms of NBOs can be done in exactly the same way

In the field bar at the bottom: Select Field … → NBOs..
Select NBO from list

and suggests exactly the same finding

In conclusion, the chemical shifts due to substitutions on an aromatic ring are mainly influenced by contributions from σ-bonding orbitals rather than π-orbitals.
