# Density Functional (XC)¶

The starting point for the XC functional is usually the result for the homogeneous electron gas, after which the so called non-local or generalized gradient approximation (GGA) can be added.

The density functional approximation is controlled by the XC key.

Three classes of XC functionals are supported: LDA, GGA, meta-GGA, and range-separated hybrid functionals. There is also the option to add an empirical dispersion correction. The only ingredient of the LDA energy density is the (local) density, the GGA depends additionally on the gradient of the density, and the meta-GGA has an extra dependency on the kinetic energy density. The range-separated hybrids are explained below in the section Range-Separated Hybrids.

In principle you may specify different functionals to be used for the *potential,* which determines the self-consistent charge density, and for the *energy* expression that is used to evaluate the (XC part of the) energy of the charge density. The *energy* functional is used for the nuclear gradients (geometry optimization), too. To be consistent, one should generally apply the same functional to evaluate the potential and energy respectively. Two reasons, however, may lead one to do otherwise:

The evaluation of the GGA part (especially for meta-GGAs) in the

*potential*is rather time-consuming. The effect of the GGA term in the potential on the self-consistent charge density is often not very large. From the point of view of computational efficiency it may, therefore, be attractive to solve the SCF equations at the LDA level (i.e. not including GGA terms in the potential), and to apply the full expression, including GGA terms, to the energy evaluation*a posteriori*: post-SCF.A particular XC functional may have only an implementation for the potential, but not for the energy (or vice versa). This is a rather special case, intended primarily for fundamental research of Density Functional Theory, rather than for run-of-the-mill production runs.

All subkeys of `XC`

are optional and may occur twice in the data block: if one wants to specify different functionals for potential and energy evaluations respectively, see above.

```
XC
{LDA {Apply} LDA {Stoll}}
{GGA {Apply} GGA}
{DiracGGA GGA}
{MetaGGA {Apply} GGA}
{Dispersion {s6scaling} {RSCALE=r0scaling} {Grimme3} {BJDAMP} {PAR1=par1} {PAR2=par2} {PAR3=par3} {PAR4=par4}}
{Dispersion Grimme4 {s6=...} {s8=...} {a1=...} {a2=...}}
{Model [LB94|TB-mBJ|KTB-mBJ|JTS-MTB-MBJ|GLLB-SC|BGLLB-VWN|BGLLB-LYP]}
{SpinOrbitMagnetization [None|NonCollinear|CollinearX|CollinearY|CollinearZ]}
{LibXC {Functional}}
{DOUBLEHYBRID doublehybrid}
{RPA {option}}
End
```

The common use is to specify either an LDA or a (meta)GGA line. (Technically it is possible to have an LDA line *and* a GGA line, in which case the LDA part of the GGA functional (if applicable) is replaced by what is specified by the LDA line.)

`Apply`

States whether the functional defined on the pertaining line will be used self-consistently (in the SCF-potential), or only post-SCF, i.e. to evaluate the XC energy corresponding to the charge density. The value of apply must be

**SCF**or**POSTSCF**. (**default=SCF**)

## LDA/GGA/metaGGA¶

`LDA`

Defines the LDA part of the XC functional and can be any of the following:

**Xonly**: The pure-exchange electron gas formula. Technically this is identical to the Xalpha form with a value 2/3 for the X-alpha parameter.**Xalpha**: the scaled (parameterized) exchange-only formula. When this option is used you may (optionally) specify the X-alpha*parameter*by typing a numerical value after the string Xalpha (**Default: 0.7**).**VWN**: the parametrization of electron gas data given by Vosko, Wilk and Nusair (ref 1, formula version V). Among the available LDA options this is the more advanced one, including correlation effects to a fair extent.**Stoll**: For the VWN or GL variety of the LDA form you may include Stoll’s correction 2 by typing Stoll on the same line, after the main LDA specification. You must not use Stoll’s correction in combination with the Xonly or the Xalpha form for the Local Density functional.

`GGA`

Specifies the GGA part of the XC Functional. It uses derivatives (gradients) of the charge density. Separate choices can be made for the GGA exchange correction and the GGA correlation correction respectively. Both specifications must be typed (if at all) on the same line, after the GGA subkey.

For the exchange part the options are:

**Becke**: the gradient correction proposed in 1988 by Becke 3**PW86x**: the correction advocated in 1986 by Perdew-Wang 4**PW91x**: the exchange correction proposed in 1991 by Perdew-Wang 5**mPWx**: the modified PW91 exchange correction proposed in 1998 by Adamo-Barone 6**PBEx**: the exchange correction proposed in 1996 by Perdew-Burke-Ernzerhof 7**HTBSx**: the HTBS exchange functional 8**RPBEx**: the revised PBE exchange correction proposed in 1999 by Hammer-Hansen-Norskov 9**revPBEx**: the revised PBE exchange correction proposed in 1998 by Zhang-Yang 10**mPBEx**: the modified PBE exchange correction proposed in 2002 by Adamo-Barone 11**OPTX**: the OPTX exchange correction proposed in 2001 by Handy-Cohen 12

For the correlation part the options are:

**Perdew**: the correlation term presented in 1986 by Perdew 13**PBEc**: the correlation term presented in 1996 by Perdew-Burke-Ernzerhof 7**PW91c**: the correlation correction of Perdew-Wang (1991), see 5 16 17**LYP**: the Lee-Yang-Parr 1988 correlation correction 18

Some GGA options define the exchange and correlation parts in one stroke. These are:

**BP86**: this is equivalent to**Becke**+**Perdew**together**PW91**: this is equivalent to**pw91x**+**pw91c**together**mPW**: this is equivalent to**mPWx**+**pw91c**together**PBE**: this is equivalent to**PBEx**+**PBEc**together**HTBS**: this is equivalent to**HTBSx**+**PBEc**together**RPBE**: this is equivalent to**RPBEx**+**PBEc**together**revPBE**: this is equivalent to**revPBEx**+**PBEc**together**mPBE**: this is equivalent to**mPBEx**+**PBEc**together**BLYP**: this is equivalent to**Becke**(exchange) +**LYP**(correlation)**OLYP**: this is equivalent to**OPTX**(exchange) +**LYP**(correlation)**OPBE**: this is equivalent to**OPTX**(exchange) +**PBEc**(correlation) 19

`DiracGGA`

(Expert option!) This key handles which XC functional is used during the Dirac calculations of the reference atoms. A string is expected which is not restricted to names of GGAs but can be LDA-like functionals, too.

**Note**: In some cases using a GGA functional leads to slow convergence of matrix elements of the kinetic energy operator w. r. t. the`Accuracy`

parameter. Then one can use the LDA potential for the calculation of the reference atom instead.

`MetaGGA`

Key to select the evaluation of a meta-GGA. A byproduct of this option is that the bonding energies of all known functionals are printed (using the same density). Meta-GGA calculations can be time consuming, especially when active during the SCF.

Self consistency of the meta-GGA is implemented as suggested by Neuman, Nobes, and Handy 20.

The available functionals of this type are:

**TPSS**: The 2003 meta-GGA 21**M06L**: The meta-GGA as developed by the Minesota group 22**revTPSS**: The 2009 revised meta-GGA 23**MVS**: Functional by Sun-Perdew-Ruzsinszky 24**MS0**: Functional by Sun et al. 25**MS1**: Functional by Sun et al. 26**MS2**: Functional by Sun et al. 26**SCAN**: Functional by Sun et al. 27**TASKxc**: by Aschebrock et al. Intended for band gaps and charge transfer systems.**TASKCC**: Functional by Lebeda et al. 37, improves TASKxc atomization energies

Note: For Meta-GGA XC functionals, it is recommended to use

`small`

or`none`

frozen core (the frozen orbitals are computed using LDA and not the selected Meta-GGA)

## Dispersion Correction¶

BAND supports the new D4(EEQ) as well as the older D3 and D3-BJ dispersion corrections from the group of Stefan Grimme:

### D4(EEQ)¶

`Dispersion Grimme4 {s6=...} {s8=...} {a1=...} {a2=...}`

If

`Dispersion Grimme4`

is present in the`XC`

block the D4(EEQ) dispersion correction (with the electronegativity equilibrium model) by the Grimme group 33 34 will be added to the total bonding energy, gradient and second derivatives, where applicable.The D4(EEQ) model has four parameters: \(s_6\), \(s_8\), \(a_1\) and \(a_2\) and their value should depend on the XC functional used. For the following functionals the D4(EEQ) parameters are

**predefined**: B1B95, B3LYP, B3PW91, B97-D, BLYP, BP86, CAM-B3LYP, HartreeFock, OLYP, OPBE, PBE, PBE0, PW6B95, REVPBE, RPBE, TPSS, TPSSH. For these functionals it is enough to specify`Dispersion Grimme4`

in the input block. E.g.:XC GGA BLYP Dispersion Grimme4 END

For all other functionals you should explicitly specify the D4(EEQ) parameters in the

`Dispersion`

key (otherwise the PBE parameters will be used). For example, for the PW91 functional you should use the following input:XC GGA PW91 Dispersion Grimme4 s6=1.0 s8=0.7728 a1=0.3958 a2=4.9341 END

The D4(EEQ) parameters for many functionals can be found in the supporting information of the following paper: 33, see also https://github.com/dftd4/dftd4.

### D3 and D3-BJ¶

In BAND parameters for *Grimme3* and *Grimme3 BJDAMP* can be used according to version 3.1 (Rev. 1) of the coefficients, published on the Bonn Bonn website.

`DISPERSION Grimme3 BJDAMP {PAR1=par1 PAR2=par2 PAR3=par3 PAR4=par4}`

If this key is present a dispersion correction (DFT-D3-BJ) by Grimme 29 will be added to the total bonding energy, gradient and second derivatives, where applicable. Parametrizations are implemented e.g. for B3LYP, TPSS, BP86, BLYP, PBE, PBEsol 28 , and RPBE. For SCAN parameters from Ref. 30 are used. The parametrization has four parameters. One can override these using

*PAR1=.. PAR2=..*, etc. In the table the relation is shown between the parameters and the real parameters in the dispersion correction.variable

variable on https://www.chemie.uni-bonn.de/grimme/de/software/dft-d3/bj_damping

PAR1

s6

PAR2

a1

PAR3

s8

PAR4

a2

`DISPERSION Grimme3 {PAR1=par1 PAR2=par2 PAR3=par3}`

If this key is present a dispersion correction (DFT-D3) by Grimme 31 will be added to the total bonding energy, gradient and second derivatives, where applicable. Parametrizations are available e.g. for B3LYP, TPSS, BP86, BLYP, revPBE, PBE, PBEsol 28, and RPBE, and will be automatically set if one of these functionals is used. For SCAN parameters from Ref. 30 are used. For all other functionals, PBE-D3 parameters are used as default. You can explicitly specify the three parameters.

variable

variable on https://www.chemie.uni-bonn.de/grimme/de/software/dft-d3/zero_damping

PAR1

s6

PAR2

sr,6

PAR3

s8

`Dispersion {s6scaling RSCALE=r0scaling}`

If the DISPERSION keyword is present a dispersion correction will be added to the total bonding energy, where applicable. By default the correction of Grimme is applied 32. The term is added to the bonding energies of all printed functionals, here the LDA and a couple of GGAs are meant. The global scaling factor, with which the correction is added, depends on the XC functional used for SCF but it can be modified using the

*s6scaling*parameter. The following scaling factors are used (with the XC functional in parentheses): 1.20 (BLYP), 1.05 (BP), 0.75 (PBE), 1.05 (B3LYP). In all other cases a factor 1.0 is used unless modified via the s6scaling parameter. The van der Waals radii, used in this implementation, are hard-coded. However, it is possible to modify the global scaling parameter for them using the*RSCALE=r0scaling*argument. The default value is 1.1 as proposed by Grimme 32.

## Model Potentials¶

`Model`

Some functionals give only a potential and have no energy expression. We call such functionals model potentials. In BAND the following model potentials are available:

- LB94
With this model the asymptotically correct potential of van Leeuwen and Baerends is invoked 35.

- TB-mBJ
This model potential can be used to correct for the band gap problem with GGAs for bulk systems 36. This potential depends on a c-factor for which there is a density dependent automatic expression. However you can override the automatic value by specifying XC%TB_mBJCFactor cfac. In principle: the bigger the value the larger the gap.

**KTB-mBJ**/**JTS-mTB-mBJ**are variations of**TB-mBJ**. The formula for C contains three parameters: A,B, and E. The logic is as followspotential

A

B

E

TB-mBJ 36

-0.012

1.023

0.5

KTB-mBJ 38

0.267

0.656

1.0

JTS-mTB-mBJ 39

0.4

1.0

0.5

The three parameters (A,B, and E) can be user-defined set as follows:

XC Model TB_mBJ TB_mBJAFactor valA TB_mBJBFactor valB TB_mBJEFactor valE End

- GLLB-SC
This functional uses a model for the exchange response potential (based on J. Krieger, Y. Li and G. Iafrate response potential 41) from which the derivative discontinuity follows 40. This is an accurate functional for band gap predictions and Electric Field Gradient calculations. It is also a fast method and a very good compromise between accuracy and computational cost. This functional is composed of the GLLB exchange response potential and the PBESOL exchange hole and the correlation potential 40.

- BGLLB-VWN
This functional is a variation of the GLLB-SC functional using the B88 exchange hole potential and the VWN correlation potential. This functional gives good results for Group I-VII and II-VI semi conductors.

- BGLLB-LYP
This functional is a variation of the GLLB-SC functional using the B88 exchange hole potential and the LYP correlation potential. This functional gives good results for large band gap insulators.

One can change the K parameter for the GLLB functionals with the `GLLBKParameter`

key:

```
XC
Model [GLLB-SC|BGLLB-VWN|BGLLB-LYP]
GLLBKParameter val
End
```

The default value is K=0.382 (value obtained from the electron gas model in the original publication).

## Non-Collinear Approach¶

`SpinOrbitMagnetization`

(

**Default=CollinearZ**) Most XC functionals have as one ingredient the spin polarization. Normally the direction of the spin quantization axis is arbitrary and conveniently chosen to be the*z*-axis. However, in a spin-orbit calculation the direction matters, and it is arbitrary to put the z-component of the magnetization vector into the XC functional. It is also possible to plug the size of the magnetization vector into the XC functional. This is called the non-collinear approach. There is also the exotic option to choose the quantization axis along the*x*or*y*axis. To summarize, the value**NonCollinear**invokes the non-collinear method. The other three option**CollinearX**,**CollinearY**and**CollinearZ**causes either the x, y, or z component to be used as spin polarization for the XC functional.

## LibXC Library Integration¶

Any publication employing calculations carried out with LibXC need to cite the current literature reference of LibXC, which is at the moment Ref. [S. Lehtola, C. Steigemann, M.J.T. Oliveira, M.A.L. Marques, SoftwareX 7, 1 (2018)] 14. Benchmark papers employing functionals from LibXC should especially include a reference to the employed DFT library, since as discussed in Ref. [S. Lehtola, M.A.L. Marques, J. Chem. Phys. 159, 114116 (2023)] 15, the implementations of a given functionals in various program packages may not lead to the same result, even at the complete basis set limit.

`LibXC functional`

LibXC is a library of approximate XC functionals, see Ref. 42 14. Version 5.1.2 of LibXC is used.. See the LibXC website for the complete list of functionals: https://libxc.gitlab.io/functionals.

The following functionals can be evaluated with LibXC (incomplete list):

**LDA:**LDA, PW92, TETER93**GGA:**AM05, BGCP, B97-GGA1, B97-K, BLYP, BP86, EDF1, GAM, HCTH-93, HCTH-120, HCTH-147, HCTH-407, HCTH-407P, HCTH-P14, PBEINT, HTBS, KT2, MOHLYP, MOHLYP2, MPBE, MPW, N12, OLYP, PBE, PBEINT, PBESOL, PW91, Q2D, SOGGA, SOGGA11, TH-FL, TH-FC, TH-FCFO, TH-FCO, TH1, TH2, TH3, TH4, VV10, XLYP, XPBE, HLE16**MetaGGA:**M06-L, M11-L, MN12-L, MS0, MS1, MS2, MVS, PKZB, TPSS, HLE17, rSCAN, r2SCAN**Hybrids**(**only for non-periodic systems**): B1LYP, B1PW91, B1WC, B3LYP, B3LYP*, B3LYP5, B3LYP5, B3P86, B3PW91, B97, B97-1 B97-2, B97-3, BHANDH, BHANDHLYP, EDF2, MB3LYP-RC04, MPW1K, MPW1PW, MPW3LYP, MPW3PW, MPWLYP1M, O3LYP, OPBE, PBE0, PBE0-13, REVB3LYP, REVPBE, RPBE, SB98-1A, SB98-1B, SB98-1C, SB98-2A, SB98-2B, SB98-2C, SOGGA11-X, SSB, SSB-D, X3LYP**MetaHybrids**(**only for non-periodic systems**): B86B95, B88B95, BB1K, M05, M05-2X, M06, M06-2X, M06-HF, M08-HX, M08-SO, MPW1B95, MPWB1K, MS2H, MVSH, PW6B95, PW86B95, PWB6K, REVTPSSH, TPSSH, X1B95, XB1K**Range-separated**(**for periodic systems, only short range-separated functionals can be used**, see Range-separated hybrid functionals): CAM-B3LYP, CAMY-B3LYP, HJS-PBE, HJS-PBESOL, HJS-B97X, HSE03, HSE06, LRC_WPBE, LRC_WPBEH, LCY-BLYP, LCY-PBE, M11, MN12-SX, N12-SX, TUNED-CAM-B3LYP, WB97, WB97X

Note that BAND can not calculate VV10 dependent LibXC functionals, like VV10, LC-VV10, B97M-V, WB97X-V.

Example usage for the MVS functional:

XC LibXC MVS End

**Notes:****All electron basis sets should be used**(see`CORE NONE`

in section Basis set).For periodic systems only short range-separated functionals can be used (see Range-separated hybrid functionals)

In case of LibXC the output of the BAND calculation will give the reference for the used functional, see also the LibXC website https://libxc.gitlab.io/functionals.

Do not use any of the subkeys LDA, GGA, METAGGA, MODEL in combination with the subkey LIBXC.

One can use the DISPERSION key icw LIBXC. For a selected number of functionals the optimized dispersion parameters will be used automatically, please check the output in that case.

If you use a GGA functional via LibXC then BAND will calculate the XC potential, similar to what happens with the normal GGA key. For some GGA functionals, however, this gives a problem for certain elements (during the RADIAL part of the code). This has been tested for all elements and no such problems are observed for functionals in this white list: “AM05 BCGP BP86 HCTH-93 HCTH-120 HCTH-147 HCTH-407 HCTH-P14 PBEINT MPBE MPW PBE PBESOL PW91 SOGGA TH-FL XPBE HLE16”. When using a GGA not in the white list BAND will automatically switch to another strategy. This means that core orbitals will no longer correspond to the GGA, and also the calculation will be less efficient. If that happens this warning will be printed: WARNING: requested libxc gga functional may give numerical problems for certain atom types (in the RADIAL section))

## Hartree-Fock¶

Pure Hartree-Fock is triggered by the key

```
XC
HartreeFock true
End
```

The Hartree-Fock exchange matrix is calculated through a procedure known as Resolution of the Identity (RI). See RIHartreeFock key.

There are some shortcomings to this option

It does not work with a frozen core

There are no gradients available

Does not work for periodic systems

## Range-separated hybrid functionals¶

Short range-separated hybrid functionals, like the **HSE03** functional 43, can be useful for prediction of more accurate band gaps compared to GGAs. These must be specified via the LibXC key

```
XC
LibXC functional {omega=value}
End
```

`functional`

The functional to be used. (Incomplete) list of available functionals:

**HSE06**,**HSE03**,**HJS-B97X**,**HJS-PBE**and**HJS-PBESOL**(See the LibXC website for a complete list of available functionals).`omega`

*Optional*. You can optionally specify the switching parameter omega of the range-separated hybrid. Only possible for the**HSE03**and**HSE06**functionals (See 43).

**Notes:**

Hybrid functionals can only be used in combination with all-electron basis sets (see

`CORE NONE`

in section Basis set).The Hartree-Fock exchange matrix is calculated through a procedure known as Resolution of the Identity (RI). See RIHartreeFock key.

Regular hybrids (such as B3LYP) and long range-separated hybrids (such as CAM-B3LYP)

**cannot**be used in periodic boundary conditions calculations (they can only be used for non-periodic systems).There is some confusion in the scientific literature about the value of the switching parameter \(\omega\) for the HSE functionals. In LibXC, and therefore in BAND, the HSE03 functional uses \(\omega=0.106066\) while the HSE06 functional uses \(\omega=0.11\).

**Usage example**:

```
XC
LibXC HSE06 omega=0.1
End
```

## Double hybrids, MP2 and RPA¶

Starting from AMS2023, Many-body perturbation theory functionals (double hybrids, MP2, and RPA) as implemented in ADF can also be used in the BAND engine for the molecular (non-periodic) case, see the ADF documentation for an overview over the implemented functionals.

Generally, BAND supports the same MBPT functionality as ADF. However, in Band, MP2, RPA, and double hybrids can not be used icw spin-orbit coupling.

It is recommended to adjust the **Basis** key inside the **Dependency** block and the **DependencyThreshold** inside the **RIHartreeFock** block. Typically, MBPT calculations require a large basis set (See the MBPT documentation inside ADF), ideally of quadruple-zeta quality or larger. In this case, the following settings are recommended.

**Usage example**:

```
XC
DoubleHybrid B2PLYP
End
Dependency
AllowBasisDependency True
Basis 1e-4
End
Softconfinement
Quality Excellent
End
RIHartreeFock
DependencyThreshold 1e-3
End
```

## Defaults and special cases¶

If the

`XC`

key is not used, the program will apply only the Local Density Approximation (no GGA terms). The chosen LDA form is then VWN.If only a GGA part is specified, omitting the

*LDA*subkey, the LDA part defaults to VWN, except when the LYP correlation correction is used: in that case the LDA default is Xonly: pure exchange.The reason for this is that the LYP formulas assume the pure-exchange LDA form, while for instance the Perdew-86 correlation correction is a correction to a

*correlated*LDA form. The precise form of this correlated LDA form assumed in the Perdew-86 correlation correction is not available as an option in ADF but the VWN formulas are fairly close to it.Be aware that typing only the subkey

*LDA*, without an argument, will activate the VWN form (also if LYP is specified in the GGA part).

## GGA+U¶

A special way to treat correlation is with so-called LDA+U, or GGA+U calculations. It is intended to solve the band gap problem of traditional DFT, the problem being an underestimation of band gaps for transition-metal complexes. A Hubbard like term is added to the normal Hamiltonian, to model on-site interactions. In its very simplest form it depends on only one parameter, U, and this is the way it has been implemented in BAND. The energy expression is equation (11) in the work of Cococcioni 45. See also the review article 44.

```
HubbardU
Atom
Element string
LValue [s | p | d | f]
UValue float
End
PrintOccupations Yes/No
Region
LValue [s | p | d | f]
Name string
UValue float
End
End
```

`HubbardU`

- Type
Block

- Description
Options for Hubbard-corrected DFT calculations.

`Atom`

- Type
Block

- Recurring
True

- Description
Specify Hubbard parameters (U,l) for a certain element

`Element`

- Type
String

- Description
Name of the element, such as Cu or Zn

`LValue`

- Type
Multiple Choice

- Default value
s

- Options
[s, p, d, f]

- Description
L value of the shell to apply the Hubbard model to

`UValue`

- Type
Float

- Default value
0.0

- Unit
Hartree

- Description
Hubbard U value.

`PrintOccupations`

- Type
Bool

- Default value
Yes

- Description
Whether or not to print the occupations during the SCF.

`Region`

- Type
Block

- Recurring
True

- Description
Specify Hubbard parameters (U,l) for all atoms in a certain region

`LValue`

- Type
Multiple Choice

- Default value
s

- Options
[s, p, d, f]

- Description
L value of the shell to apply the Hubbard model to

`Name`

- Type
String

- Description
Name of the region

`UValue`

- Type
Float

- Default value
0.0

- Unit
Hartree

- Description
Hubbard U value.

An example to apply LDA+U to the d-orbitals of NiO looks like:

```
...
Atoms
Ni 0.000 0.000 0.000
O 2.085 2.085 2.085
End
...
...
HubbardU
printOccupations true
Atom element=Ni UValue=0.3 lValue=2
End
...
```

It is also possible to specify U per region.

## OEP¶

(Expert options) When you are using a meta-GGA you are by default using a generalized Kohn-Sham method. However, it is possible to calculate a local potential, as is required for a strict Kohn-Sham calculation, via OEP, (see 46).

The main options are controlled with the `MetaGGA`

subkey of the XC block if `OEP`

is present.

```
XC
[...]
MetaGGA GGA OEP {approximation} {Fit} {Potential}
[...]
End
```

`GGA`

specifies the name of the used meta-GGA. In combination with OEP only

**PBE**,**TPSS**,**MVS**,**MS0**,**MS1**,**MS2**, and**SCAN**can be used!`approximation`

(

**Default: KLI**) There are three flavors to approximate the OEP:**KLI**,**Slater**, and**ELP**`Fit`

By adding the string

**Fit**on this line, one uses the fitted density instead of the exact density for the evaluation.`Potential`

If not specified, only the tau-dependent part of the OEP is evaluated and used. By adding the string

**Potential**in addition the tau-independent part is added to the XC potential. (This is needed e.g. for plotting the ‘vxc’)

With the following subkeys of the `XC`

blockkey you have extra control over the iterative OEP evaluation:

`MGGAOEPMaxIter`

(

**Default: 30**) defines the maximum number of cycles for the iterative OEP evaluation.`MGGAOEPConvergence`

(

**Default: 1E-6**) defines convergence criterion for OEP evaluation.`MGGAOEPWaitIter`

(

**Default: 0**) defines the number of SCF cycles with the regular meta-GGA before switching to the OEP scheme.`MGGAOEPMaxAbortIter`

(

**Default: 0**) defines number of cycles for which the error is allowed to increase before the calculation is aborted. Here, zero means: do never abort.`MGGAOEPMaxErrorIncrease`

(

**Default: 0.0**) defines the maximum rate of increasing error before the calculation is aborted. Here, zero means: do never abort.

An example for an OEP metaGGA calculation

```
XC
MetaGGA MVS OEP
End
```

Note that a very fine Becke grid is needed.

```
BeckeGrid
Quality USER
UserRadMulFactor 20.0
UserCoreL 11
UserInter1L 13
UserInter2L 21
UserExterL 31
UserExterLBoost 35
End
```

Note also: the gaps are typically not closer to experiment, and the calculations are more expensive. This option is mainly about academic interest.

## DFT-1/2¶

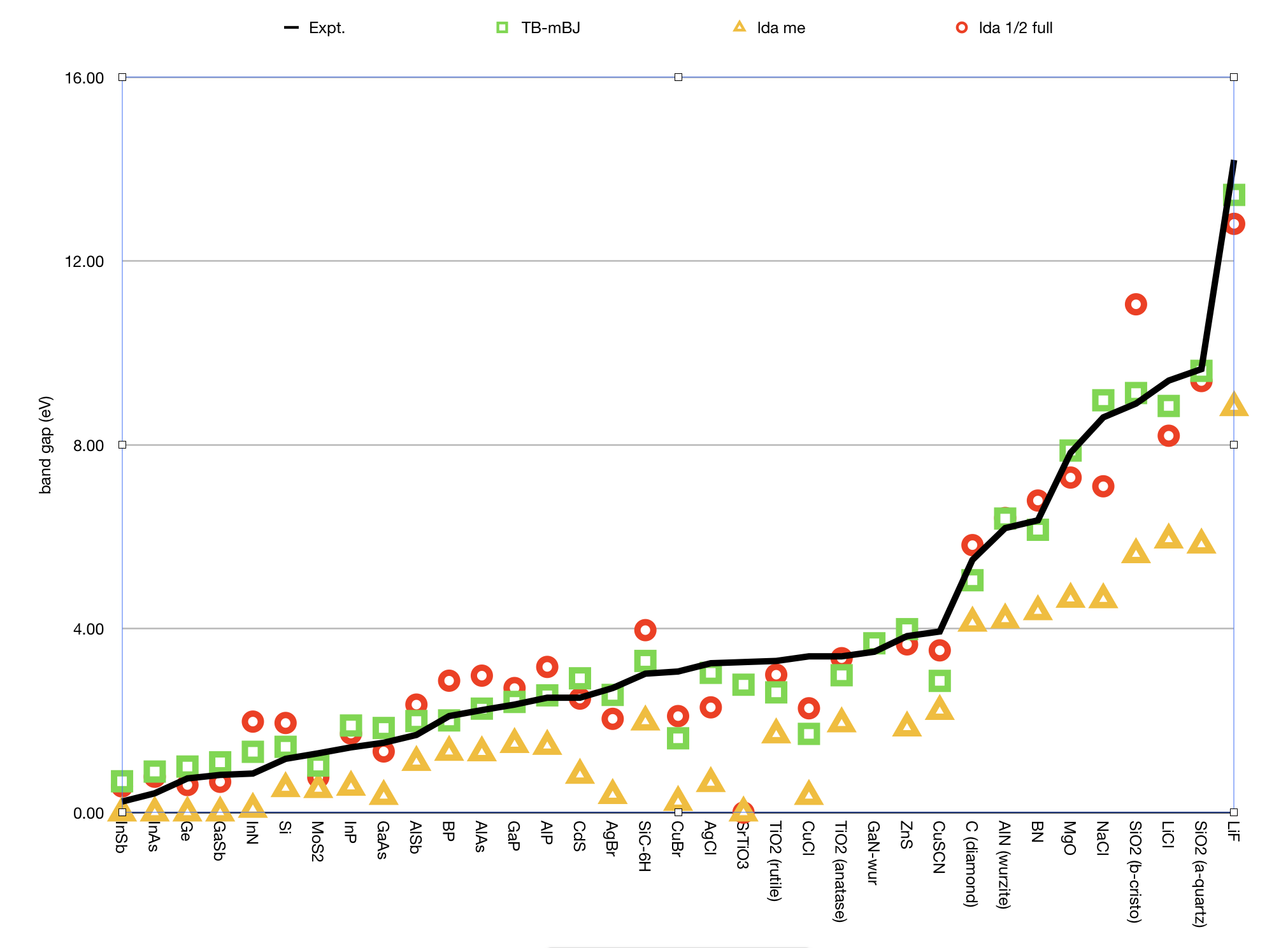

The DFT-1/2 method due to Slater has been extended by Ferreira (PRB,78,125116,2008) to address the band gap problem. DFT-1/2 can be used in combination with any XC functional (this method is also referred to as LDA-1/2 or GGA-1/2, depending on the functional used).

The physical picture is that the hole is localized having substantial self energy. Adding an electron to the solid is assumed to go to a very delocalized state with little or no self energy. The method amounts to adding attractive spherical potentials at atomic sites and optimizing the screening parameter for maximal band gap, and can be used on top of any functional, relativistic option and spin option. From this viewpoint the only freedom in the method is the list of active atom types, the ones for which we will add the potential and optimize the gap. The l-dependent potential option from Ferreira is currently not supported.

The simplest approach is to optimize all the atom types. However, one can also look at the character of the top of the valence band, and determine which atoms are contributing to the PDOS there. This can be done by hand by using the bandstructure GUI module. In band there is an option to analyze this automatically, see the Prepare=true sub option.

See also

```
XC
DFTHalf
ActiveAtomType
AtomType string
IonicCharge float
ScreeningCutOffs float_list
End
Enabled Yes/No
Prepare Yes/No
SelfConsistent Yes/No
End
End
```

`XC`

`DFTHalf`

- Type
Block

- Description
DFT-1/2 method for band gaps. See PRB vol 78,125116 2008. This method can be used in combination with any functional. For each active atom type (see ActiveAtomType) Band will perform SCF calculations at different screening cut-off values (see ScreeningCutOffs) and pick the cut-off value that maximizes the band gap. If multiple atom types are active, the screening cut-off optimizations are done one type at the time (in the same order as the ActiveAtomType blocks appear in the input).

`ActiveAtomType`

- Type
Block

- Recurring
True

- Description
Use the DFT-1/2 method for the atom-type specified in this block.

`AtomType`

- Type
String

- Description
Atom-type to use. You can activate all atom-types by specifying ‘All’.

`IonicCharge`

- Type
Float

- Default value
0.5

- Description
The amount of charge to be removed from the atomic HOMO.

`ScreeningCutOffs`

- Type
Float List

- Default value
[0.0, 1.0, 2.0, 3.0, 4.0, 5.0]

- Unit
Bohr

- Description
List of screening cut-offs (to screen the asymptotic IonicCharge/r potential). Band will loop over these values and find the cut-off that maximizes the band-gap. If only one number is provided, Band will simply use that value.

`Enabled`

- Type
Bool

- Default value
No

- GUI name
Use method

- Description
Whether the DFT-1/2 method will be used.

`Prepare`

- Type
Bool

- Default value
No

- Description
Analyze the band structure to determine reasonable settings for an DFT-1/2 calculation. If this is possible the list of active atom types is written to the output. This can be used in a next run as the values for ActiveAtomType. The DFTHalf%Enabled key should be set to false

`SelfConsistent`

- Type
Bool

- Default value
Yes

- Description
Apply the extra potential during the SCF, or only afterwards. Applying DFT-1/2 only post SCF increases the band gap, compared to the self-consistent one.

Here are some results showing that LDA-1/2 can work quite well, but that the TB-mBJ functional works better for this set.

References

- 1
S.H. Vosko, L. Wilk and M. Nusair,

*Accurate spin-dependent electron liquid correlation energies for local spin density calculations: a critical analysis.*Canadian Journal of Physics 58, 1200 (1980).- 2
H. Stoll, C.M.E. Pavlidou and H. Preuß,

*On the calculation of correlation energies in the spin-density functional formalism.*Theoretica Chimica Acta 49, 143 (1978).- 3
A.D. Becke,

*Density-functional exchange-energy approximation with correct asymptotic behavior.*Physical Review A 38, 3098 (1988).- 4
J.P. Perdew and Y. Wang,

*Accurate and simple density functional for the electronic exchange energy: generalized gradient approximation.*Physical Review B 33, 8800 (1986).- 5(1,2)
J.P. Perdew, J.A. Chevary, S.H. Vosko, K.A. Jackson, M.R. Pederson, D.J. Singh and C. Fiolhais,

*Atoms, molecules, solids, and surfaces: Applications of the generalized gradient approximation for exchange and correlation.*Physical Review B 46, 6671 (1992).- 6
C. Adamo and V. Barone,

*Exchange functionals with improved long-range behavior and adiabatic connection methods without adjustable parameters: The mPW and mPW1PW models.*Journal of Chemical Physics 108, 664 (1998).- 7(1,2)
J.P. Perdew, K. Burke and M. Ernzerhof,

*Generalized Gradient Approximation Made Simple.*Physical Review Letters 77, 3865 (1996).- 8
P. Haas, F. Tran, P. Blaha, and K. H. Schwarz,

*Construction of an optimal GGA functional for molecules and solids*, Physical Review B 83, 205117 (2011).- 9
B. Hammer, L.B. Hansen, and J.K.Nørskov,

*Improved adsorption energetics within density-functional theory using revised Perdew-Burke-Ernzerhof functionals.*Physical Review B 59, 7413 (1999).- 10
Y. Zhang and W. Yang,

*Comment on “Generalized Gradient Approximation Made Simple”.*Physical Review Letters 80, 890 (1998).- 11
C. Adamo and V. Barone,

*Physically motivated density functionals with improved performances: The modified Perdew.Burke.Ernzerhof model.*Journal of Chemical Physics 116, 5933 (2002).- 12
N.C. Handy and A.J. Cohen,

*Left-right correlation energy.*Molecular Physics 99, 403 (2001).- 13
J.P. Perdew,

*Density-functional approximation for the correlation energy of the inhomogeneous electron gas.*Physical Review B 33, 8822 (1986).- 14(1,2)
S. Lehtola, C. Steigemann, M.J.T. Oliveira, M.A.L. Marques,

*Recent developments in Libxc – A comprehensive library of functionals for density functional theory*, SoftwareX 7, 1 (2018)- 15
S. Lehtola, M.A.L. Marques,

*Reproducibility of density functional approximations: how new functionals should be reported*, Journal of Chemical Physics 159, 114116 (2023)- 16
B.G. Johnson, P.M.W. Gill and J.A. Pople,

*The performance of a family of density functional methods.*Journal of Chemical Physics 98, 5612 (1993).- 17
T.V. Russo, R.L. Martin and P.J. Hay,

*Density Functional calculations on first-row transition metals.*Journal of Chemical Physics 101, 7729 (1994).- 18
C. Lee, W. Yang and R.G. Parr,

*Development of the Colle-Salvetti correlation-energy formula into a functional of the electron density.*Physical Review B 37, 785 (1988).- 19
M. Swart, A.W. Ehlers and K. Lammertsma,

*Performance of the OPBE exchange-correlation functional.*Molecular Physics 2004 102, 2467 (2004).- 20
R. Neumann, R.H. Nobes and N.C. Handy,

*Exchange functionals and potentials.*Molecular Physics 87, 1 (1996).- 21
J. Tao, J.P. Perdew, V.N. Staroverov and G.E. Scuseria,

*Climbing the Density Functional Ladder: Nonempirical Meta-Generalized Gradient Approximation Designed for Molecules and Solids.*Physical Review Letters 91, 146401 (2003).- 22
Y. Zhao, D.G. Truhlar,

*A new local density functional for main-group thermochemistry, transition metal bonding, thermochemical kinetics, and noncovalent interactions.*Journal of Chemical Physics 125, 194101 (2006).- 23
J.P. Perdew, A. Ruzsinszky, G. I. Csonka, L. A. Constantin, and J. Sun,

*Workhorse Semilocal Density Functional for Condensed Matter Physics and Quantum Chemistry.*, Physical Review Letters 103, 026403 (2009).- 24
J. Sun, J.P. Perdew, and A. Ruzsinszky,

*Semilocal density functional obeying a strongly tightened bound for exchange*, Proceedings of the National Academy of Sciences 112, 685 (2015)- 25
J. Sun, B. Xiao, A. Ruzsinszky,

*Communication: Effect of the orbital-overlap dependence in the meta generalized gradient approximation*, Journal of Chemical Physics 137, 051101 (2012).- 26(1,2)
J. Sun, R. Haunschild, B. Xiao, I.W. Bulik, G.E. Scuseria, J.P. Perdew,

*Semilocal and hybrid meta-generalized gradient approximations based on the understanding of the kinetic-energy-density dependence*, Journal of Chemical Physics 138, 044113 (2013).- 27
J. Sun, A. Ruzsinszky, J.P. Perdew,

*Strongly Constrained and Appropriately Normed Semilocal Density Functional*, Physical Review Letters 115, 036402 (2015).- 28(1,2)
J.P. Perdew, A. Ruzsinszky, G.I. Csonka, O.A. Vydrov, G.E. Scuseria, L.A. Constantin, X. Zhou and K. Burke,

*Restoring the Density-Gradient Expansion for Exchange in Solids and Surfaces.*Physical Review Letters 100, 136406 (2008).- 29
S. Grimme, S. Ehrlich, and L. Goerigk,

*Effect of the Damping Function in Dispersion Corrected Density Functional Theory*, Journal of Computational Chemistry 32, 1456 (2011).- 30(1,2)
J.G. Brandenburg, J.E. Bates, J. Sun, and J.P. Perdew,

*Benchmark tests of a strongly constrained semilocal functional with a long-range dispersion correction*, Physical Review B 94, 115144 (2016)- 31
S. Grimme, J. Anthony, S. Ehrlich, and H. Krieg,

*A consistent and accurate*ab initio*parametrization of density functional dispersion correction (DFT-D) for the 94 elements H-Pu*, The Journal of Chemical Physics 132, 154104 (2010).- 32(1,2)
S. Grimme,

*Semiempirical GGA-Type Density Functional Constructed with a Long-Range Dispersion Correction.*Journal of Computational Chemistry 27, 1787 (2006).- 33(1,2)
E. Caldeweyher, S. Ehlert, A. Hansen, H. Neugebauer, S. Spicher, C. Bannwarth, S. Grimme,

*A Generally Applicable Atomic-Charge Dependent London Dispersion Correction Scheme*, J. Chem. Phys., 2019, 150, 154122- 34
E. Caldeweyher, J.-M. Mewes, S. Ehlert, S. Grimme,

*Extension and evaluation of the D4 London-dispersion model for periodic systems*, Phys. Chem. Chem. Phys., 2020, 22, 8499-8512- 35
R. van Leeuwen and E.J. Baerends,

*Exchange-correlation potential with correct asymptotic behavior.*Physical Review A 49, 2421 (1994).- 36(1,2)
F. Tran, and P. Blaha,

*Accurate Band Gaps of Semiconductors and Insulators with a Semilocal Exchange-Correlation Potential*, Physical Review Letters 102, 226401 (2009).- 37
T. Lebeda, T. Aschebrock, and S. Kümmel,

*First steps towards achieving both ultranonlocality and a reliable description of electronic binding in a meta-generalized gradient approximation*, Phys. Rev. Research 4, 023061 (2022)- 38
D. Koller, F. Tran, and P. Blaha,

*Improving the Modified Becke-Johnson Exchange Potential.*, Physical Review B 83, 155109 (2012).- 39
R. A.Jishi, O. B. Ta, and A. Sharif,

*Modeling of Lead Halide Perovskites for Photovoltaic Applications.*, Archive.- 40(1,2)
M. Kuisma, J. Ojanen, J. Enkovaara, and T.T. Rantala,

*Kohn-Sham potential with discontinuity for Band gap materials*, Physical review B 82, 115106 (2010).- 41
J.B. Krieger, Yan Li, G.J. Iafrate,

*Derivation and application of an accurate Kohn-Sham potential with integer discontinuity*, Physics Letters A 8, 146 (1990)- 42
M.A.L. Marques, M.J.T. Oliveira, and T. Burnus,

*Libxc: a library of exchange and correlation functionals for density functional theory*, Computer Physics Communications 183, 2272 (2012).- 43(1,2)
J. Heyd, G.E. Scuseria and M. Ernzerhof,

*Hybrid functionals based on a screened Coulomb potential*, J. Chem. Phys. 118, 8207 (2003).- 44
V.I. Anisimov, F. Aryasetiawan, and A.I. Lichtenstein,

*First-principles calculations of the electronic structure and spectra of strongly correlated systems: the LDA + U method*, Journal Physics: Condensed Matter 9, 767 (1997).- 45
M. Cococcioni, and S. de Gironcoli,

*Linear response approach to the calculation of the effective interaction parameters in the LDA+U method*, Physical Review B 71, 035105 (2005).- 46
Zeng-hui Yang, Haowei Peng, Jianwei Sun, and John P. Perdew,

*More realistic band gaps from meta-generalized gradient approximations: Only in a generalized Kohn-Sham scheme*, Physical Review B 93, 205205 (2016).
