High-resolution X-ray absorption spectroscopy of iron carbonyl complexes

X-ray spectroscopy has become a commonly used tool to probe to structure of transition metal complexes, allowing for element-specific measurements. Conventional X-ray absorption spectroscopy (XAS) masurement transmission like UV-Vis, however this methodology is subject to very strong spectral-peak broadening due to the short lifetime of the core hole. High-energy resolution fluorescence detection XAS (HERFD-XAS) offers an alternative method of measurement, reducing lifetime broadening and thereby showing more detail in the spectra.

In a recent study on iron carbonyl complexes, containing both polyiron and substituted complexes, HERFD-XAS spectra were measured and rationalized by TDDFT calculations in ADF. These complexes were chosen as they are considered well characterized and are a textbook example of transition metal complexes. It was shown that pre-edge peaks, assigned by TDDFT calculations, can be used to distinguish between different transition metal complexes, in particular the different iron-iron interactions. The combination of different XAS methods offers a unique way to probe both the ligand environment and the electronic structure of iron carbonyls in situ during catalytic processes.

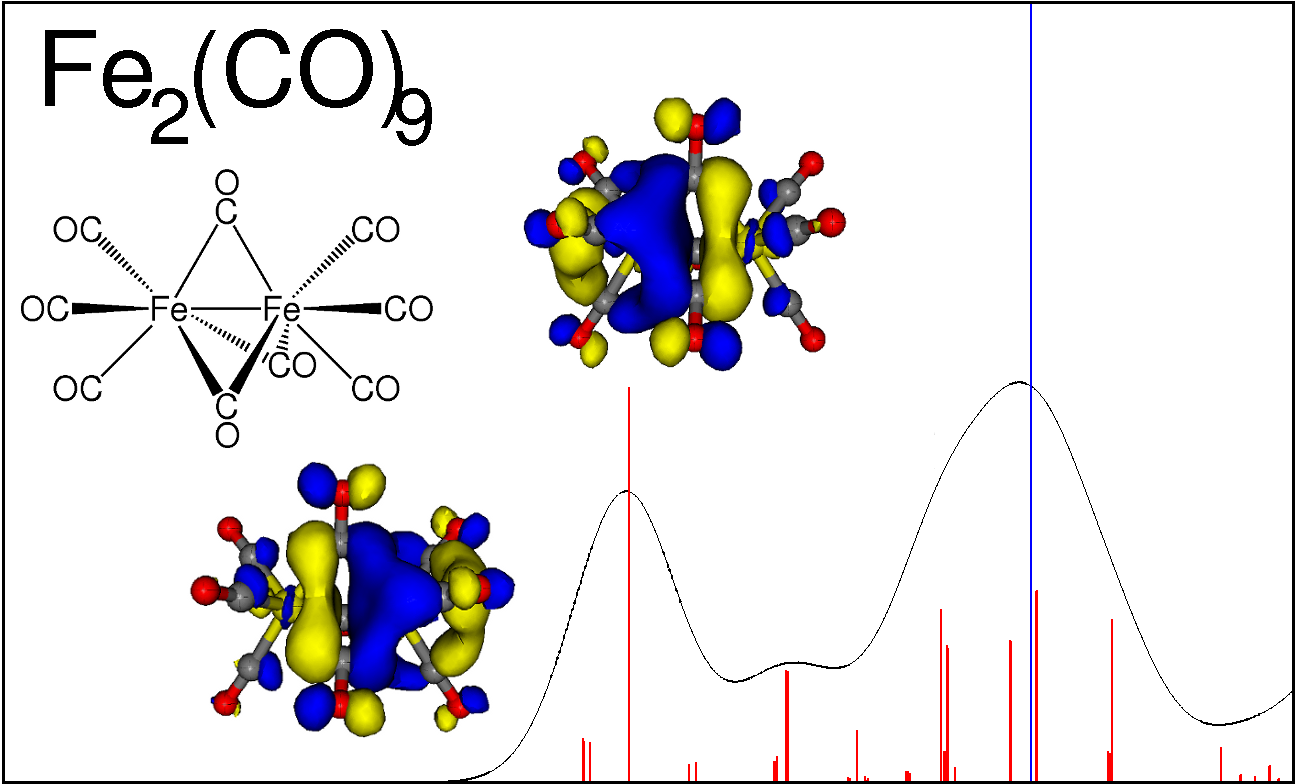

Calculated X-ray absorption spectrum for Fe2(CO)9 (absorption peaks in red, ionization blue, Gaussian-broadened spectrum in black). The two pre-edge peaks on the left are observed in the HERFD-XAS spectrum. Also shown are the two unoccupied orbitals invovled in these pre-edges (1s→3d).

Do you want try for yourself? Request a free 30-day evaluation for the whole Amsterdam Modeling Suite.

Newsletter: tips & tricks, highlights, events

Would you like to keep up to date with the latest developments in the Amsterdam Modeling Suite and the SCM team, learn more about new applications and functionality?
Subscribe to our newsletter!

You have already subscribed. Thank you! If you don't receive our newsletters, send us an email.

X-ray absorption spectroscopy, HERFD-XAS, TDDFT

A. J. Atkins, M. Bauer, and C. R. Jacob, High-resolution X-ray absorption spectroscopy of iron carbonyl complexes, Phys. Chem. Chem. Phys. 17, 13937-13948 (2015)
