Building Liquids and Gases

Introduction

This tutorial uses the new Builder introduced in AMS2025.

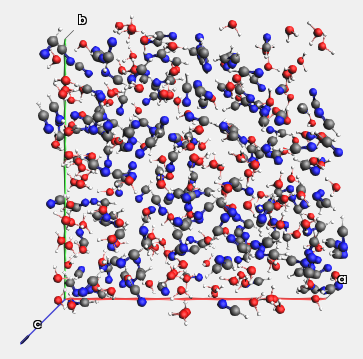

This tutorial shows how to build liquids and gases, and solid-liquid and solid-gas interfaces.

/scm-uploads/doc/Tutorials/_images/toc.png

The packing is done using the Packmol program, that is included with AMS. The interface to Packmol is integrated into AMSinput under Edit → Builder.

See also

Documentation for Builder

The two most important starting modes of the Builder

The Builder can either create an entirely new system or pack around atoms in an existing system, depending on the current system when the Builder is started.

  1. Packing in an empty box: The Builder is started for an empty system. The Builder will then pack the molecules and modify the lattice vectors of the system.

  2. Packing inside the crystal: The Builder is started for a non-empty 3D-periodic system. The Builder will then pack molecules around the existing system, into a space defined by the lattice vectors. The lattice vectors will not change.

For more details, see the Builder documentation.

The Builder has flexible input

The Builder has flexible input. This means that you specify only some of the input options, and appropriate or approximate values for the remaining input options will be automatically determined.

Liquid water

Start the Builder

Start a new AMSinput window: SCM → New Input
Switch from ADFPanel → ForceFieldPanel
Edit → Builder (keyboard shortcut: Ctrl-B)

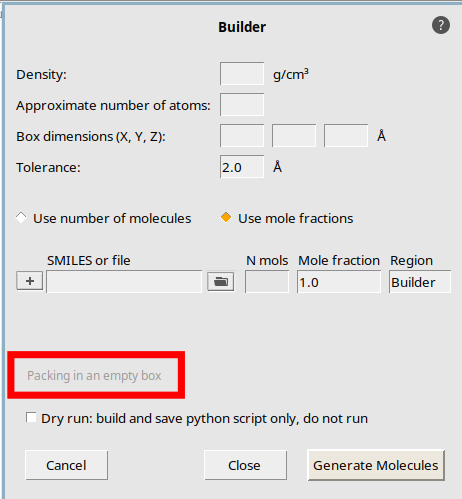

This starts the builder in the Packing in empty box mode.

/scm-uploads/doc/Tutorials/_images/builder_empty.png

Tip

Activate the engine that you want to use for your calculation before starting the Builder, for example by switching from ADFPanel → ForceFieldPanel.

Why? The Builder is most commonly used to build a 3D-periodic system. However, the ADF engine (default in AMSinput) cannot handle 3D-periodic systems. If the ADF engine is active when you start the builder, then the lattice vectors will be removed when you close the builder, since ADF cannot handle them.

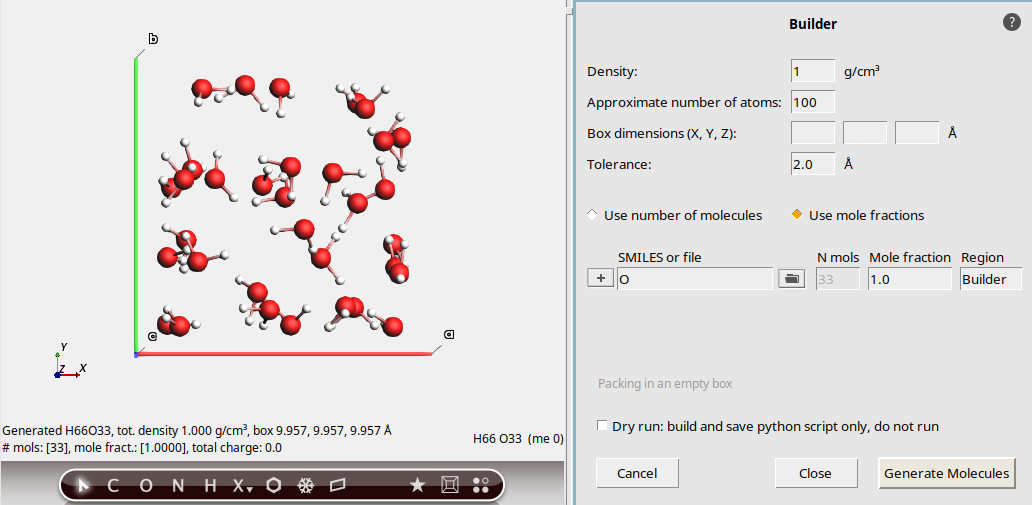

Density, number of atoms, SMILES

Set Density to 1.0 g/cm3
Set Approximate number of atoms to 100
Set SMILES or file to O (capital letter O, which is the SMILES code for water)
Click Generate molecules

This updates the molecule view on the left hand side.

/scm-uploads/doc/Tutorials/_images/water_100atoms.png

Always double-check results

You should always double-check the results from the Builder.

  • No box bounds were specified, so a cubic system is created with a volume that matches the specified density.

  • We specified 100 atoms. The Builder translated this into 33 water molecules, giving a total of 99 atoms. When specifying the number of atoms, it is always approximate.

In the bottom-left corner, some information about the new system is printed, for example the total density and lattice vectors.

Rerun with different settings

Clicking the Generate molecules button a second time will discard the previous run and rerun with the new settings.

Tick Use number of molecules
Set N mols to 50
Click Generate molecules

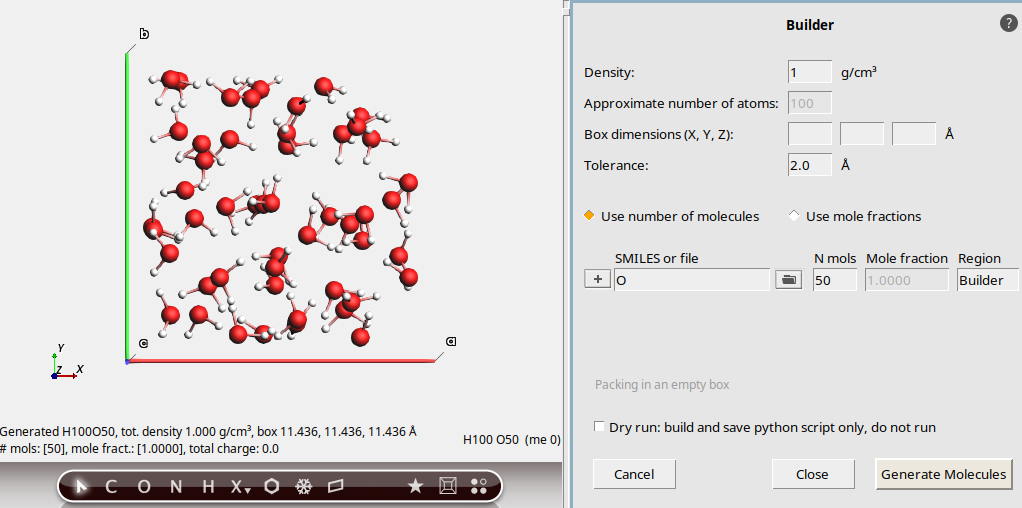

This updates the molecule view on the left. There are now 50 water molecules instead.

/scm-uploads/doc/Tutorials/_images/builder_50mols.png

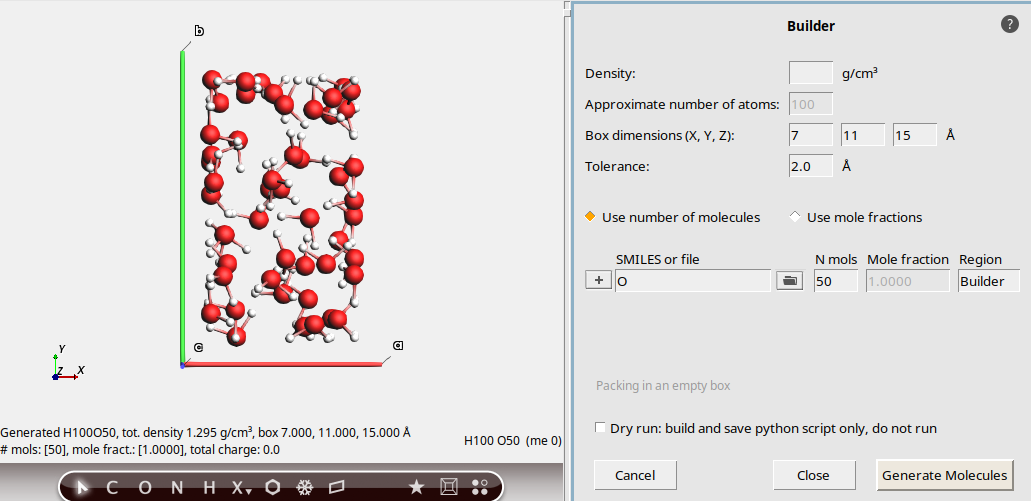

Pack in a custom box

Set Density to be empty
Set Box dimensions to 7, 11, 15 Å
Click Generate molecules

This packs 50 water molecules into a box of the specified dimensions.

You can see the density at the bottom left.

/scm-uploads/doc/Tutorials/_images/builder_orthorhombic.png

Guess the density

The Builder can guess a meaningful density. However, this density is often quite inaccurate. If you use this feature, always make sure to equilibrate the density with for example an NPT molecular dynamics simulation at a given pressure and temperature.

Set Density to be empty
Set Box dimensions to be empty
Click Generate Molecules

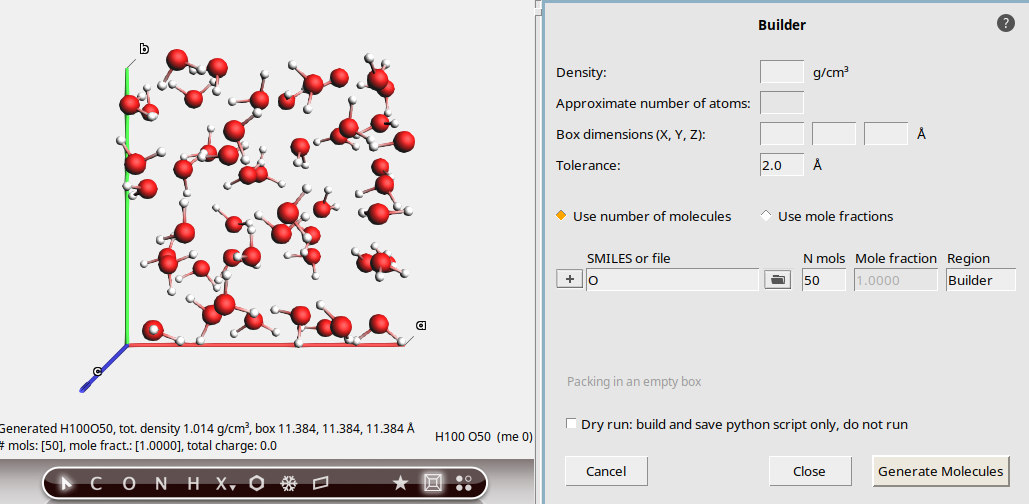

This generates a cubic box of 50 water molecules with density 1.13 g/cm3.

/scm-uploads/doc/Tutorials/_images/builder_guessdensity.png

There are also more possible combinations of input options. Feel free to experiment with different possibilities.

Close the builder

Click the Close button

This brings you back to the main AMSinput window. The periodicity of the system is set to Bulk and the lattice vectors match those from the builder:

Go to the Model → Lattice panel to inspect the lattice vectors

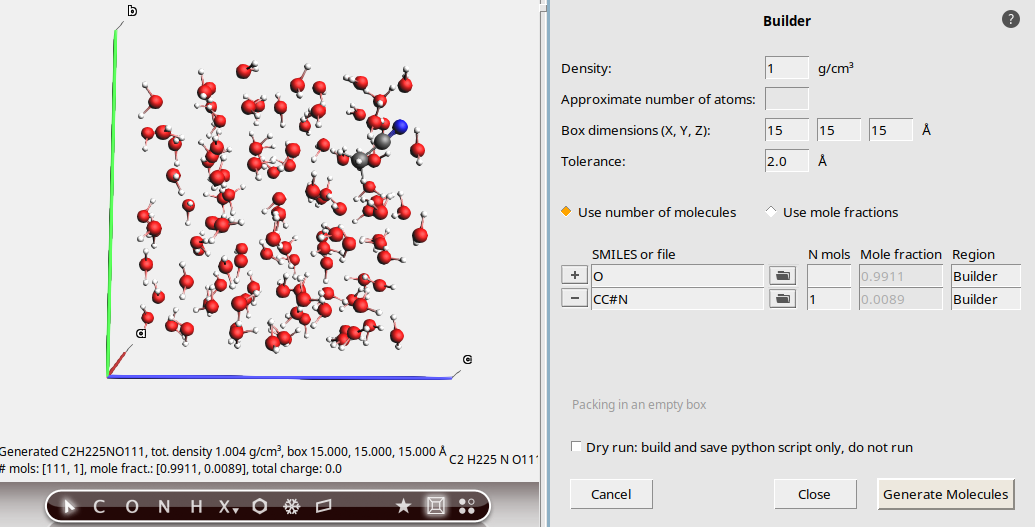

Mixture of water and acetonitrile

Start a new AMSinput window: SCM → New Input
Switch from ADFPanel → ForceFieldPanel
Edit → Builder

This starts the builder in the Packing in empty box mode.

Mole fractions, AMS structure library

To build a water-acetointrile mixture, we could use the SMILES codes (O and C#N) as before. However, here we demonstrate how to import structures from the AMS structure library.

Set Density to 0.8 g/cm3
Set Approximate number of atoms to 300
In SMILES or file, type water and click on the first match in the popup. The text will change to SCM/Water.xyz
Set Mole fraction to 1.0
Click the AddButton button to add a new molecule
In SMILES or file, type acetonitrile and click on the first match in the popup. The text will change to SCM/Acetonitrile.xyz
Set Mole fraction to 2.0
Click on Generate Molecules

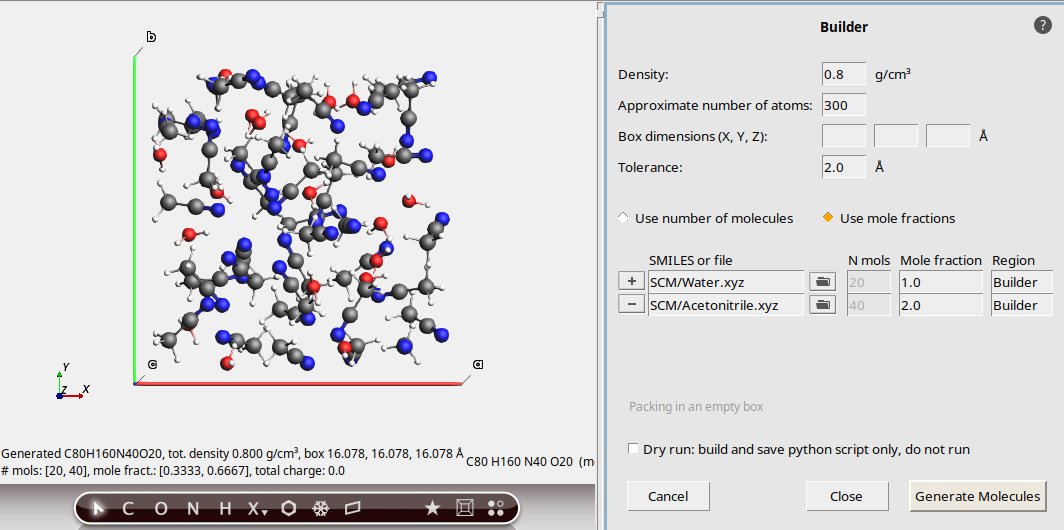

With these settings, the Builder will attempt to pack water and acetonitrile in a 1:2 ratio.

/scm-uploads/doc/Tutorials/_images/builder_mixture300.png

The resulting system has 20 water molecules and 40 acetonitrile molecules, the density is as specified, and the number of atoms happens to be exactly 300. How successful!

The mole fractions are always approximate

Just like the number of atoms are approximate, so are the mole fractions:

Set Approximate number of atoms to 200
Click on Generate Molecules

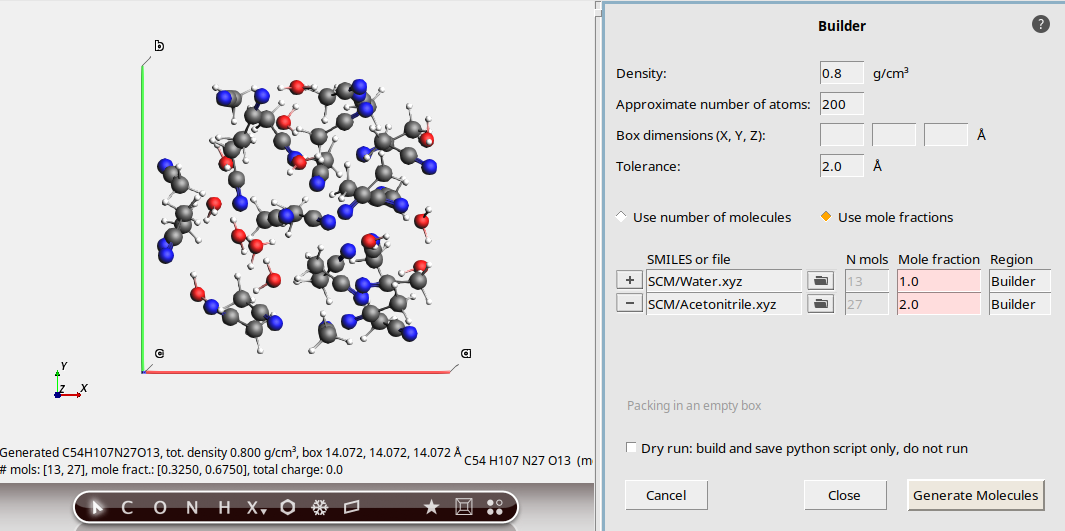

This replaces the system, but the Mole fraction column is now highlighted in red. This indicates that the mole fractions in the final system do not exactly match the input mole fractions.

/scm-uploads/doc/Tutorials/_images/builder_red.png

In the greyed-out N mols column, you can see that the Builder packed 13 water molecules and 27 acetonitrile molecules. So the ratio is not exactly 1:2.

The Builder deviated from the specified mole fractions to more closely match the requested number of atoms, which was set to 200.

Select → Select All

This shows that the system has 201 atoms.

Manually modify the number of molecules to get correct mole fractions

If you want to ensure that the ratio of water:acetonitrile is exactly 1:2, you must specify the number of molecules. In this case, we just need to subtract 1 from the number of acetonitrile:

Tick Use number of molecules
For acetonitrile, set N mols to 26
Click on Generate Molecules

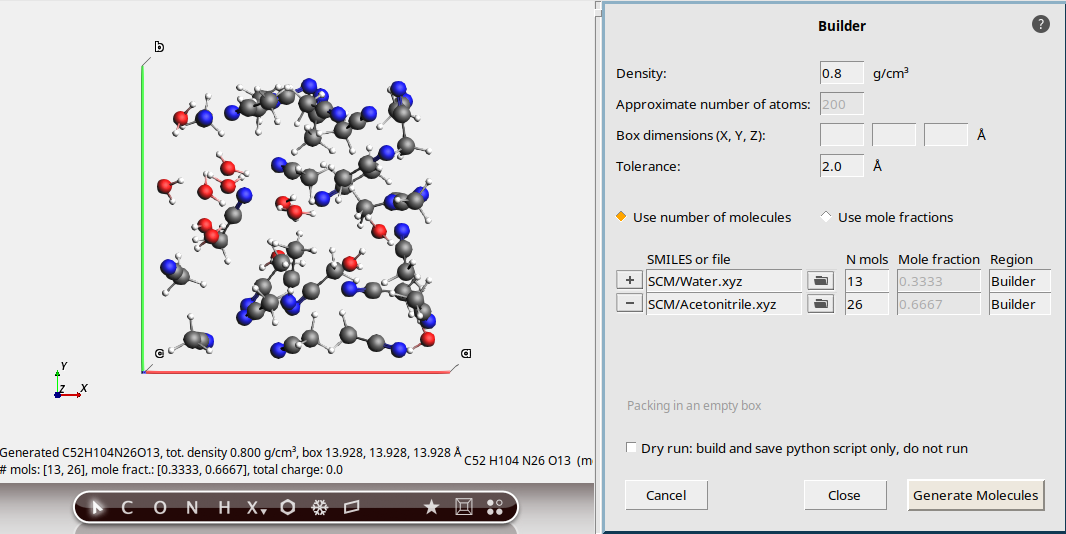

This gives a 1:2 water:acetonitrile mixture.

/scm-uploads/doc/Tutorials/_images/builder_mixture_1_2.png

Adjust the tolerance for tighter packing

It is usually quite easy for the Builder pack small molecules like water and acetonitrile.

For larger molecules, the packing may either fail, or take a very long time. There are several possible solutions to this:

  • Decrease the density

  • Provide larger box dimensions

  • Decrease the tolerance

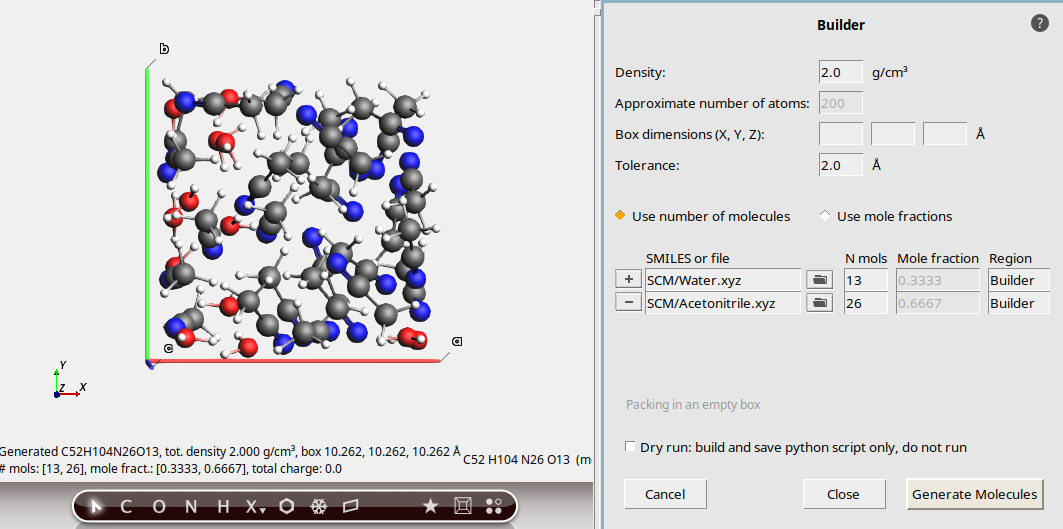

Let’s illustrate the effect of the tolerance. We will keep the water-acetonitrile example, but try to pack at higher density:

Set Density to 2.0 g/cm3
Click on Generate Molecules
/scm-uploads/doc/Tutorials/_images/highdensity.png

Note that it takes quite some time for the packing to finish.

This is an unrealistically high density for this mixture. We can make the job of the Builder easier by decreasing the Tolerance. This will allow the Builder to use smaller intermolecular distances.

Set Tolerance to 1.5 Å
Click on Generate Molecules

Now the packing was successful much faster.

Warning

If you specify very high densities, the Builder may cause molecules to overlap. Always check that the density is reasonable.

Pack around an existing system

If you have a 3D-periodic system with at least 1 atom in it, the Builder will start in the Packing inside crystal mode:

SCM → New Input
ADFPanel → ForceFieldPanel
Copy and paste the below coordinates into AMSinput
System
    Atoms
        Cu 7.23252386 0.0 7.9157655282
        Cu 5.95619612 0.7368881643 10.0
        Cu 4.67986838 1.4737763257 12.0842344718
        Cu 7.23252386 1.4737763257 12.0842344718
        Cu 0.85088516 0.7368881643 10.0
        Cu 2.1272129 0.0 7.9157655282
        Cu 3.40354064 3.6844408157 12.0842344718
        Cu 4.67986838 2.9475526543 10.0
        Cu 5.95619612 2.21066449 7.9157655282
        Cu 2.1272129 1.4737763257 12.0842344718
        Cu 3.40354064 0.7368881643 10.0
        Cu 4.67986838 0.0 7.9157655282
        Cu 0.85088516 3.6844408157 12.0842344718
        Cu 2.1272129 2.9475526543 10.0
        Cu 3.40354064 2.21066449 7.9157655282
        Cu 5.95619612 3.6844408157 12.0842344718
        Cu 7.23252386 2.9475526543 10.0
        Cu 0.85088516 2.21066449 7.9157655282
    End
    Lattice
        7.65796644 0.0 0.0
        0.0 4.42132898 0.0
        0.0 0.0 20.0
    End
End

This is a Cu(111) slab with a vacuum gap long the z direction. The unit cell is orthorhombic with vectors parallel to x, y, and z.

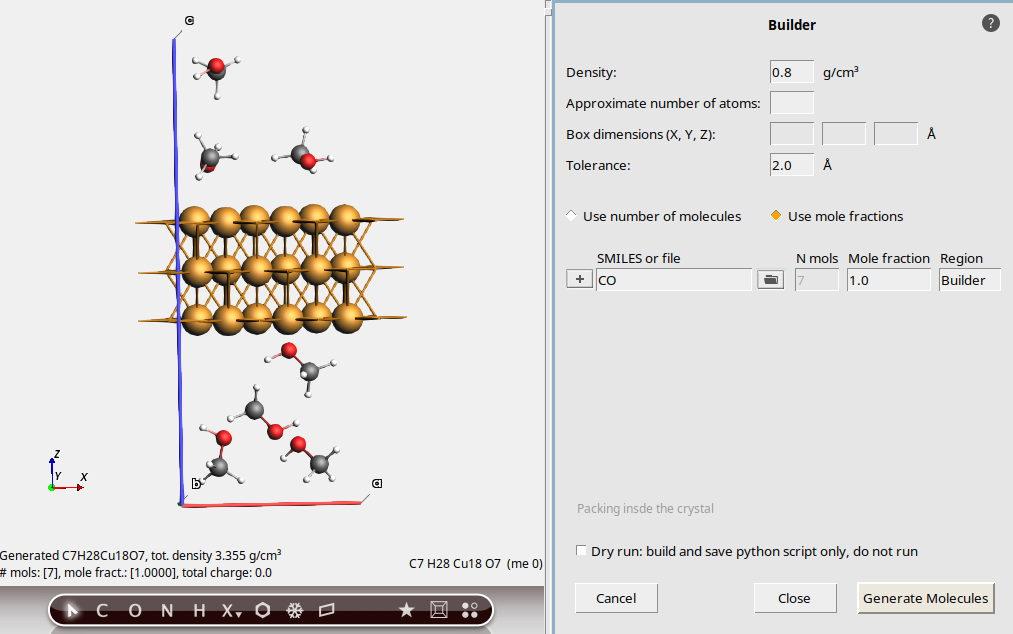

Edit → Builder
Set Density to 0.8 g/cm3
Set SMILES or file to CO (SMILES code for methanol)
Click on Generate Molecules
/scm-uploads/doc/Tutorials/_images/orthorhombic_around.png

This packs 7 methanol molecules into the vacuum region. The density is approximately 0.8 g/cm3. An estimate is made for the available free volume to pack the molecules in. This can be quite inaccurate, especially if the original system is not a metal. Moreover, the estimate does not take any surface interactions between the surface and the methanol into account.

For better control of the number of water molecules, tick Use number of molecules and set N mols. As before, clicking Generate molecules multiple times will discard the last build and rerun with new settings.

Set Density to be empty
Tick Use number of molecules
Set N mols to 7 (it should already be filled in)
Click on Generate Molecules

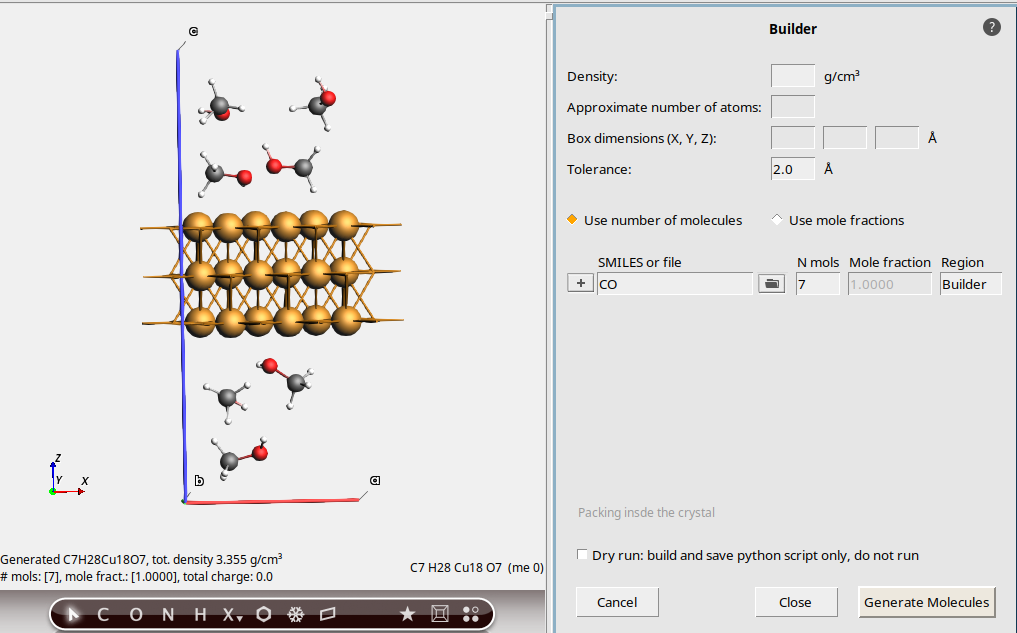

This adds 7 methanol molecules into the vacuum region.

/scm-uploads/doc/Tutorials/_images/orthorhombic_nmols_around.png

Recommendation: If possible, always specify the number of molecules when packing around a system and do not rely on the estimation of the density.

Builder results are even more approximate for non-orthorhombic unit cells

SCM → New Input
ADFPanel → ForceFieldPanel
Copy and paste the below coordinates into AMSinput
System
    Atoms
        Cu 2.127212899986092 1.473776325712727 12.08423447177468
        Cu 2.127212899986094 2.947552654287273 9.999999999999943
        Cu 3.403540640027812 2.21066449 7.91576552822538
        Cu 3.403540639986093 3.684440815712728 12.08423447177468
        Cu 5.956196119986094 0.7368881642872729 9.999999999999943
        Cu 7.232523860027812 0.0 7.91576552822538
        Cu 4.679868379986093 1.473776325712727 12.08423447177468
        Cu 4.679868379986095 2.947552654287273 9.999999999999943
        Cu 5.956196120027814 2.21066449 7.91576552822538
        Cu -1.701770320013906 3.684440815712728 12.08423447177468
        Cu 0.8508851599860943 0.7368881642872729 9.999999999999943
        Cu 2.127212900027812 0.0 7.91576552822538
        Cu -0.4254425800139062 1.473776325712727 12.08423447177468
        Cu -0.4254425800139054 2.947552654287273 9.999999999999943
        Cu 0.8508851600278127 2.21066449 7.91576552822538
        Cu 0.8508851599860932 3.684440815712728 12.08423447177468
        Cu 3.403540639986094 0.7368881642872729 9.999999999999943
        Cu 4.679868380027812 0.0 7.91576552822538
    End
    Lattice
        7.657966439999999 0.0 0.0
        -2.55265548 4.42132898 0.0
        0.0 0.0 20.0
    End
End

This is now a hexagonal unit cell, where one of the lattice vector angles is 120 degrees. However, the volume is exactly the same as in the previous case.

Edit → Builder
Set Density to 0.8 g/cm3
Tick Use mole fractions
Set SMILES or file to CO (SMILES for methanol)
Click Generate Molecules

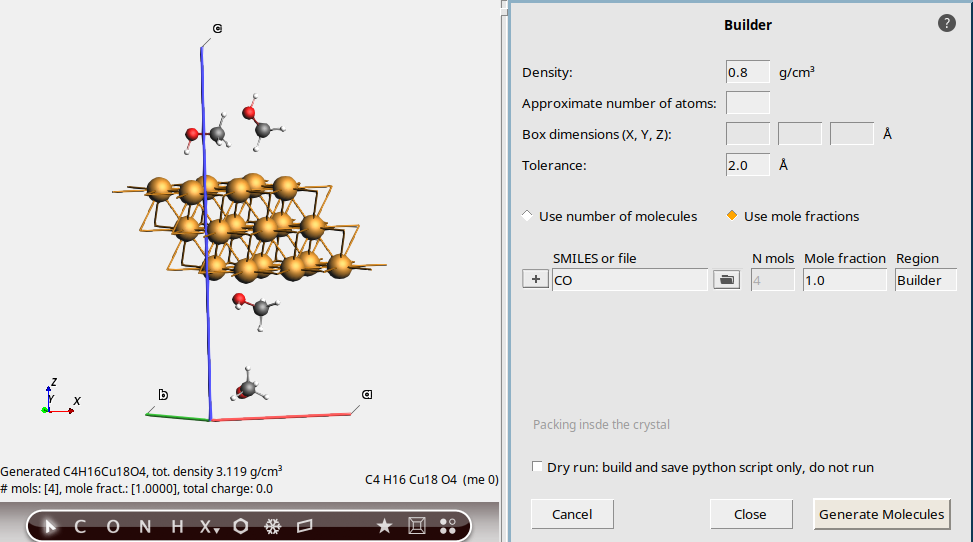

Intuitively we would expect to get 7 methanol molecules, just like before.

However, we get fewer than 7.

/scm-uploads/doc/Tutorials/_images/nonortho_density.png
Click Generate Molecules multiple times and note the number of methanol molecules

For a non-orthorhombic cell like this, the molecules are packed into a surrounding box, and any molecules that are outside the unit cell are removed. As a result, you typically get fewer molecules packed than for orthorhombic cells.

This is true even if you specify the number of molecules:

Set Density to be empty
Tick Use number of molecules
Set N Mols to 7
Click on Generate molecules

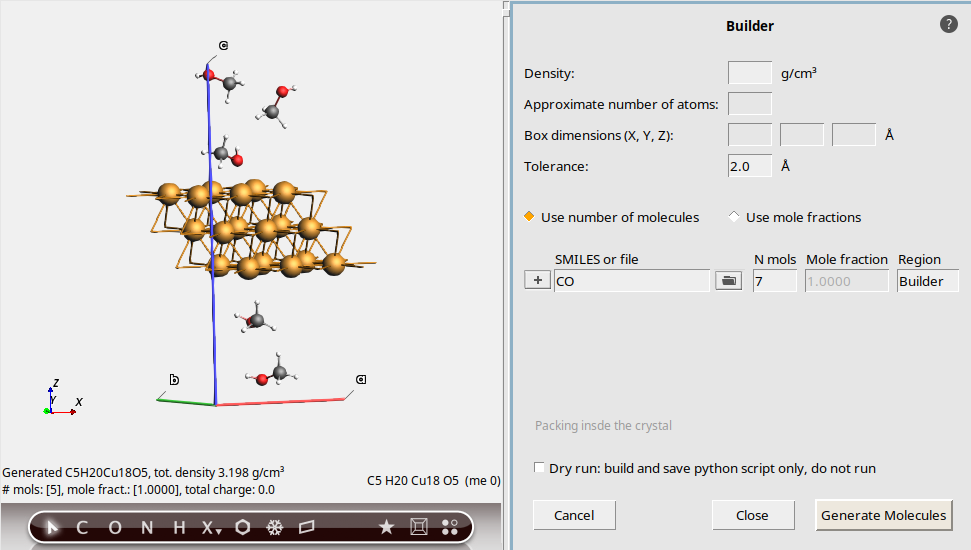

You still get fewer than 7 molecules!

/scm-uploads/doc/Tutorials/_images/nonortho_nmols.png

Recommendation: Be extra careful about using the Builder with non-orthorhombic cells. You usually get fewer molecules than you ask for.

Next steps

Some features of the Builder are demonstrated in other tutorials.

To run the Builder from Python, see the PLAMS packmol function.

More details can be found in the Builder documentation
