Mode Tracking vs. Full Normal Modes with ADF¶
Displacements of the selected C=O mode.¶
Requires: AMS2026 or later
Related documentation
Related tutorials
Method: ADF/PBE/DZ with large frozen core. Dydrogesterone was constructed from the requested SMILES. ChemicalSystem bond orders and ring membership identified the non-ring C=O as C2–O3 (1-based), assigned to region CO.

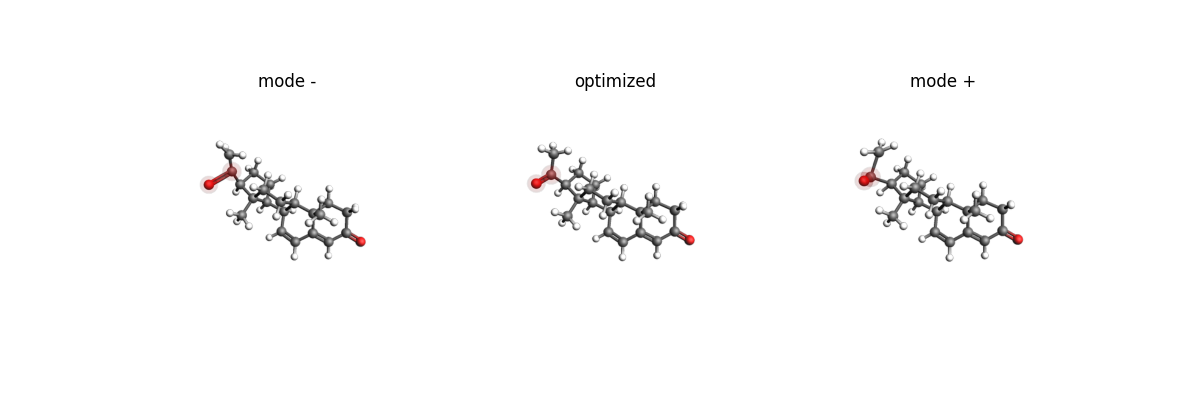

Mode displacement image¶

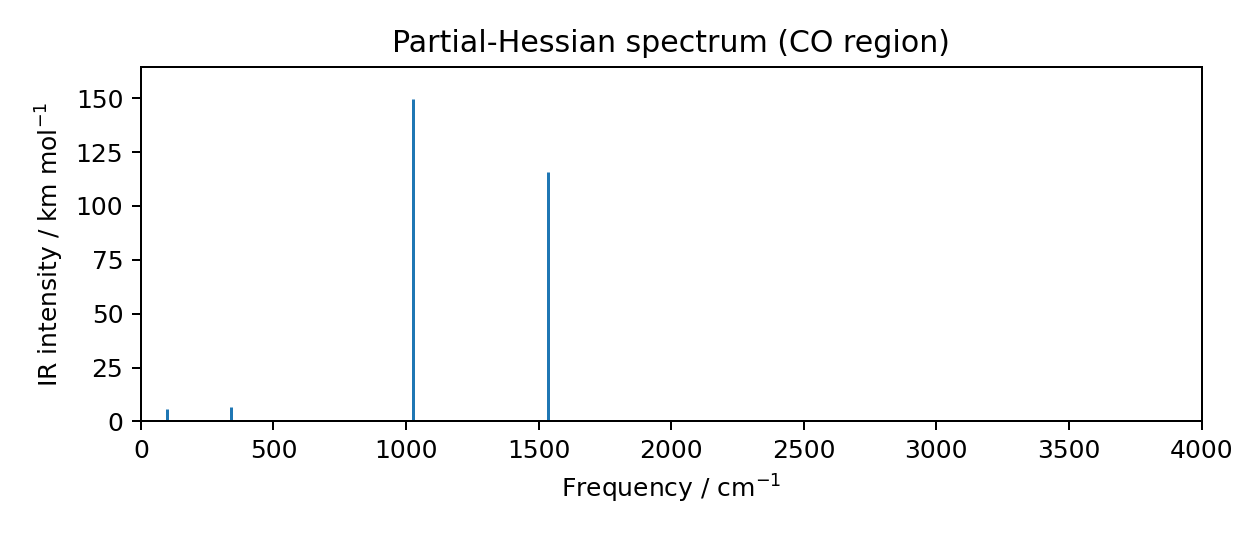

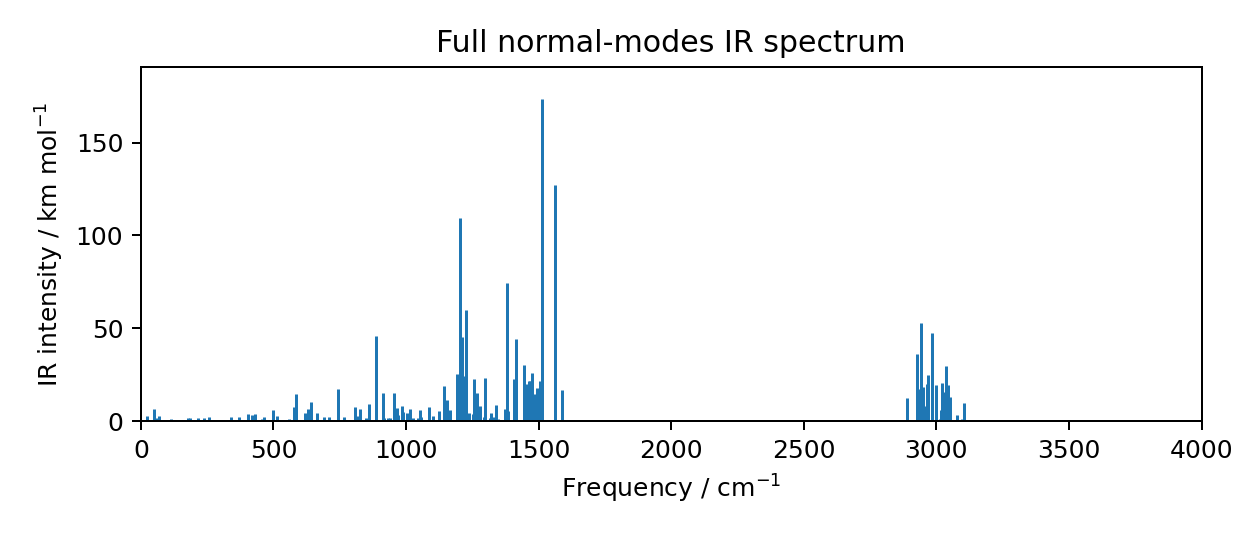

IR spectra¶
Selected C=O mode¶
calculation |
mode |
frequency_cm-1 |
intensity_km/mol |
CO_displacement_fraction |
|---|---|---|---|---|
Partial Hessian guess |
153 |
1533.738 |
115.744 |
1.000 |
Mode tracking |
1 |
1562.423 |
86.508 |
0.374 |
Full normal modes (best overlap) |
117 |
1560.353 |
83.544 |
0.350 |
Timings¶
job |
description |
wall_s |
|---|---|---|
01_opt |
Geometry optimization |
348.0 |
02_partial_hessian |
CO-region partial Hessian |
131.0 |
03_mode_tracking |
Mode tracking from mode 153 |
440.0 |
04_full_normal_modes |
Full normal modes |
1803.0 |
partial+mode_tracking |
Selective workflow |
571.0 |
Selective partial-Hessian + mode-tracking time = 571.0 s vs full normal modes = 1803.0 s, speedup = 3.16x.
Conclusion¶
Mode tracking gives a C=O frequency and intensity very close to the corresponding full normal-mode result, while requiring much less wall time than the full Hessian.
Provenance and inputs¶
opt: 01-run_workdir/01_opt¶
Geometry optimization at ADF/PBE/DZ large core.
Task GeometryOptimization
System
Atoms
