Benchmarking Reaction Energies across Basis Sets

ADF Benchmark Reaction energy Basis sets

Run reaction-energy workflow with multiple basis sets and compare the resulting trends in a reproducible PLAMS benchmark.

Downloads: Notebook | Script ?

Requires: AMS2027 or later

Related examples

• Benchmarking Reaction Energies across AMS Engines

Related tutorials

• Python Getting Started tutorial

• Accurate XC functionals tutorial

Related documentation

• ADF basis sets and atomic fragments

• AMS single-point task

Initial Imports

import sys
import multiprocessing
from scm.base import ChemicalSystem
from scm.inputs import ADF, AMS
from scm.plams import (
    JobRunner,
    config,
    AMSJob,
    JobAnalysis,
    jobs_in_directory,
    view,
    plot_image_grid,
)
import numpy as np

Set Up Job Runner

Set up job runner, running as many jobs as possible in parallel.

config.default_jobrunner = JobRunner(parallel=True, maxjobs=multiprocessing.cpu_count())
config.job.runscript.nproc = 1

Set Up Molecules

Create the molecules we want to use in our benchmark from SMILES.

# The molecules we want to use in our benchmark:
mol_smiles = {"Methane": "C", "Ethane": "C-C", "Ethylene": "C=C", "Acetylene": "C#C"}
molecules = {}
for name, smiles in mol_smiles.items():
    # Compute 10 conformers, optimize with UFF and pick the lowest in energy.
    system = ChemicalSystem.from_smiles(smiles, optimize_with_uff=True, num_trial_conformers=10)
    # The System block's Symmetrize option is not part of the typed input model,
    # so symmetry cleanup of the geometry is now a ChemicalSystem operation.
    system.symmetrize()
    molecules[name] = system

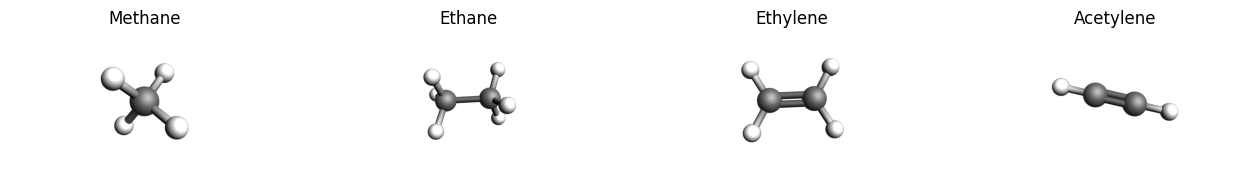

plot_image_grid({k: view(v, direction="along_pca3") for k, v in molecules.items()}, rows=1);

Initialize Calculation Settings

Set up the settings which are common across jobs. The basis type is added later for each job.

common_settings = AMS(Task="SinglePoint")
common_settings.Engine = ADF()
common_settings.Engine.Basis.Core = "None"

basis = ["QZ4P", "TZ2P", "TZP", "DZP", "DZ", "SZ"]
reference_basis = "QZ4P"

Run Calculations

results = {}
jobs = []
for bas in basis:
    for name, molecule in molecules.items():
        with jobs_in_directory(name):
            settings = common_settings.copy()
            settings.Engine.Basis.Type = bas
            job = AMSJob(name=f"{name}_{bas}", molecule=molecule, settings=settings)
            jobs.append(job)
            results[(name, bas)] = job.run()

for job in jobs:
    job.ok()

[19.10|12:14:47] JOB Methane_QZ4P STARTED
[19.10|12:14:47] JOB Ethane_QZ4P STARTED
[19.10|12:14:47] JOB Ethylene_QZ4P STARTED
[19.10|12:14:47] JOB Acetylene_QZ4P STARTED
[19.10|12:14:47] JOB Methane_TZ2P STARTED
[19.10|12:14:47] JOB Ethane_TZ2P STARTED
[19.10|12:14:47] JOB Ethylene_TZ2P STARTED
[19.10|12:14:47] JOB Methane_QZ4P RUNNING
[19.10|12:14:47] JOB Ethane_QZ4P RUNNING
[19.10|12:14:48] JOB Acetylene_TZ2P STARTED
... output trimmed ....
[19.10|12:14:56] JOB Ethylene_TZP SUCCESSFUL
[19.10|12:14:56] JOB Acetylene_DZ SUCCESSFUL
[19.10|12:14:56] JOB Ethylene_SZ FINISHED
[19.10|12:14:56] JOB Ethylene_SZ SUCCESSFUL
[19.10|12:14:56] JOB Ethane_SZ FINISHED
[19.10|12:14:56] JOB Ethane_SZ SUCCESSFUL
[19.10|12:14:56] JOB Ethylene_DZ FINISHED
[19.10|12:14:56] JOB Ethylene_DZ SUCCESSFUL
[19.10|12:14:56] JOB Acetylene_DZP FINISHED
[19.10|12:14:56] JOB Acetylene_DZP SUCCESSFUL

Results

Extract the energy from each calculation. Calculate the average absolute error in bond energy per atom for each basis set.

import pandas as pd

results = []
for job in jobs:
    mol = job.results.get_main_system()
    results.append(
        {
            "Formula": mol.formula(),
            "Basis": job.settings.input.Engine.Basis.Type,
            "NAtoms": len(mol),
            "Energy": job.results.get_energy(unit="kcal/mol"),
        }
    )

results_df = pd.DataFrame(results)
results_df

	Formula	Basis	NAtoms	Energy
0	CH4	QZ4P	5	-572.626762
1	C2H6	QZ4P	8	-973.019469
2	C2H4	QZ4P	6	-770.413350
3	C2H2	QZ4P	4	-556.759051
4	CH4	TZ2P	5	-572.110159
5	C2H6	TZ2P	8	-971.882017
6	C2H4	TZ2P	6	-769.432902
7	C2H2	TZ2P	4	-555.667288
8	CH4	TZP	5	-571.044897
9	C2H6	TZP	8	-970.075887
10	C2H4	TZP	6	-767.327516
11	C2H2	TZP	4	-552.956282
12	CH4	DZP	5	-569.119016
13	C2H6	DZP	8	-966.091643
14	C2H4	DZP	6	-764.413297
15	C2H2	DZP	4	-550.646178
16	CH4	DZ	5	-560.934431
17	C2H6	DZ	8	-951.166693
18	C2H4	DZ	6	-750.174509
19	C2H2	DZ	4	-537.100799
20	CH4	SZ	5	-723.550123
21	C2H6	SZ	8	-1216.914229
22	C2H4	SZ	6	-934.655819
23	C2H2	SZ	4	-647.502978

ref_results_df = results_df[results_df["Basis"] == "QZ4P"]
comp_results_df = results_df[results_df["Basis"] != "QZ4P"]
comp_results_df = comp_results_df.merge(ref_results_df, on="Formula", suffixes=["", " (Ref)"])
comp_results_df["Average Error"] = (
    abs(comp_results_df["Energy"] - comp_results_df["Energy (Ref)"]) / comp_results_df["NAtoms"]
)
comp_results_df

	Formula	Basis	NAtoms	Energy	Basis (Ref)	NAtoms (Ref)	Energy (Ref)	Average Error
0	CH4	TZ2P	5	-572.110159	QZ4P	5	-572.626762	0.103321
1	CH4	TZP	5	-571.044897	QZ4P	5	-572.626762	0.316373
2	CH4	DZP	5	-569.119016	QZ4P	5	-572.626762	0.701549
3	CH4	DZ	5	-560.934431	QZ4P	5	-572.626762	2.338466
4	CH4	SZ	5	-723.550123	QZ4P	5	-572.626762	30.184672
5	C2H6	TZ2P	8	-971.882017	QZ4P	8	-973.019469	0.142182
6	C2H6	TZP	8	-970.075887	QZ4P	8	-973.019469	0.367948
7	C2H6	DZP	8	-966.091643	QZ4P	8	-973.019469	0.865978
8	C2H6	DZ	8	-951.166693	QZ4P	8	-973.019469	2.731597
9	C2H6	SZ	8	-1216.914229	QZ4P	8	-973.019469	30.486845
10	C2H4	TZ2P	6	-769.432902	QZ4P	6	-770.413350	0.163408
11	C2H4	TZP	6	-767.327516	QZ4P	6	-770.413350	0.514306
12	C2H4	DZP	6	-764.413297	QZ4P	6	-770.413350	1.000009
13	C2H4	DZ	6	-750.174509	QZ4P	6	-770.413350	3.373140
14	C2H4	SZ	6	-934.655819	QZ4P	6	-770.413350	27.373745
15	C2H2	TZ2P	4	-555.667288	QZ4P	4	-556.759051	0.272941
16	C2H2	TZP	4	-552.956282	QZ4P	4	-556.759051	0.950692
17	C2H2	DZP	4	-550.646178	QZ4P	4	-556.759051	1.528218
18	C2H2	DZ	4	-537.100799	QZ4P	4	-556.759051	4.914563
19	C2H2	SZ	4	-647.502978	QZ4P	4	-556.759051	22.685982

benchmark_results_df = comp_results_df.groupby("Basis", as_index=False)["Average Error"].mean()
benchmark_results_df.rename(columns={"Average Error": "MAE [kcal/mol]"}, inplace=True)
benchmark_results_df.sort_values(by="MAE [kcal/mol]", inplace=True, ignore_index=True)
benchmark_results_df

	Basis	MAE [kcal/mol]
0	TZ2P	0.170463
1	TZP	0.537330
2	DZP	1.023939
3	DZ	3.339442
4	SZ	27.682811

See also

Related examples

• Benchmarking Reaction Energies across AMS Engines

Related tutorials

• Python Getting Started tutorial

• Accurate XC functionals tutorial

Related documentation

• ADF basis sets and atomic fragments

• AMS single-point task

Python Script

#!/usr/bin/env python
# coding: utf-8

# ## Initial Imports

import sys
import multiprocessing
from scm.base import ChemicalSystem
from scm.inputs import ADF, AMS
from scm.plams import (
    JobRunner,
    config,
    AMSJob,
    JobAnalysis,
    jobs_in_directory,
    view,
    plot_image_grid,
)
import numpy as np


# ## Set Up Job Runner
# Set up job runner, running as many jobs as possible in parallel.

config.default_jobrunner = JobRunner(parallel=True, maxjobs=multiprocessing.cpu_count())
config.job.runscript.nproc = 1


# ## Set Up Molecules
# Create the molecules we want to use in our benchmark from SMILES.

# The molecules we want to use in our benchmark:
mol_smiles = {"Methane": "C", "Ethane": "C-C", "Ethylene": "C=C", "Acetylene": "C#C"}
molecules = {}
for name, smiles in mol_smiles.items():
    # Compute 10 conformers, optimize with UFF and pick the lowest in energy.
    system = ChemicalSystem.from_smiles(smiles, optimize_with_uff=True, num_trial_conformers=10)
    # The System block's Symmetrize option is not part of the typed input model,
    # so symmetry cleanup of the geometry is now a ChemicalSystem operation.
    system.symmetrize()
    molecules[name] = system

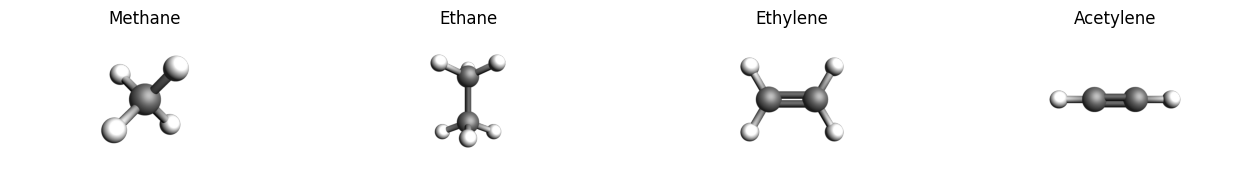

plot_image_grid({k: view(v, direction="along_pca3") for k, v in molecules.items()}, rows=1, save_path="picture1.png");


# ## Initialize Calculation Settings
# Set up the settings which are common across jobs. The basis type is added later for each job.

common_settings = AMS(Task="SinglePoint")
common_settings.Engine = ADF()
common_settings.Engine.Basis.Core = "None"


basis = ["QZ4P", "TZ2P", "TZP", "DZP", "DZ", "SZ"]
reference_basis = "QZ4P"


# ## Run Calculations

results = {}
jobs = []
for bas in basis:
    for name, molecule in molecules.items():
        with jobs_in_directory(name):
            settings = common_settings.copy()
            settings.Engine.Basis.Type = bas
            job = AMSJob(name=f"{name}_{bas}", molecule=molecule, settings=settings)
            jobs.append(job)
            results[(name, bas)] = job.run()

for job in jobs:
    job.ok()


# ## Results
# Extract the energy from each calculation. Calculate the average absolute error in bond energy per atom for each basis set.

import pandas as pd

results = []
for job in jobs:
    mol = job.results.get_main_system()
    results.append(
        {
            "Formula": mol.formula(),
            "Basis": job.settings.input.Engine.Basis.Type,
            "NAtoms": len(mol),
            "Energy": job.results.get_energy(unit="kcal/mol"),
        }
    )

results_df = pd.DataFrame(results)
print(results_df)


ref_results_df = results_df[results_df["Basis"] == "QZ4P"]
comp_results_df = results_df[results_df["Basis"] != "QZ4P"]
comp_results_df = comp_results_df.merge(ref_results_df, on="Formula", suffixes=["", " (Ref)"])
comp_results_df["Average Error"] = (
    abs(comp_results_df["Energy"] - comp_results_df["Energy (Ref)"]) / comp_results_df["NAtoms"]
)
print(comp_results_df)


benchmark_results_df = comp_results_df.groupby("Basis", as_index=False)["Average Error"].mean()
benchmark_results_df.rename(columns={"Average Error": "MAE [kcal/mol]"}, inplace=True)
benchmark_results_df.sort_values(by="MAE [kcal/mol]", inplace=True, ignore_index=True)
print(benchmark_results_df)
