CO on 1D gold chain¶
The system studied in this tutorial is discussed in Electronic and Transport Properties of Artificial Gold Chains PhysRevLett.93.096404 and Benchmark density functional theory calculations for nano-scale conductance The Journal of Chemical Physics 128, 114714 (2016).
We will study the electronic transport through an atomic gold chain, and study the effect that an adsorbed CO molecule has on the conductance.
According to PhysRevLett.93.096404 “a single CO group [...] modulates the electronic wave functions, acting as a ‘‘chemical scissor’’ along the gold chain, to strongly modify the coherent transport properties of the system”.
Creating the lead file¶
Let’s begin by creating a lead file. A lead file is a simple .xyz file with an extra lattice vector.
The folder $ADFHOME/atomicdata/Molecules/NEGF/Leads contains some pre-defined lead files
For this tutorial the lead will be a single gold atom with a lattice of 2.9 Å (in the x-direction). Let us create this with ADFInput:
- Start up ADFInput1. Switch to BAND2. From the main BAND-panel, select Periodicity → Chain3. Click Click on to switch the Lattice panel
In the lattice panel we can specify the lattice vector:
- Set the lattice vector to 2.9
We now add the gold atom

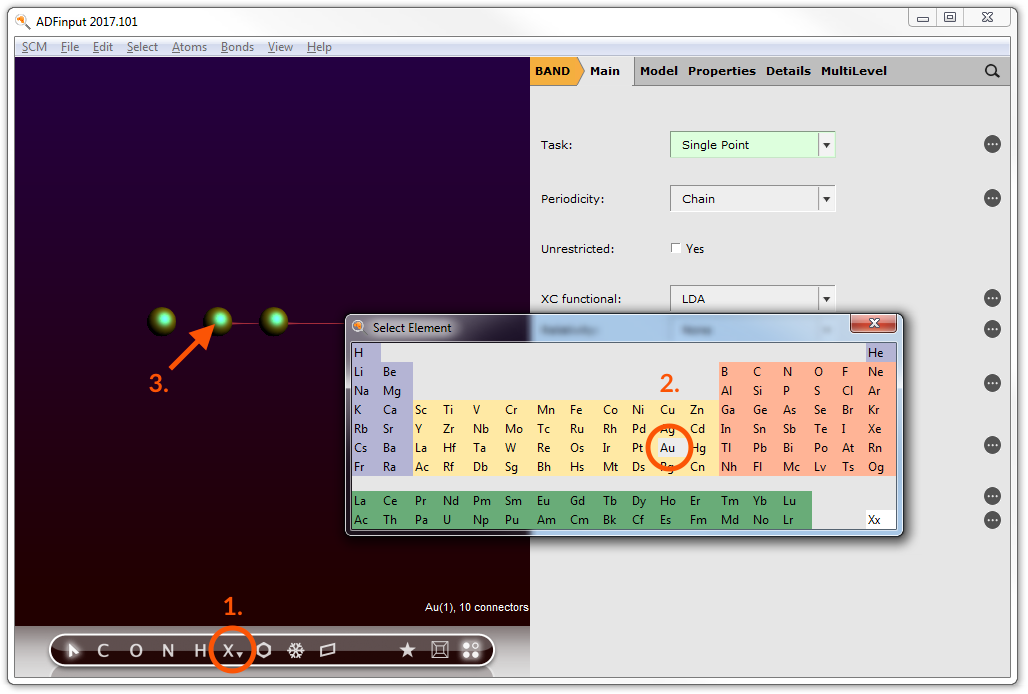

- 1. Click on ‘X’2. Select ‘Au’3. Click anywhere in the drawing area to add the gold atom

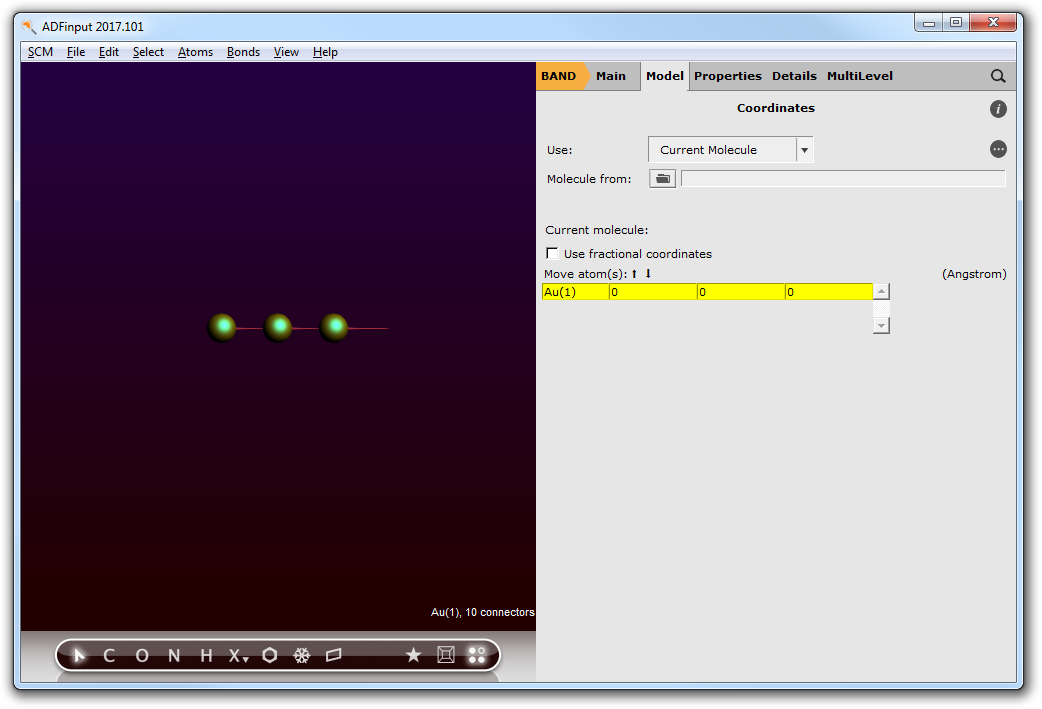

and set the coordinates of the gold atom to (0,0,0):
- 1. Click on Model → Coordinates2. Set the xyz coordinates on the Au atom to (0,0,0)
We now export this 1D gold chain as an .xyz file:
- Click on File → Export Coordinates...Save the file as “Au_lead.xyz”Close ADFInput File → Close
The .xyz file, defining our lead, should look like this:
1 Au 0.00000000 0.00000000 0.00000000 VEC1 2.90000000 0.00000000 0.00000000
Gold chain transport calculation¶
We are now ready to set up the BAND-NEGF gold chain calculation:
- Start up ADFInput1. Switch to BAND2. In the main BAND panel, select Relativity → Scalar (important for heavy elements)3. Select Task → NEGF4. Click on to go to the NEGF panel (or click on Model → NEGF)
Import the lead file we just created (‘Au_lead.xyz’):
- Click on the folder icon next to Lead: this will prompt a file dialog windowOpen Au_lead.xyz (the .xyz file you just created)
Fill the central region with 9 gold atoms using the “Fill central region” option:
- Click on FillEnter 9 in the prompted dialog window and click on OK
Let us also change the range for the Transmission energy grid to [-3.5,3.0], to match the energy range of PhysRevLett.93.096404:
- Set the Transmission energy grid Min and Max to -3.5, 3.0

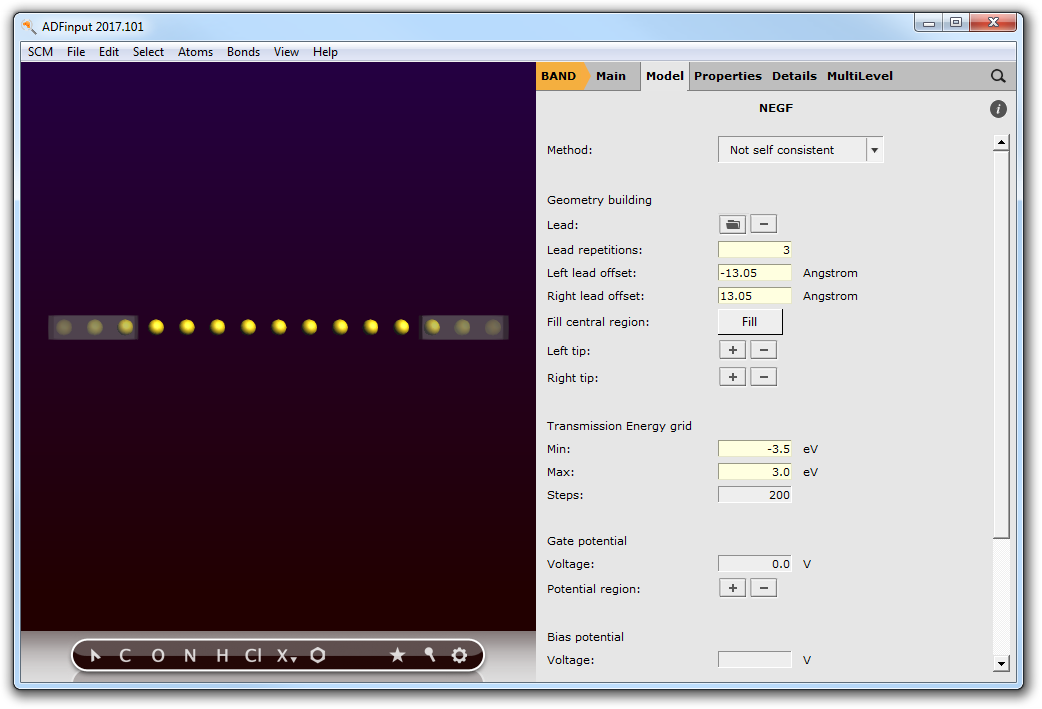

This is what your set-up should look like:
We are now ready to run the calculation and visualize the results with ADFSpectra:
- Click on File → Save as...Run the calculation with File → RunWait for the calculation to finishClick on SCM → Spectra...
This is the computed transmission function through a 1D gold chain:
CO on gold chain transport calculation¶
We now modify our previous system by adding a CO molecule in the central region:
- Select the ADFInput window: SCM → InputAdd the CO molecule by copy-pasting the following coordinates into ADFInput (CTRL+V in molecule drawing area)
O 0.0 0.0 3.12 C 0.0 0.0 1.96
The gold atom on which CO is adsorbed is “pulled” towards the CO molecule by 0.2 Angstrom:
- In the Coordinates panel adjust the position of the central gold atom to (0.0, 0.0, 0.2)

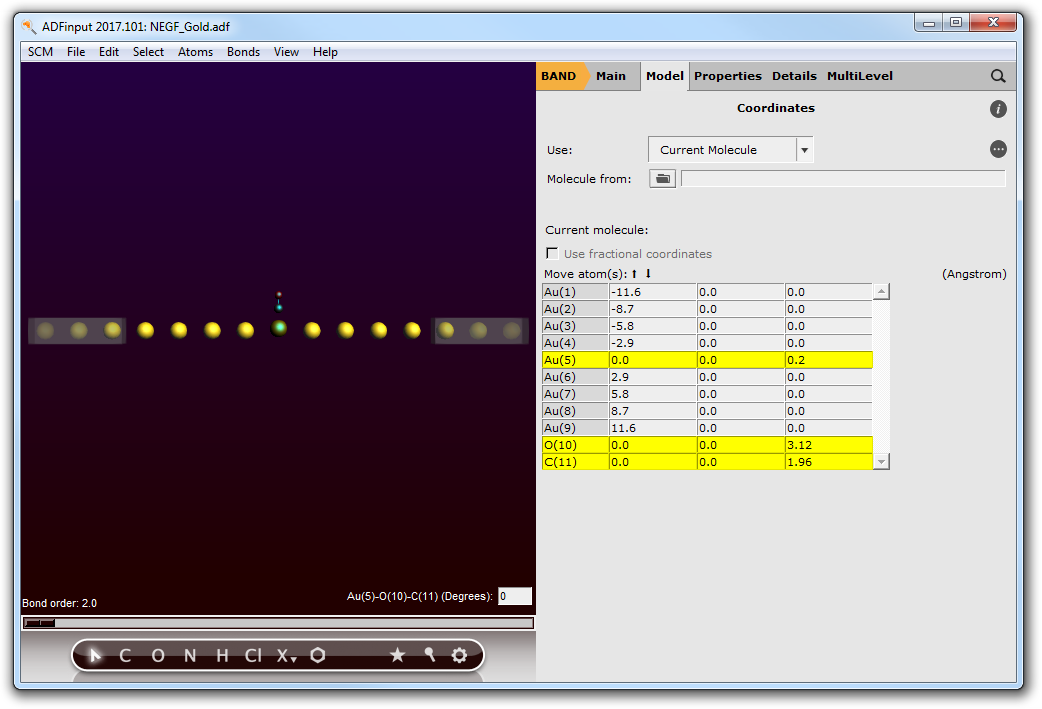

Your system should look like this:
It is good practice to include some buffer lead material in the central region, and test the convergence of the results WRT the buffer size (in this tutorial we have 4 buffer gold atoms on each side of the central Au-CO).
Run the calculation and visualize the results with ADFSpectra:
- Click on File → SaveRun the calculation with File → RunWait for the calculation to finishClick on SCM → Spectra...

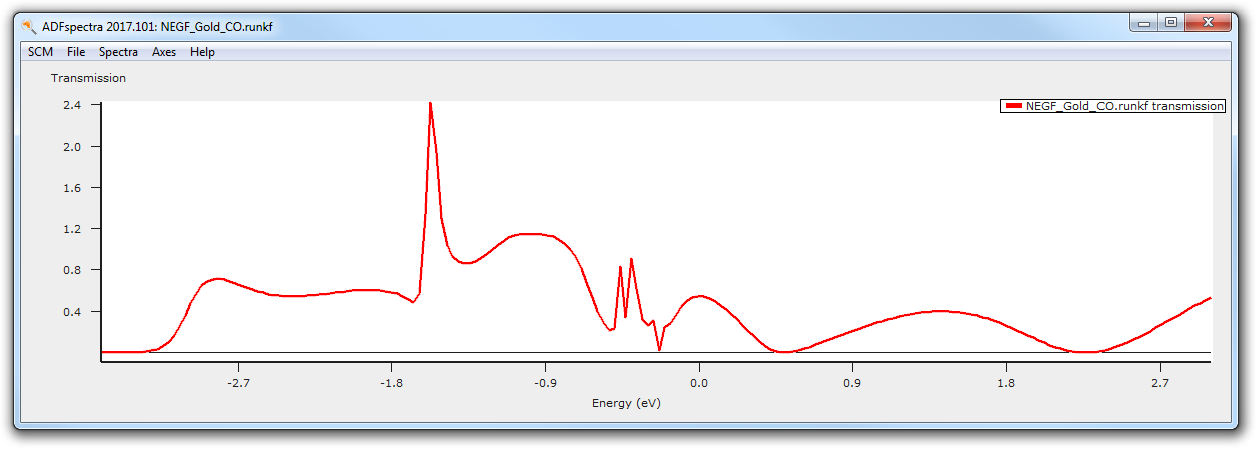

This is the computed transmission function when CO is adsorbed on a gold chain.
As expected, the conductivity around the Fermi energy is “suppressed” by the adsorbed CO molecule.
