Geometry and Lattice Optimization¶
This tutorial will teach you how to:
- set up an optimization of the geometry (including lattice) of a solid with Quanutm ESPRESSO
- view the results using ADFmovie
Step 1: Start ADFinput¶
- Start ADFinputSwitch to Quantum ESPRESSO mode (panel bar ADF → Quantum ESPRESSO)
If you have not yet installed Quantum ESPRESSO a dialog will pop up suggesting to install Quantum ESPRESSO by downloading it from the SCM web site. This is required for this tutorial to work. Downloading may take a while as it is a big package.
Step 2: Set up the system - Silicon¶
- Press cmd-F or ctrl-F to activate the search boxType ‘silicon’ in the search boxClick on ‘Si’ in the list of Crystals
As we want to demonstrate lattice optimization, we will change the lattice a little so something will happen:

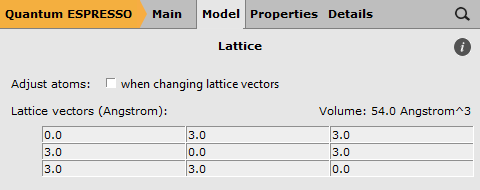

- Click on Main to go back to the Main panelClick the button to the right of the Periodicity optionChange all non-zero values in the lattice vectors to 3.0
Step 3: Setting up the calculation¶
First set up the required geometry optimization:

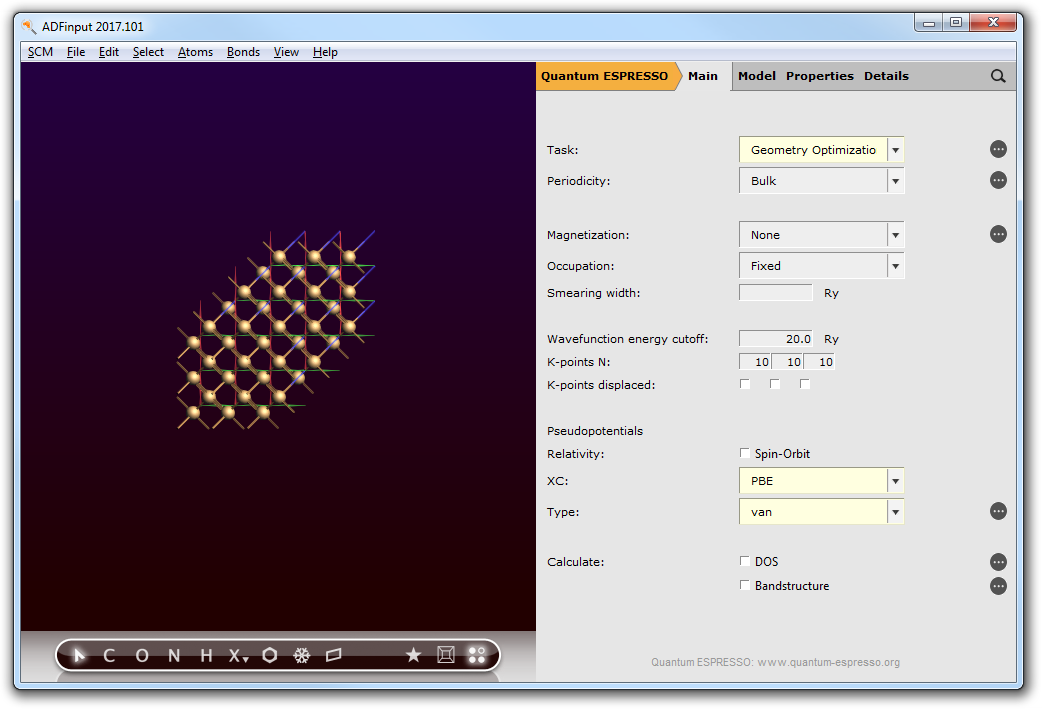

- Click on Main to go back to the Main panelSwitch the Task to ‘GeometryOptimization’Click the button to go to the optimization detailsCheck the “Optimize lattice” check box
- Click on Main to go back to the Main panel
We also need to set up the general calculation options.
For this tutorial we will leave most options at their default values. For real-live application you certainly will have to check if your results are converged with respect to the K-points grid and wavefunction energy cutoff.
One option that must be set by the user is the pseudopotential to use. The three options that follow the Pseudopotentials title work as a filter: all pseudopotentials from the pseudopotential directory that are available for the elements in your system are shown. By choosing options (relativity, XC and type) you narrow down the list of available pseudopotentials.

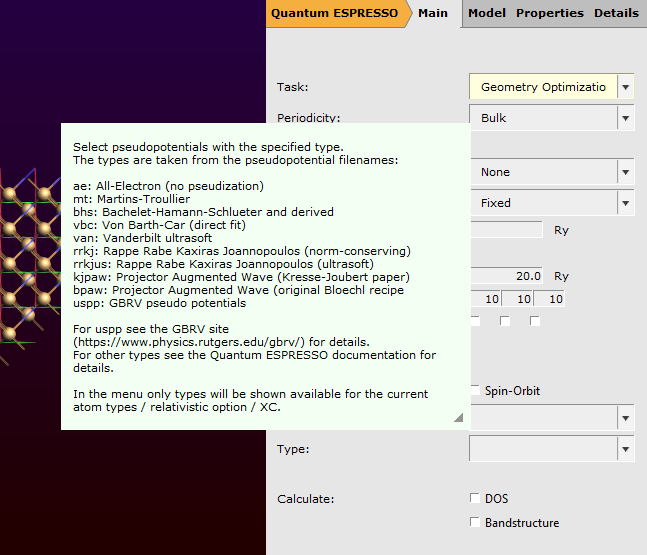

- Move your mouse over the pseudopotentials Type menu, and check the information in the balloon
- Select ‘PBE’ from the XC menuSelect ‘van’ from the Type menu
This is just an example, you will need to determine yourself (through calculation and/or literature) which pseudopotentials are best fit for your work. The choice we make in this tutorial is in no way an advise on which pseudopotential to use.
Step 4: Running your job¶
Running your job on your local machine is very simple:
- Use the Run command from the File menu: File → RunIn the Save File dialog that pops up save your job as ‘silicon-geometry’
Your job should start running. In the ADFjobs window you can follow its progress, click on the progress lines to open ADFtail showing full details of the progress.
When your job is ready ADFjobs will show this, and ADFinput will prompt you to update the geometry. If you click ‘Yes’ the geometry (both the atom coordinates and the lattice vectors) will be updated with the results of your calculation. Now you could continue to perform any other calculation on the optimized system using Quantum ESPRESSO or other programs in the ADF suite (like BAND or DFTB).
Step 5: Checking the results¶
At the end of the calculation an RKF file is automatically created based on the results of Quantum ESPRESSO. RKF files are used by the programs of the ADF suite, so we can now use all the GUI modules to examine the results.
In this tutorial we will have a look at the geometry optimization using ADFmovie:
- In ADFjobs make sure your diamond-geometry job is selected (by clicking on it)Start ADFmovie SCM → Movie
- In ADFmovie:show the energy graph: Graph → EnergyIn ADFmovie, show the length of a lattice vector: Graph → Lattice Vector Length → Vector 1Click the play button on the left
