PEDA for Spin Unrestricted Calculations

This tutorial will teach you how to:

  • perform a periodic energy decomposition analysis (PEDA) for extended systems with the BAND-GUI, where the bond is described by open-shell, spin unrestricted fragments
  • where to look for the results

Step 1: Start ADFinput

Start ADFinput in a clean directory. (according to Step 1 of the Getting Started with BAND)

../_images/adfinput_BAND_Main.png

Step 2: Set up the system - Ethane

An easy and non-timeconsuming testsystem is the C-C bond analysis in an ethane molecule. Here, two methyl radicals with opposite spin-polarization do interact to form the shared electron C-C bond. Hence, the fragments and the PEDA calculation have to be carried out as unrestricted DFT calculations.

You can copy-paste the following geometry information into the GUI directly.

C          1.54081631       0.00000000       0.00000000
H          1.90061013       0.71448558       0.72714386
H          1.90061011      -0.98692880       0.25534173
H          1.90084793       0.27238885      -0.98228957
C          0.00000000       0.00000000       0.00000000
H         -0.35953041      -0.27213306       0.98136715
H         -0.36080772       0.98640196      -0.25411759
H         -0.36080775      -0.71466441      -0.72582318
VEC1      10.00000000       0.00000000       0.00000000
../_images/adfinput_BAND_MainA_Tut4b.png

Step 3: Running the PEDA calculation

Step 3a: Setting up the fragments

To run the PEDA you have to define the fragments. Therefore switch to Regions menu.

Panel bar Model → Regions
  • Select one methyl fragment and add a new region by clicking on the ‘+’ button (or Ctrl+G).
  • Then select the other methyl fragment and add a new region by clicking on the ‘+’ button (or Ctrl+G).
  • You may want to rename “Region_1” to “H3C_A” and “Region_2” to “H3C_B”. (optional)
../_images/adfinput_BAND_Model_RegionsB_Tut4b.png

Step 3b: Details for the calculation

Go to the Main menu,

Panel bar Main

and change the calculation setup (XC functional, basis set, frozen core, numerical quality and unrestricted calculation) according to the following picture.

../_images/adfinput_BAND_MainB_Tut4b.png

Step 3c: Enabling the PEDA

Go to the Fragments menu,

Panel bar MultiLevel → Fragments
  • Check the “Use fragments” box. This will trigger the PEDA.

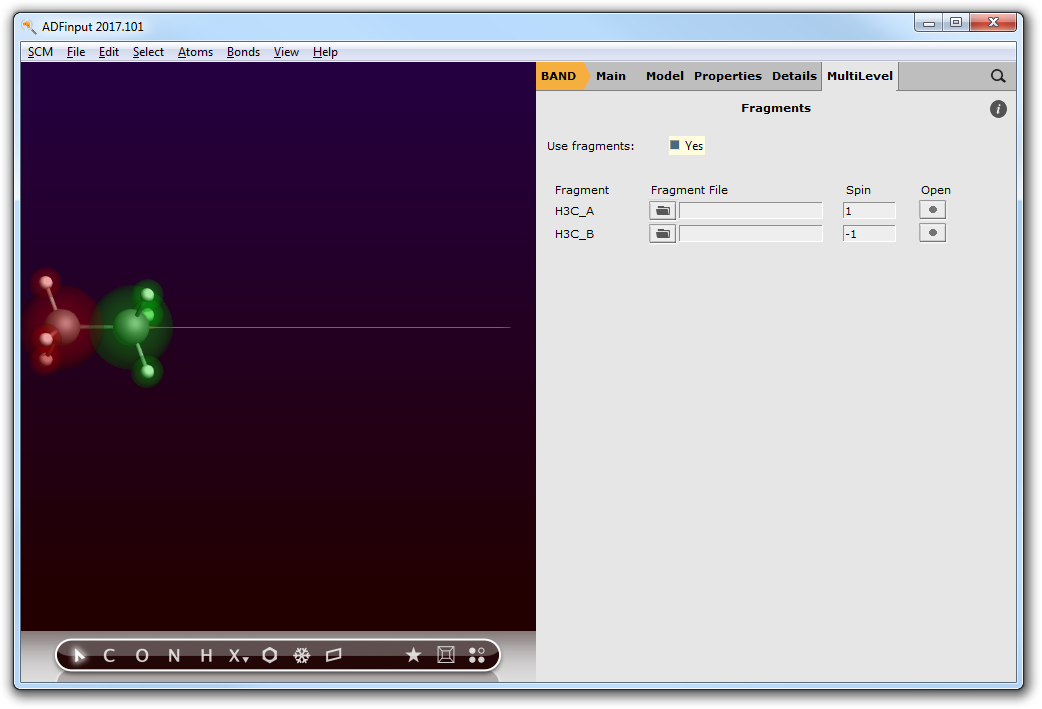

  • Define the spin polarization of the fragments. One shall be +1 (excess of 1 electron with spin up) and the other -1 (excess of 1 electron with spin down).
../_images/adfinput_BAND_MultiLevel_FragmentsC_Tut4b.png

Step 3d: Save and run the calculation

Now you can save and run the calculation.

File → Save, give it a name and press Save.
File → Run

Step 4: Checking the results

After the calculations of the fragments and the PEDA finished you can look for the PEDA results. Therefore, open the “Output” using the SCM dropdown menu.

SCM → Output

You can jump to the ‘PEDA Energy Terms’ via the corresponding button in the ‘Properties’ dropdown menu.

Properties → PEDA Energy Terms

Reference results:

../_images/OutputB_Tut4b.png

In addition to these energy terms the summed preparation energies of the fragments and the (negative) bond dissociation energy are usually given. Therefore you have to calculate the energy difference between the electronically and structurally relaxed fragments (which can be accessed by a geometry optimization of the separated fragments) and the promoted fragments (which are already calculated and used for the PEDA). Adding this energy differences, which are equal to the preparation energy, to the interaction energy will give you the negative bond dissociation energy.
