Analysis of NMR parameters with Localized Molecular Orbitals¶
Localized molecular orbitals, such as Natural Bonding Orbitals (NBO) or Natural Localized Molecular Orbitals (NLMO) can be helpful in analyzing and interpreting properties computed in electronic structure calculations.
This tutorial analyzes the effects of NH2 and NO2 substituents in ortho-, meta-, and para-positions on NMR chemical shifts of aromatic carbon atoms in a benzene ring. These shifts in aromatic systems are commonly believed to originate from a depletion or accumulation of electrons in the π-orbitals at these atoms. We examine this claim by means of NMR calculations with ADF and NBO/NLMO analysis tools.
This tutorial loosely follows the following publication: R. V. Viesser, L. C. Ducati, C. F. Tormena and J. Autschbach The unexpected roles of σ and π orbitals in electron donor and acceptor group effects on the 13C NMR chemical shifts in substituted benzenes, Chem. Sci. Phys. 8, 6570-6576 (2017).
Step 1: Preparations¶
The molecular structures needed for this tutorial can be downloaded by clicking on the following links:
These structures have already been optimized and properly aligned. In general, you should optimize the structures first.
The analysis of NMR and EFG results in terms of localized molecular orbitals requires some care about the alignment of the molecules when comparing results between different systems as in our case. This is, for example, because the analysis in terms of NLMOs is origin dependent. To obtain comparable orbital contributions one has furthermore to ensure that the different molecules are oriented in the same way. In ADFInput you can use the options Edit → Align and Edit → Set Origin to achieve this when performing localized orbital analysis with your custom models.

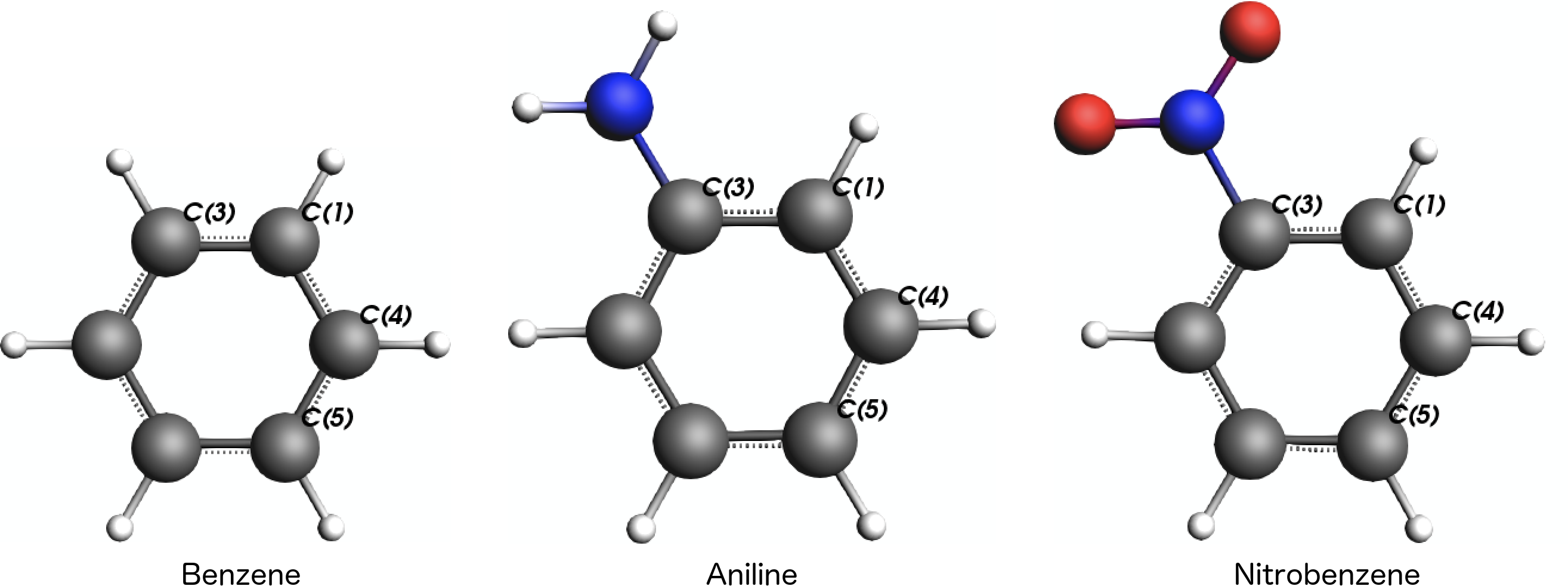

The main idea is now to compute the NMR shielding parameters for three different carbon atoms in the ring, C(1), C(4), and C(5), which are in ortho-, meta-, and para-position to the substituent at atom C(3):
Step 2: Calculation Settings¶
We need to perform three ADF calculations, one for each molecule (i.e. Benzene, Aniline, and Nitrobenzene).
Let us start with Benzene:
- Start ADFInputClick on File → Import Coordinates… and select the file Benzene.xyz you just downloaded
Next, select the following settings in the main ADFInput panel
- In the Main ADF panel:Task → Single PointXC functional → Hybrid → PBE0Relativity → ScalarBasis set → TZ2PFrozen core → NoneNumerical quality → Good
An all-electron basis set is needed because a hybrid functional is used. Using an all-electron basis set also improves the quality of the NMR results.
A scalar relativistic treatment (Relativity → Scalar) is required to perform the NBO analysis of the NMR shifts.
In order to compare the computed NMR results with their experimental counterparts (which were measured in Chloroform solution), we enable the COSMO solvation model:
- Click on Model → SolvationSolvation method → COSMOCOSMO solvent → Chloroform
We now select the atoms for which we want to compute the NMR properties:

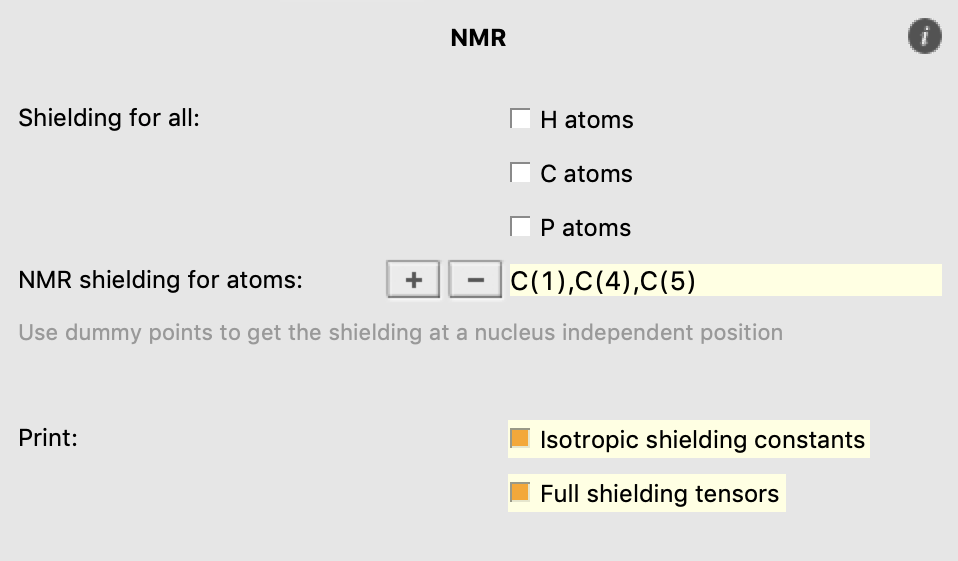

- View → Atom Info → Name → ShowClick on Properties → NMRSelect atoms C(1), C(4), and C(5) in the molecular editorNMR shielding for atoms: click on the + buttonPrint: tick Isotropic shielding constants and Full shielding tensors
and enable the NBO analysis of the NMR properties:

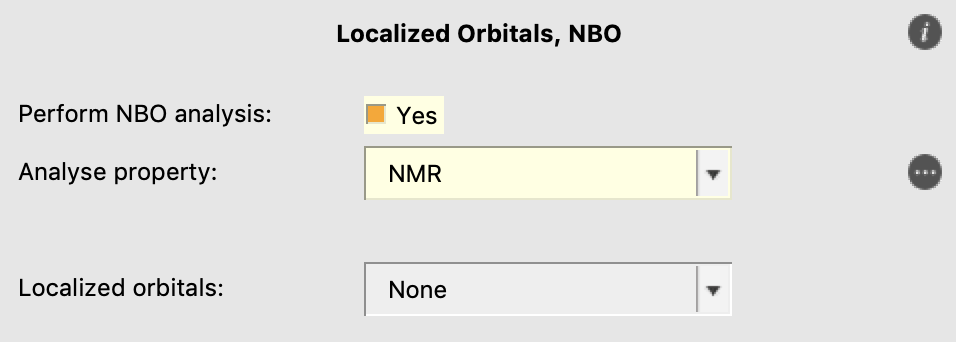

- Click on Properties → Localized Orbitals, NBOPerform NBO analysis: Tick yesAnalyse property → NMR
Finally, we need to disable the automatic symmetry treatment of ADF:
- Click on Details → SymmetrySymbol → NOSYM
Now that all options are set, save the job:
- File → Save As…Save e.g. as
Benzene.adfClick OK in the popup window to confirm using the FULL FOCK matrix
For the other two systems (i.e. Aniline, and Nitrobenzene), we can avoid having to set again most computational options:
- Select and delete all atomsFile → Import Coordinates…Select
Aniline.xyzand click OpenView → Atom Info → Name → ShowClick on Properties → NMRSelect atoms C(1), C(4), and C(5) in the molecular editorNMR shielding for atoms: click on the + buttonFile → Save As…Save e.g. as
Step 3: Running the Calculations¶
We are now ready to run all three calculations
- Switch to ADFjobs using the SCM menuSelect the three jobs Benzene, Aniline, and NitrobenzeneJob → Run
After all three calculations are completed we can retrieve the isotropic shielding constants

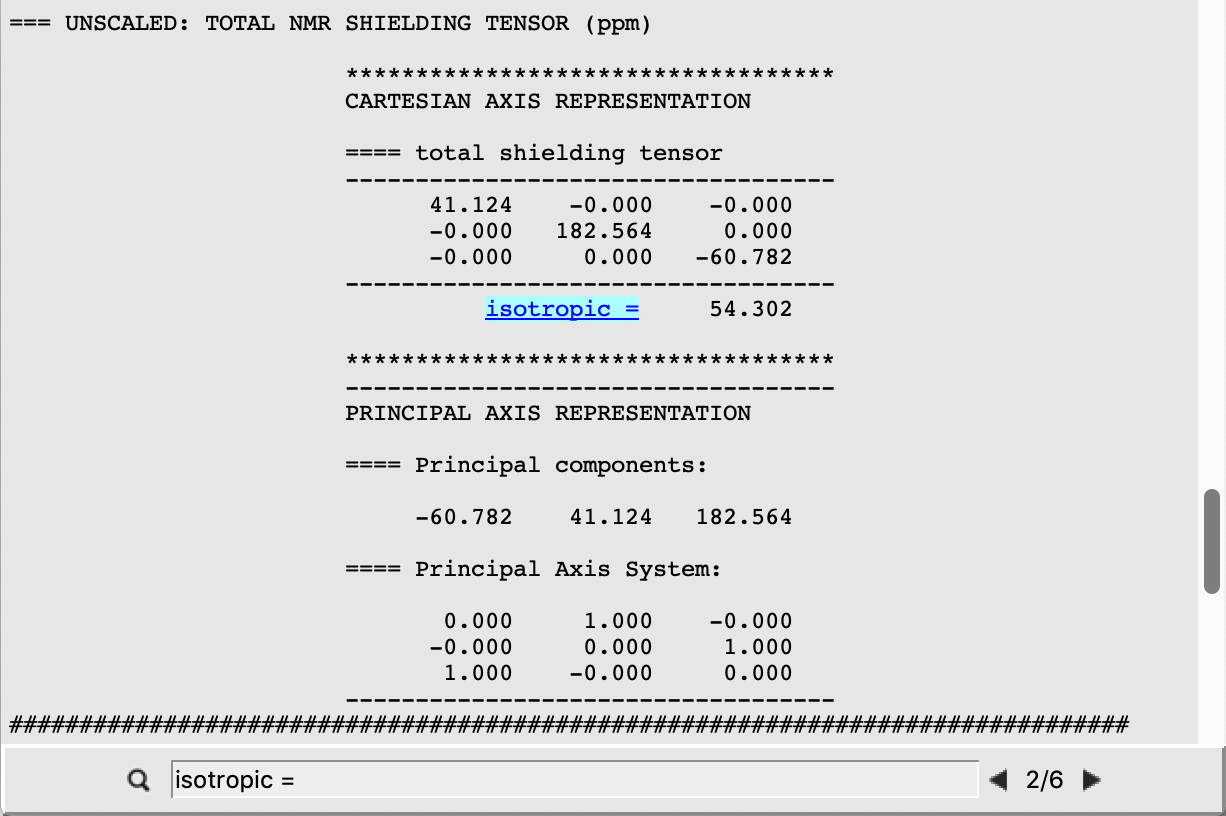

- In ADFJobs click on the job BenzeneSwitch to ADFoutput using the SCM menuIn ADFoutput, click on Other Properties → NMR shielding (NMR program)
In the case of Benzene the atoms C(1), C(4), and C(5) are all equivalent, thus yielding shielding constants σi of the same value. This is different in the case of the other two systems, whose shielding constants are retrieved analogously from the corresponding output files.
The chemical shifts δi are then computed relative to the unsubstituted Benzene molecule as follows
δi = σBenzene - σi - δBenzene
whereas δBenzene = 128.55 ppm is the experimental chemical shift for 13C in Benzene, while σBenzene is the computed σi for Benzene (54 ppm in our case). This yields the following results:
|Compound||Substitution||exp 13C-shift||calc 13C-shift|
|Benzene||128.55||128.55 (see text)|
The experimental NMR shifts are reproduced with an error margin of about 2 ppm, and the trend between the different substitutions is reproduced: the NH2 group leads to a significant decrease in the chemical shifts in ortho- and para- position. The meta-position remains almost unaffected by the NH2 group. This is also observed for the meta-position near a NO2 substitution, while the chemical shifts are lowered at the ortho-atom and increased at the para-position.
To rationalize this finding, we proceed to examine the contributions of individual orbitals to these substituent effects.
We first look at the individual NLMO contributions to the isotropic shielding tensors. Each output file contains the NLMO and NBO decomposition of the isotropic shielding tensors (and other quantities) for the atoms C(1), C(4), and C(5).
The NMR shielding tensors consist of diamagnetic and paramagnetic (+SO) contributions. Diamagnetic terms are larger but mostly dominated by contributions from core orbitals and they essentially not affected by the local environment of an atom. As we are interested substitution effects, i.e. changing environments around an atom, we focus on the diamagnetic terms here as these are most influential on the magnitude and direction of the chemical shifts.
- Switch to ADFoutput for the job AnilineType
NLMO contributions toin the search barUse the arrows in the search bar to get the entries for the Isotropic Shielding Tensor
We find that the paramagnetic part of the isotropic shielding tensor at atom C(1) is mostly determined by contributions originating from three bonding NLMOs formed between C(1) and its three neighbors C(3), C(4), and H(7). Analogous results are obtained for C(4) and C(5) as well as for the corresponding atoms in the Nitrobenzene molecule.
One finds similar results when examining the NBO contributions to the isotropic shielding tensors.
These contributions can be obtained by searching for
NBO contributions to in the search bar of ADFOutput.
We now examine in more detail the NLMOs with the largest contributions.
- In ADFJobs, select the job AnilineOpen ADFview using the SCM menuIn ADFview, click on Add → Isosurface: With PhaseIn the field bar at the bottom: Select Field … → NLMOs..
The selection window allows you to pick individual orbitals for plotting in ADFview
A visual inspection of the three NLMOs with the largest contribution to the isotropic shielding tensor reveals that they all have a pronounced σ-orbital character:

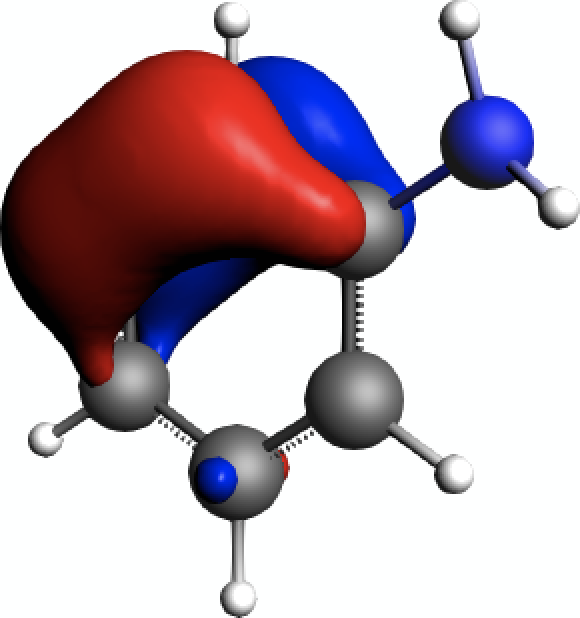

Opposed to that, the π-orbitals of the aromatic system can be clearly identified as well, e.g. for NLMO #11 in the above listing of contributions
As the results discussed above show, such π-orbitals are not contributing much to the isotropic shielding tensors.
The corresponding analysis in terms of NBOs can be done in exactly the same way
- In the field bar at the bottom: Select Field … → NBOs..Select NBO from list
and suggests exactly the same finding
In conclusion, the chemical shifts due to substitutions on an aromatic ring are mainly influenced by contributions from σ-bonding orbitals rather than π-orbitals.
R. V. Viesser, L. C. Ducati, C. F. Tormena and J. Autschbach The unexpected roles of σ and π orbitals in electron donor and acceptor group effects on the 13C NMR chemical shifts in substituted benzenes, Chem. Sci. Phys. 8, 6570-6576 (2017).
J. A. Bohmann, F. Weinhold and T. C. Farrar Natural chemical shielding analysis of nuclear magnetic resonance shielding tensors from gauge-including atomic orbital calculations, J. Chem. Phys. 107, 1173-1184 (1997).
J. Autschbach Analyzing NMR shielding tensors calculated with two-component relativistic methods using spin-free localized molecular orbitals, J. Chem. Phys. 128, 164112 (2008).
R. V. Viesser, L. C. Ducati, C. F. Tormena and J. Autschbach The halogen effect on the 13C NMR chemical shift in substituted benzenes, Phys. Chem. Chem. Phys. 20, 11247 (2018).
