Getting started: Geometry optimization of ethanol¶
This tutorial will help you to:
- create a simple molecule
- view the molecule from all sides and save a picture
- make a couple of changes to the molecule with different tools
- set up your ADF calculation
- perform the actual ADF calculation

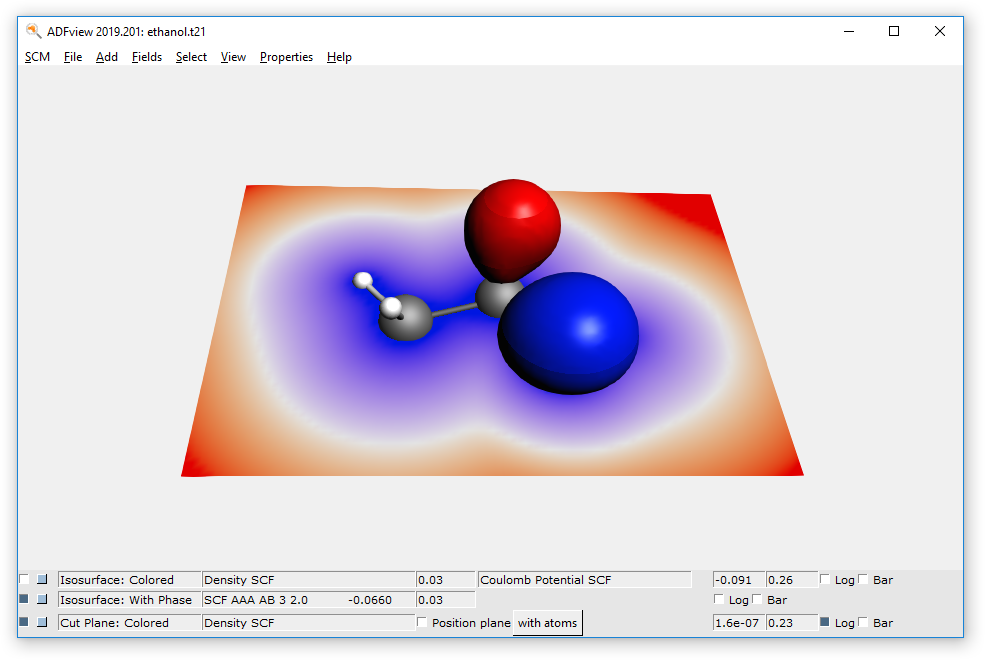

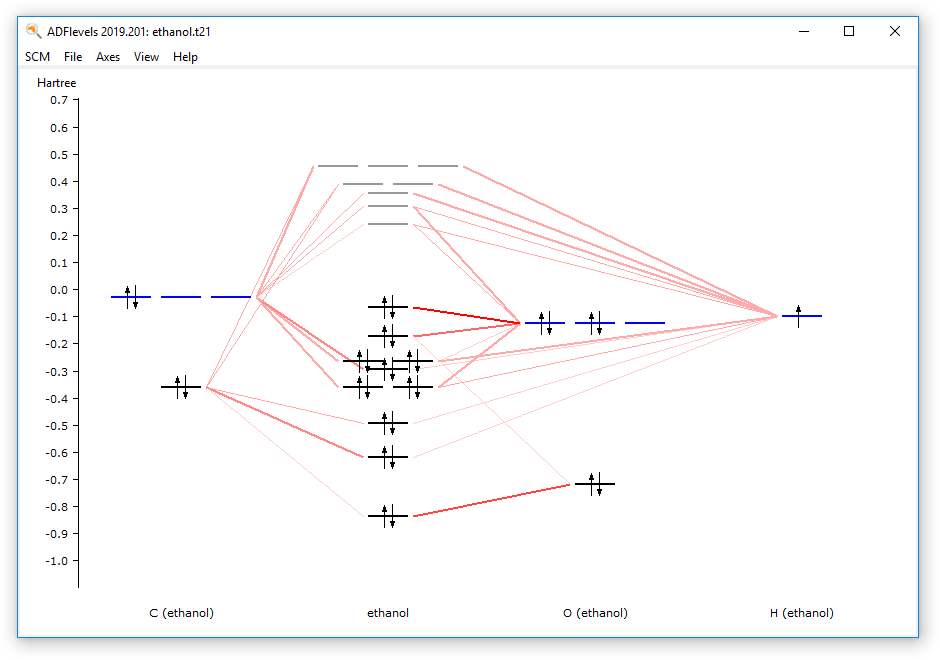

- visualize some results: energy levels, geometry, electron density, orbitals, …
Step 1: Preparations¶
On a Unix-like system, enter the following command:
- cdadfjobs &
On Windows, one can start ADFjobs by double-clicking on the ADF-GUI icon on the Desktop:
- Double click the ADF-GUI icon on the Desktop
On Macintosh, use the ADF2019.xxx program to start ADFjobs:
- Double click on the ADF2019.xxx icon
Note that the directory in which ADFjobs depends on how you start ADFjobs, so your screen might look different.
Make a directory for the tutorial¶
We prefer to run the tutorial in a new, clean, directory. That way we will not interfere with other projects. ADFjobs not only manages your jobs, but also has some file management options. In this case we use ADFjobs to make the new directory:
- Select the File → New Directory command (the New Directory command from the File menu)Rename the new directory by typing ‘Tutorial’ and a Return
- Change into that directory by clicking once on the folder icon in front of it
Now we will start ADFinput in this directory using the SCM menu:
- Select the SCM → New Input menu command

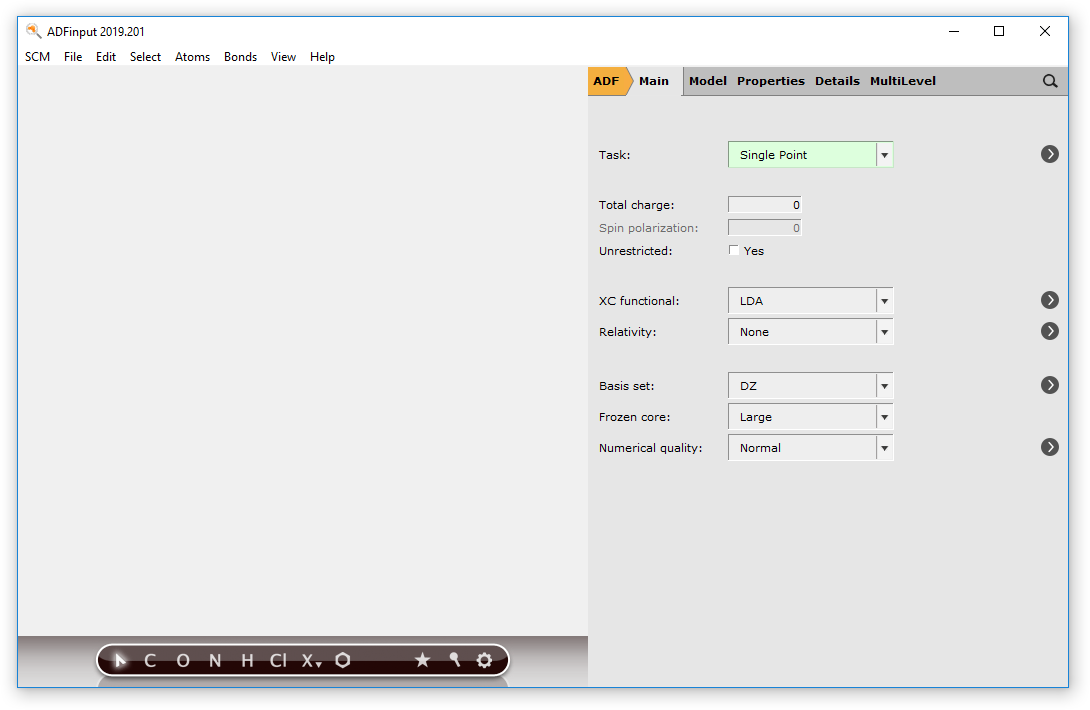

The ADFinput module should start:
The ADFinput window consists of the following main parts:
- the menu bar with the menu commands (SCM, File, Edit, …, on a Mac the menu bar is at the top of the screen)
- the drawing area of the molecule editor (the dark area on the middle left side)
- the status field (lower part of the dark area, blank when the ADFinput is empty as shown above)
- the molecule editor tools
- many panels with several kinds of options (currently the ‘ADF Main’ panel is visible)
- panel bar with menu commands to activate the panel of choice
- a search tool
ADFinput has an Undo command, which works on your molecule (thus not on your input options).
If you make a mistake while making changes to your molecule, just use the Edit → Undo menu command to go back in time. You can Undo more than one step, or Redo a step (with Edit → Redo) if you wish to do so.
Step 2: Create your molecule¶
Create a molecule¶
The molecule we are going to create is ethanol.
First we will draw the two carbon atoms, next the oxygen atom, and after that we will add all hydrogen atoms at once. Finally, we will pre-optimize the geometry within ADFinput.
Create the first carbon atom¶
To create an atom, you need to select an atom tool.
- Select the C-tool by clicking on the button with the ‘C’
Back glow is added to the ‘C’ button to indicate that you are using the C-tool. Also, the status field in the left bottom corner shows ‘C tool, create single bond’ to indicate that you are using the C-tool.
Now create the first carbon atom:

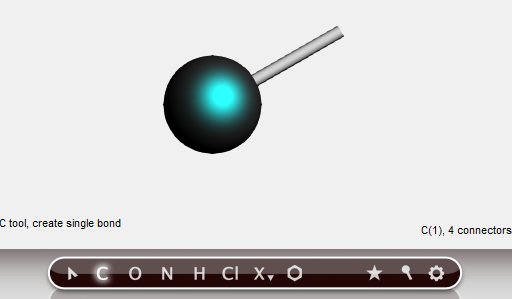

- Click somewhere in the drawing area
One carbon atom has been created.
- If you move the mouse you will see a white line from that carbon atom to the current mouse pointer position: this shows you are in ‘bonding’ mode, and that the bond will be made to the atom just created.
- The ‘C’ button has a different color, indicating you are still using the C-tool.
- The carbon atom is selected (the green glow), which indicates that the carbon atom is the current selection.
- The status field contains information about the current selection: it is a Carbon, number 1, with 4 ‘connectors’
- The status field also shows the current tool (C), and that a single bond will be made.
Create the second carbon atom¶

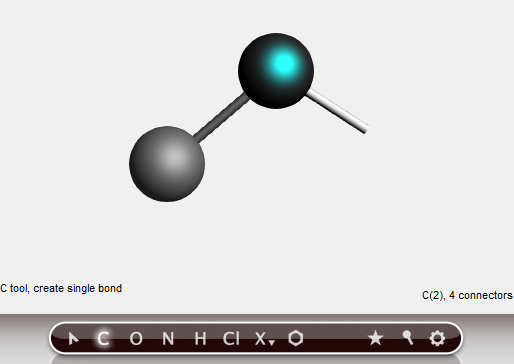

- Click somewhere in the drawing area to create the second carbon atom
A second carbon atom has been created, bonded to the first atom.
The atom will be created along the ‘bonding line’, at a distance that corresponds to a normal C-C single bond distance. That is, the bond length is constrained while drawing.
The newly created atom becomes the new selection, and you are still in bonding mode. The next bond will be created to the carbon atom just created. And you are still using the C-tool.
Create the oxygen atom¶
To create the oxygen atom you need to switch to the O-tool:
- Select the O-tool by clicking on the button with the ‘O’

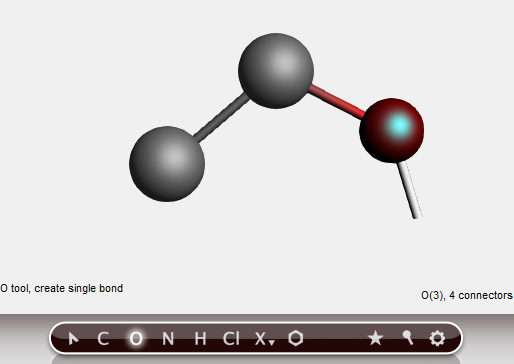

With the O-tool, create an oxygen atom bonded to the second carbon;
- Click somewhere in the drawing area
The oxygen atom has been added.
For now, we are done using atom tools, so go back to the select tool:
- Select the select-tool by clicking on the button with the arrow (or press the Esc key)
Add the hydrogens¶
Now many hydrogen atoms need to be added. You can do this using the H-tool, but a much easier method is to use the Atoms → Add Hydrogen menu command:
The ‘Add Hydrogen’ menu command works on the selection only, when present. Thus, only one hydrogen atom would be added to the oxygen atom. This is not what you want. So first we make sure that nothing is selected by clicking in empty space.
- Click in empty (drawing) space
Now no atoms are selected any more.

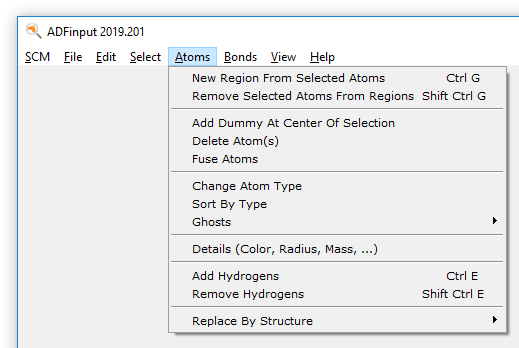

- Select the Atoms → Add Hydrogen command
Many menu commands have shortcuts. In this case you can also use the shortcut (ctrl-E or cmd-E, depending on your platform) as an alternative. The shortcuts are indicated in the menu commands.

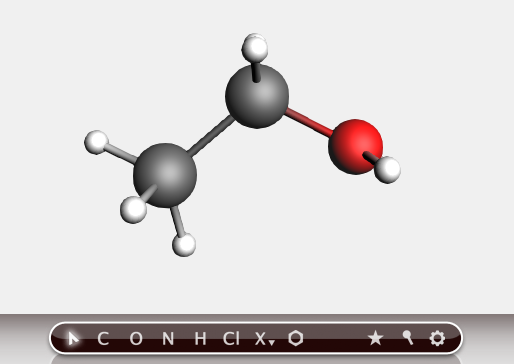

All atoms will be saturated with hydrogen atoms. And you have created an ethanol molecule, though the geometry is still far from perfect.
Pre-optimize the geometry¶
Now use the optimizer that comes with ADFinput to pre-optimize the geometry.
The geometry of the molecule will be pre-optimized, using UFF by default.
You can select another pre-optimizer via the Preferences, or use a different pre-optimizer by right-clicking on the cog wheel and selecting the method to use from the pop-up menu.
In the status field below the drawing area you can follow the pre-optimization iteration number and the energy relatively to the starting configuration.
Viewing the molecule¶
Rotate, translate, or zoom¶
You can rotate, translate, and zoom your molecule using the mouse.
You need to drag with the mouse: press a mouse button, and while holding it down move it. Which mouse button, and which modifier key you press at the same time, determines what will happen:
|Zoom||Mouse wheel, or (not on windows) alt-Left (drag up or down)|
The rotate, translate, and zoom operations change how you look at the molecule, they do not change the coordinates.
This behavior is the default behavior, you can change what the right mouse button does using the Preferences.
- Click once somewhere in empty space to make sure nothing is selectedClick with the left mouse button, and drag:your molecule will rotateClick with the left mouse button with the ctrl-key, and drag:your molecule will rotate in-planeClick with the right mouse button, and drag:your molecule will be translatedClick with the right Middle button (if available), and drag up and down:you will zoom closer to or away from your molecule(not on windows) Click with the left mouse button with the alt-key, and drag:(not on windows) you will zoom closer to or away from your moleculeUse the mouse wheel, if you have one:you will zoom closer to or away from your moleculeUsing all these options, try to position the ethanol as in the following image:
You can save a picture of your molecule using the ‘Save Picture …’ command from the File menu.
The format used is the PNG format. You can change this using the File → Picture Format menu command. You can also change the resolution. A smaller resolution will result in a smaller file, but will reduce the quality.
Via the Preferences command it is possible to save your preferred format.
- Select the File → Save Picture … commandEnter the name for your picture: ethanolClick the ‘Save’ button
A picture will be saved to disk containing the image of your molecule. Only the drawing area is saved in the picture, not all the input options.
The format used is the PNG format. You can change the resolution. A smaller resolution will result in a smaller file, but will reduce the quality.
Via the Preferences command it is possible to save your preferred format (PNG, JPEG, TIFF, BMP or PostScript)
Rotate such that you look along the C-C axis¶

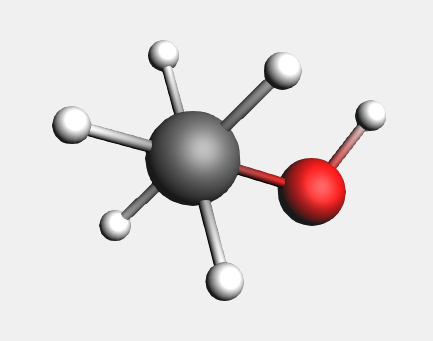

- Rotate your molecule into the following position:
Select the top CH3 group¶

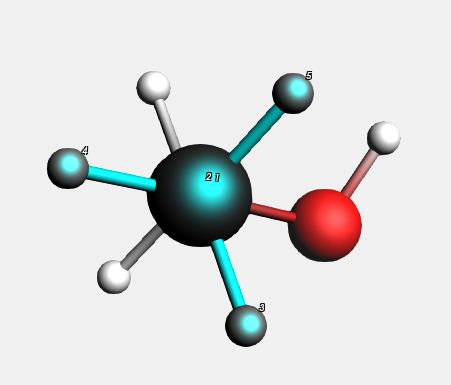

- Click once on the top carbon atomUse the Select → Select Connected menu command
As you will notice, all atoms directly connected to the selected atom are added to the selection. Alternatively, you can also make a selection by shift-clicking on the elements you want to select.
- Click in empty spaceClick on the top carbon atomShift-Click once (without moving) on each of the top hydrogen atoms
This has almost the same effect (in this case you have not selected the second carbon atom).
Rotate the selection¶
We are now trying to make an eclipsed geometry.

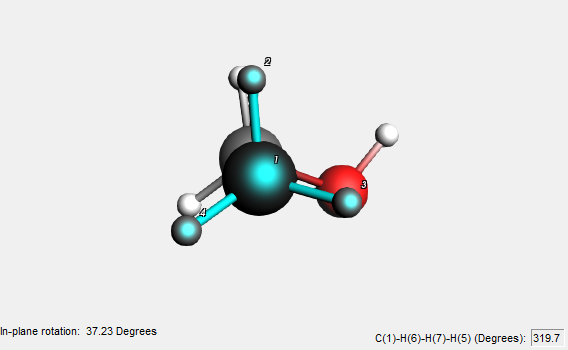

- ctrl-Click with the left mouse button in one of the selected hydrogens,and drag around to rotate the selection in-planeRotate the hydrogen atoms in an almost eclipsed position
You can move the selection by clicking in a selected object, and dragging with the mouse. All usual operations are possible: rotate, rotate in-plane, translate and zoom. Zoom in this case means moving the selection perpendicular to the screen.
In the status field you see the current rotation angle.
You have to click and start dragging at a selected item. If you click and drag in space you will move the entire molecule.
Back to Staggered Geometry¶
The optimizer will bring the structure back to the original staggered geometry. If it does not complete, repeat this step until it does.
Getting and setting geometry parameters¶
First select the oxygen atom and the connected hydrogen atom.
This time we make the selection by dragging a rectangle around all objects that we want to select.
- Using the left mouse button together with the shift key, drag a rectangle around the oxygen and hydrogen atom
- Release the mouse button (and the shift key)
The oxygen atom and the hydrogen atom are selected.
In the status area you see the distance between the selected atoms, information about the bond, and a slider.
You can set the distance to any value you wish by editing it, or (most conveniently) by using the slider.
- Use the slider to move the H atom
The order in which you have selected the atoms is shown with numbers. By default, the last atom selected will will be in the group of atoms to move.
Press the control key while using the slider, and the smallest group of atoms will move.
- Select first one of the top hydrogens by clicking on itNext, extend the selection (shift key) by clicking on the top carbon atomFinally, extend the selection (shift key) by clicking on another top hydrogen atom

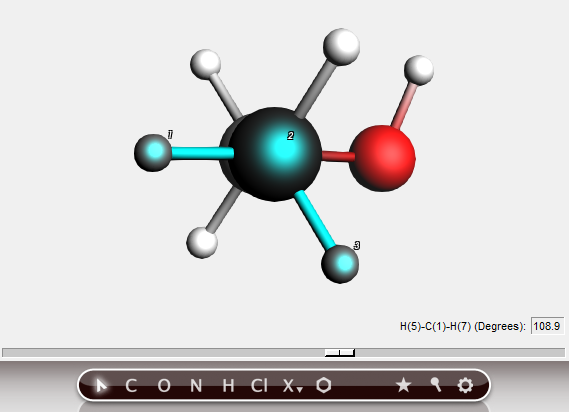

In the status area information about the bond angle of the selected three atoms is given, and the slider is again visible. You can change this value to a value you like, most conveniently using the slider.
By selecting four atoms we get information about the dihedral angle. And of course you can also change it, again most conveniently using the slider.
- Move the molecule such that you can see all atomsSelect first one of the top hydrogens by clicking on itNext, extend the selection (shift key) by clicking on the top carbon atomNext, extend the selection (shift key) by clicking on the next carbon atomFinally, extend the selection (shift key) by clicking on the oxygen atom
To view the coordinates we have to go to a different input panel. The input panels can be selected using the panel bar on the top of the input panels, the right half of the window.
- In the right side of the ADFinput window:Click on the Model tab in the panel barSelect the Coordinates command

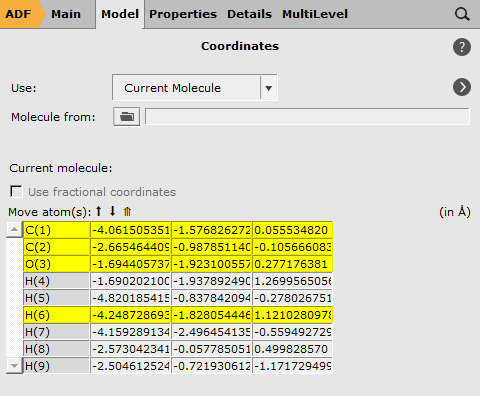

You get a list of all Cartesian coordinates. They will be updated in real time when you make changes to the molecule, and you can also edit the values yourself. In that case, the picture of the molecule will be updated automatically.
Note that some atoms are highlighted. These are the currently selected atoms.
The Move Atom(s) buttons (the arrows) will move the selected atoms up or down. In this way you can re-order the atoms.
Extending and changing your molecule¶
Before making some changes, let’s re-optimize. We first select the ‘Main’ panel so the coordinates will not be visible during the pre-optimization. Otherwise this may slow down the pre-optimization.

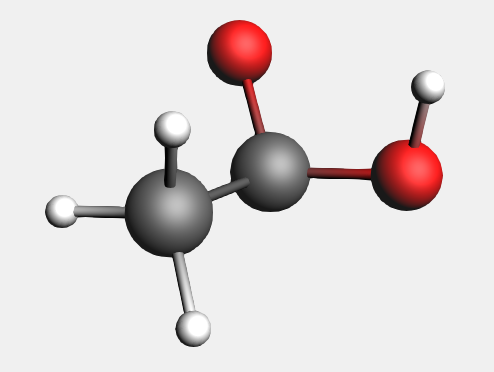

Let’s try to change the CH2OH group in a COOH group.
Thus, we need to:
- remove one hydrogen
- change one hydrogen into an oxygen
- change a single bond into a double bond
After this, we will revert to the ethanol molecule.
Delete an atom¶
First: delete one hydrogen
- Click in empty space to clear the selectionClick once on the hydrogen to delete, it will be selected
- Press the backspace key
The selected atom is removed.
Change the type of an atom¶
Next, we will change a hydrogen into an oxygen atom
You can quickly select a tool using the C, O, H, N, S, P, or F keys.
Or use X, type one or two letters, and Return, for any element.
- Select the O-tool (or press the ‘O’ key)Double-click on the hydrogen that should change into an oxygen
Change the bond type of an existing bond¶
Now the oxygen atom is singly bonded to the carbon, we need to change this into a double bond.
- Click on the bond between the carbon and the new oxygenUse the Bonds → Bond Order → Double menu command (or just press the ‘2’ key)
The single bond has changed into a double bond.
Another way to modify a bond type is to click on the bond once which will select this bond. Then click on the bond tool in the menu bar (‘ball and stick’ logo to the right of the start), and select the proper bond type.
Use the keyboard shortcuts: select a bond, press 1 for a single bond, 2 for a double bond, 3 for a triple bond and 4 for an aromatic bond.
To get a reasonable geometry optimize the structure:
Add new (bonded) atoms¶
Now, to revert to the ethanol molecule, we first remove the new doubly-bonded oxygen atom, and then add one hydrogen atom.
- Click once on the doubly-bonded oxygen atom to select itPress the backspace key to delete itSelect the H-tool (or press the ‘H’ key)Click once on the carbon atom connected to the oxygen

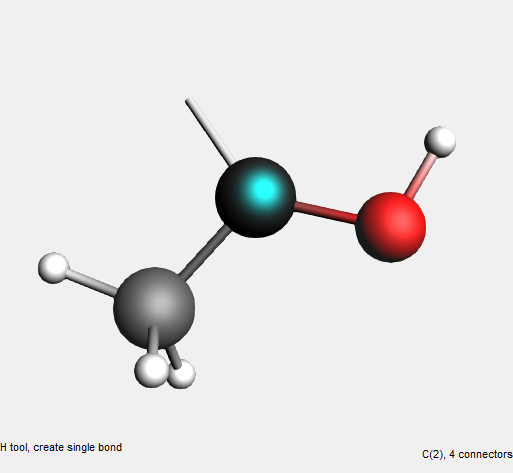

Note that this way you started bonding mode again, as indicated by the bond to the mouse position.
- Click once in empty space to make a hydrogen atom (connected to the carbon!)Click once on the just created atom to stop bondingRepeat this to add a second hydrogen to the carbon atomPre-optimize the molecule
Once again you have created an ethanol molecule.
The pre-optimizer will optimize the positions of the selected atoms only, if any.
Make sure you have no or all atoms selected if you wish to pre-optimize all atoms in your system.
Step 3: Select calculation options¶
ADF has many different modes of operation.
So to optimize the geometry of the ethanol molecule we choose the geometry optimization task:

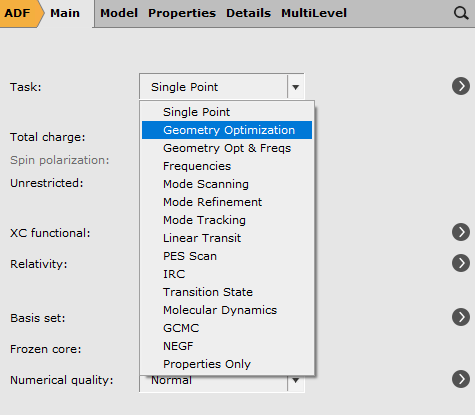

- Select Geometry Optimization from the ‘Task’ menu
After selecting a task the ADF-GUI loads a preset that adjusts input fields needed for this particular task. You can easily see what fields have been updated by a preset: they are colored green.
Check the GUI presets documentation for more information about presets.
An important input option is the XC functional to use.
For this tutorial the default functional during the SCF is sufficient. So just leave this at the default value.
You really should select a good XC functional (and basis set) to get accurate results.
With the ‘Basis Set’ pull-down menu you select the basis set you want to use.
The menu gives access to the basis sets regularly used.
For this tutorial we will choose a very small basis set. This will yield less accurate results, but the calculation runs much faster. Obviously, if you want more accurate results you should use a better quality basis set. Thus:
- Select ‘SZ’ from the ‘Basis Set’ pull-down menu
Colors of input field: changed by preset (green), by user (yellow), by both (red)
The ADF program uses a numerical integration scheme for virtually everything it may calculate. A numerical integration scheme generates some kind of grid (and corresponding weights). The default integration method in ADF (and BAND) is the so called Becke Grid.
Another technical detail is that a density fitting method is used, for computational efficiency. The spline Zlm fit is the default fit method (the old slater type fit is still available).
With the Numerical quality option you can select the quality of both the Becke integration and the spline Zlm fit at the same time.
Increasing the quality makes the results more accurate, but will require substantially more computation time.
Similarly, decreasing the quality will result in less accurate results, but you may get results faster.
The default value will in most cases be fine, certainly for this tutorial. If you go to the Details section (click on the …) you can set details of the integration scheme and fit method. However, the Numerical quality option in the main panel is the most convenient way to select the quality.

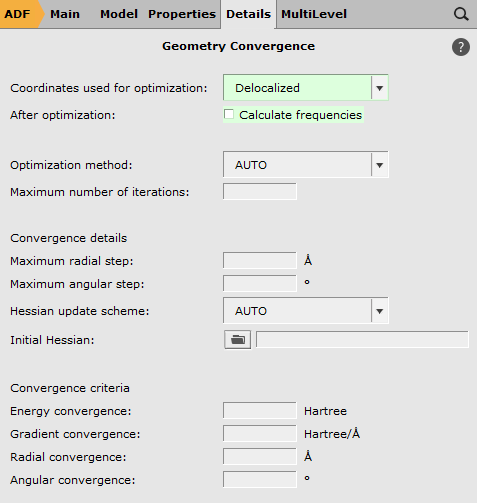

In this panel you can see the details of the geometry optimization, like the maximum number of iterations and the convergence thresholds.
Click on a unit to change the unit, your choice will be remembered.
Use the GUI Preferences to reset all units to the default values.
As the current set up is fine, go back to the main panel:
- Click the ‘Main’ button in the panel bar
Other input options¶
The panels on the right side contain many more input options. You select a panel with the menus in the panel bar, or by searching for a particular option (as we did to locate the Z-Matrix panel). When searching for an option, any text in the panels will match, as well as from the help balloons. Also the corresponding ADF input keys will match.
The menu items use a color coding to show you which panels have been affected by a preset (green), by the user (yellow), or both (red).
As we will not do anything special right now, you do not need to change anything in other panels.
Step 4: Run your calculation¶
Save your input and create a job script¶
Finally you will want to save your input.

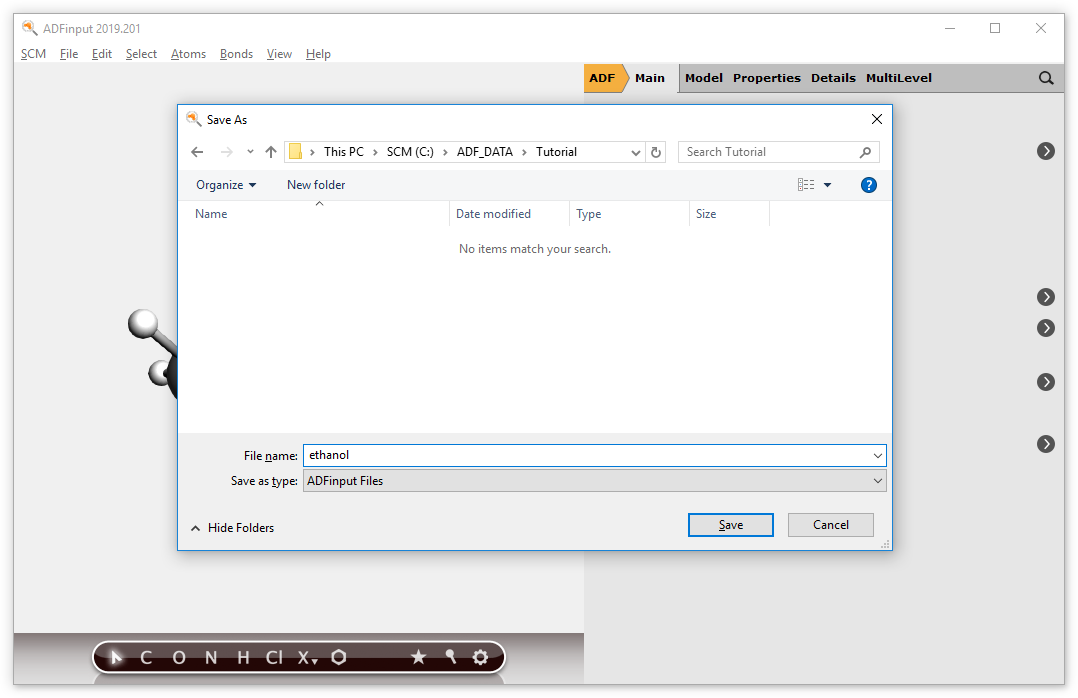

- Select the File → Save commandMake sure you select the Tutorial directory that we madeEnter the name ‘ethanol’ in the Filename field
- Click on Save
Now you have saved your current options and molecule information. The file will automatically get the extension ‘.adf’.
ADFinput has also created a corresponding script file. This script file has the same name, but with an extension ‘.run’ instead of ‘.adf’.

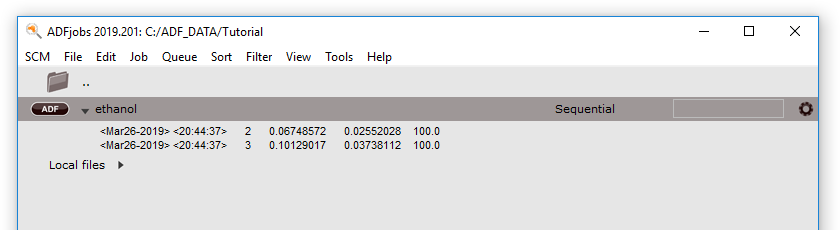

In the ADFjobs module you can see what files have been created:
- Click once in the ADFjobs window to activate itClick once on the triangle in front of the name of the job (ethanol)
You will see the .adf and .run files, and a .pid file that ADFjobs uses to store information. You might also see the picture that you saved, if you used the name ‘ethanol’ for it. Only the extensions are listed, so the real filenames are ethanol.adf, ethanol.run and ethanol.pid. Notice the job status icon (the open circle on the right) that ADFjobs uses to indicate a new job.
Run your calculation¶

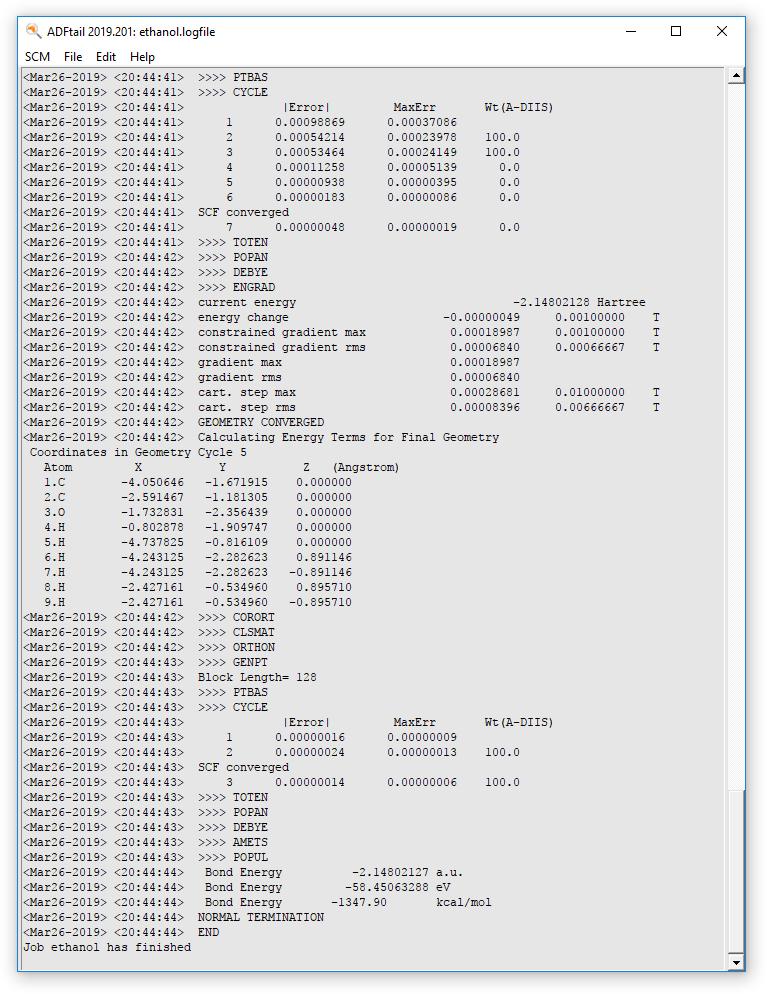

To actually perform the calculation (the geometry optimization of the ethanol molecule), use the Job → Run menu command in ADFjobs:
- Make sure the ethanol job is selected in ADFjobs (it is if you followed the tutorial)Select the Job → Run command
This will execute the run script that has just been created. If you have never made changes in the ADFjobs setup, the default behavior is to run the job in the background on your local computer, using the Sequential queue. This queue will make sure that if you try to run more then one job at the same time, they will be run one after another.
Once your job starts running, ADFjobs will show the progress of the calculation: the last few lines of the logfile:
Note that while running, the job status symbol in ADFjobs changes.
If you wish to see the full logfile while the calculation is running, just click on the logfile lines displayed in the ADFjobs window:
- Click on the logfile lines in the ADFjobs window
Now the logfile is showing in the ADFtail window:
Step 5: Results of your calculation¶
The logfile is saved and extended by ADF as it is running. Normally it is most convenient to view it only in the ADFjobs window to prevent screen clutter.
Right now it is already showing in the ADFtail window, and in the ADFjobs window, but you could have used any text editor.
Wait for the calculation to finish:
- Wait until ADFtail shows ‘Job … has finished’ as last lineIn the dialog that pops up, click ‘Yes’ to update the geometry
Now close ADFtail by using the File → Close menu command:
- In the window showing the logfile (the ADFtail window):Select the File → Close command
In the ADFjobs window, note that the job status icon has changed to indicate that the job is ready:
ADF has created a couple of data files and a couple of text files. You can check this in the ADFjobs window:
- Click on the ADFjobs window
Note that the Local files are visible because earlier in the tutorial you already clicked on the triangle opening the details for this job.
The .adf file is the input as saved by ADFinput.
The .run file is the run script, also saved by ADFinput.
To change the .run file (if your really must …), use the ‘Run Script’ panel in ADFinput (in the Details section). Your changes will be saved in the .adf file. If you make changes to the .run file itself they will be overwritten next time you save the job with ADFinput.
The .pid file is a file that contains your job status and configuration. It is used by ADFjobs.
The other files are produced by ADF. The .err file contains error messages, the .logfile shows the progress of the calculation, the .out file is the main (text) output file, and the other files are binary files that store results of the calculation.
Geometry changes: ADFmovie¶
ADF has optimized the geometry, and we can use the ADFmovie module to visualize the progress of the optimization. So let’s start ADFmovie using the SCM menu in your ADFinput window:
- Select the SCM → Movie command in ADFinputPress the Play button (the right pointing arrow)
Press the space bar to start/stop playing in ADFmovie
The ADFmovie module will display a movie of the geometry optimization.
Use the slider to quickly move through the frames.
Use the left and right arrow keys to single step through the frames.
You control playing with the buttons. When your mouse pointer is above any of the buttons, and not moving, a balloon will pop up showing what that particular button will do.
The graph on the right-hand side shows the energy as function of the geometry step.
You can show several graphs for different properties at the same time:

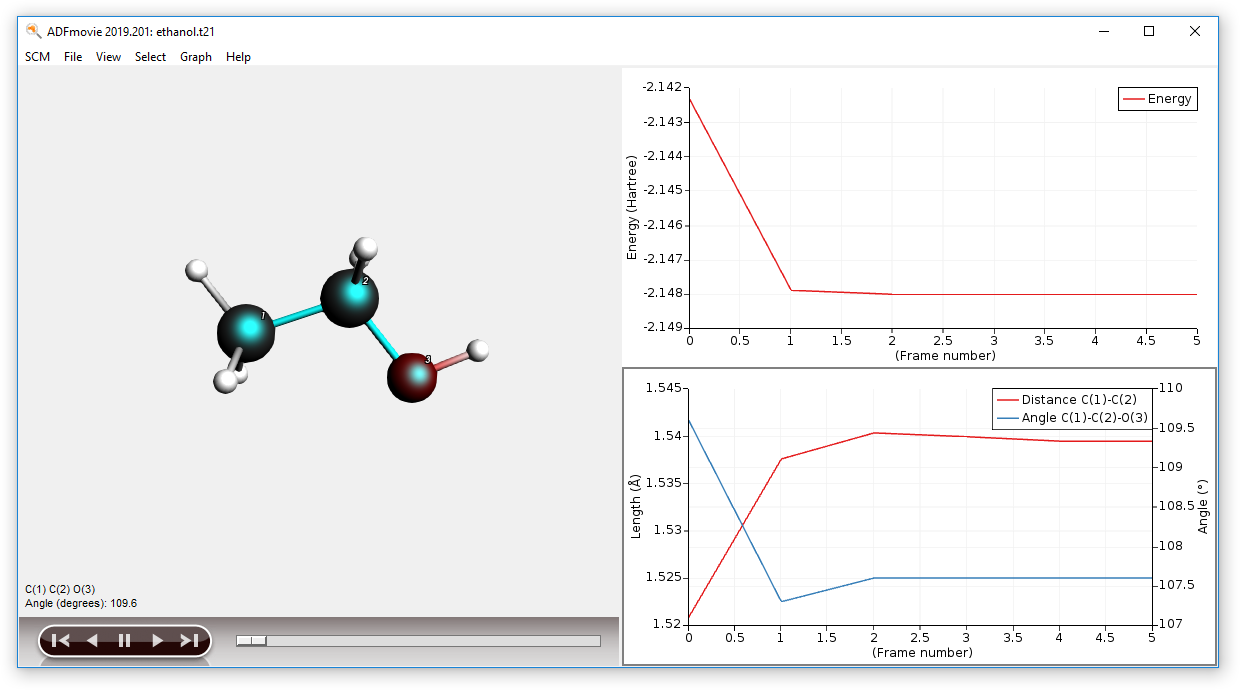

- Use the Graph → Add Graph menu commandSelect two carbon atoms by shift-clicking on themUse the Graph → Distance, Angle, Dihedral menu command
Now you have two graphs. One of them is the ‘active’ graph. When you make a new graph it will always be the active graph. You can also make a graph active by clicking on it.
When you select a property from the Graph menu (Energy, Distance and so on) that property will be plotted in the active graph.
You can also have multiple curves in one graph, if possible: one property per Y-axis. You may have several curves on the same Y axes if they are using the same unit (all Angstroms for example):
- Select two carbon atoms and one oxygen atom by shift-clicking on themUse the Graph → Distance, Angle, Dihedral menu command
Another feature is that you can click on a point in one of the graphs. It will be marked, the movie will jump to that particular step, and if you have more then one graph the corresponding point(s) will also be marked in the other graphs.
To rotate, translate, or zoom the picture, use your mouse, just as in ADFinput.
- Use the slider to go to a frame in the middle of the optimization
Selecting atoms provides information about atoms, bonds, etc. in the information field below the molecule editor pane. The information will be updated when you go to another point in the movie (a different geometry). You can see examples of these in the pictures above.
You can also show this information in the 3D window:
- Use the View → Geometric Info → Angle menu command
The angle will be visually added to your molecule :
- In the ADFmovie window: select File → Close
Orbital energy levels: ADFlevels¶
- Select your job in the ADFjobs window by clicking on the job nameSelect the SCM → Levels command
In ADFjobs right-click on a job name to go quickly select it and show the SCM menu
ADFlevels will start and show a diagram of the energy levels of the ethanol molecule.
In the diagram you can see from what fragment types the molecular levels are composed.
- Move the mouse around, above different levels, without clicking
Balloons will pop up with information about the level at the mouse position: The MO number, eigenvalue, occupation, and how it is composed of SFOs (fragment orbitals).
- Click and hold on the HOMO level of the molecule
- In the pop-up that appears, select ‘Show Labels’Click and hold on the HOMO of the O fragment typeIn the pop-up, select ‘Show Labels’
The labels of the orbitals may be different as they depend on the symmetry of your molecule.
To actually see the orbital, select the orbital from the top of the pop-up menu:
- Click and hold on the HOMO level of ethanolSelect the ‘3AAA’ command (or similar depending on the symmetry)
A window with a picture of the orbital should appear.
You can move (rotate, translate and zoom) the orbital with your mouse.
- Close the window showing the orbital: File → Close (in the window displaying the orbital)
Electron density, potential and orbitals: ADFview¶
- Select SCM → View
ADFview will start up and show a picture of your molecule:
You can use ADFview to visualize all kinds of ‘field’ related properties: densities, orbitals, potentials, etc. You actually have already used it before: the picture of the orbital that was created using ADFlevels was shown by ADFview.
Use the mouse to rotate, translate or zoom, as in ADFinput.
In the Properties menu there are some pre-defined things to visualize: density, spin-density, HOMO, LUMO and more. If you select one of these, you will see the corresponding item immediately. However, ADFview can do much more and gives you lots of control.
For example, lets show a density isosurface, colored by the electrostatic potential:
- Select the Add → Isosurface: Colored command
Below the picture a control line will be created. ADFview creates one such line for all visual items and special fields (surfaces, cut planes, calculated fields, etc.) that you add.
In this particular case the control line contains two pull-down menus that you use to select the fields that you want to visualize.
- From the first pull-down menu in the control line, select Density → Density SCF
- From the second pull-down menu in the control line, select Potential → Coulomb Potential SCF
To demonstrate some other possibilities of ADFview, do the following:

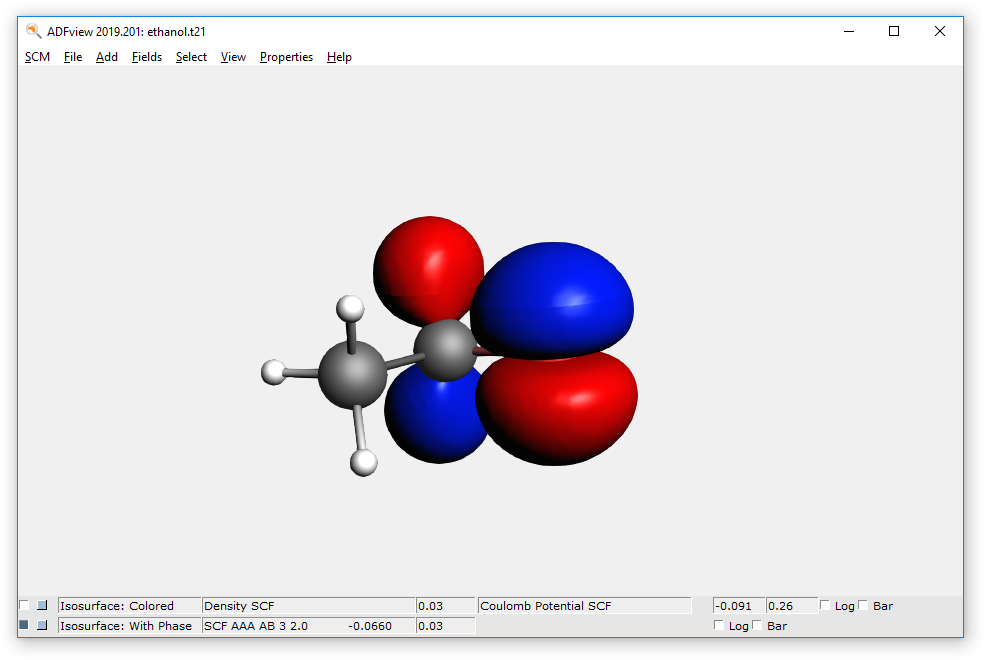

- Select the Properties → HOMO commandClick on the leftmost check box in the FIRST control line to hide the densityRotate the molecule to get a good view
- Select the Add → Cut Plane: Colored commandIn the new control line, press on the pull-down menu and select Density → Density SCFClick the check box in front of the ‘Isosurface: With Phase’ line to hide the HOMOSelect the Carbon and Oxygen atoms (three atoms)Click the ‘with atoms’ button next to the ‘Position plane’ option (thus the button, not the check box)Click the check box in front of the ‘Isosurface: With Phase’ line to show the HOMOSelect the Fields → Grid → Medium commandClick Yes to recalculate the fieldsRotate your molecule to get a good view
You can save the picture you create using the Save Picture menu command:
- Select File → Save Picture …Enter the name (without extension) of the file you want to createClick Save
A picture with the (file)name you specified has been created.
You might want to explore some more of the possibilities of ADFview on your own. Many different properties can be visualized as you probably have noticed in the pull-down menus.
Browsing the Output: ADFoutput¶
The output file (tutorial.out) is a plain text file. You can view it with your favorite text editor (or text viewer). You can also use the ADFoutput GUI module which provides a convenient way to check the results:
- Select the SCM → Output commandSelect the Iterations → Geometry Cycles command
The ADFoutput program will start showing the results of your calculation, and via the menu you jumped to the first section with geometry details:
You can use the menus to go to different parts of the output file, or you can just use the scroll bar. If a menu option is shaded, this means that no corresponding section of the output is available.
Click text highlighted in blue to jump to the next section with the same title, if present.
Use the search box at the bottom of the ADFoutput window (cmd/ctrl-F)
As we are now done with tutorial 1, close all windows that belong to this tutorial:
- Select the SCM → Quit All command in any ADF-GUI window
All open windows from the ADF-GUI will be closed.
