The Amsterdam Modeling Suite contains a Conformers utility program that allows easy generation and manipulation of sets of molecular conformations:
Generation of conformer sets from an initial geometry.
Merging of conformer sets with a variety of equivalence comparison methods.
Geometry optimizations of conformer sets with higher-level engines.
Calculations of properties (e.g. spectra) for conformers from a set.
By coupling to the AMS driver, all of the above can be done using any engine available in AMS.
In this tutorial you will learn to:
Generate a conformer set for 1,2-Propylene glycol (with the ForceField engine)
Optimize and re-score the conformer set with a higher level of theory (with the DFTB and ADF engines)
Calculate Boltzmann averaged properties such as IR, UV/Vis and NMR spectra.
For a detailed description of the methods and options of the Conformers utility, see the Conformers page in the AMS driver manual.
Generate a conformer set¶

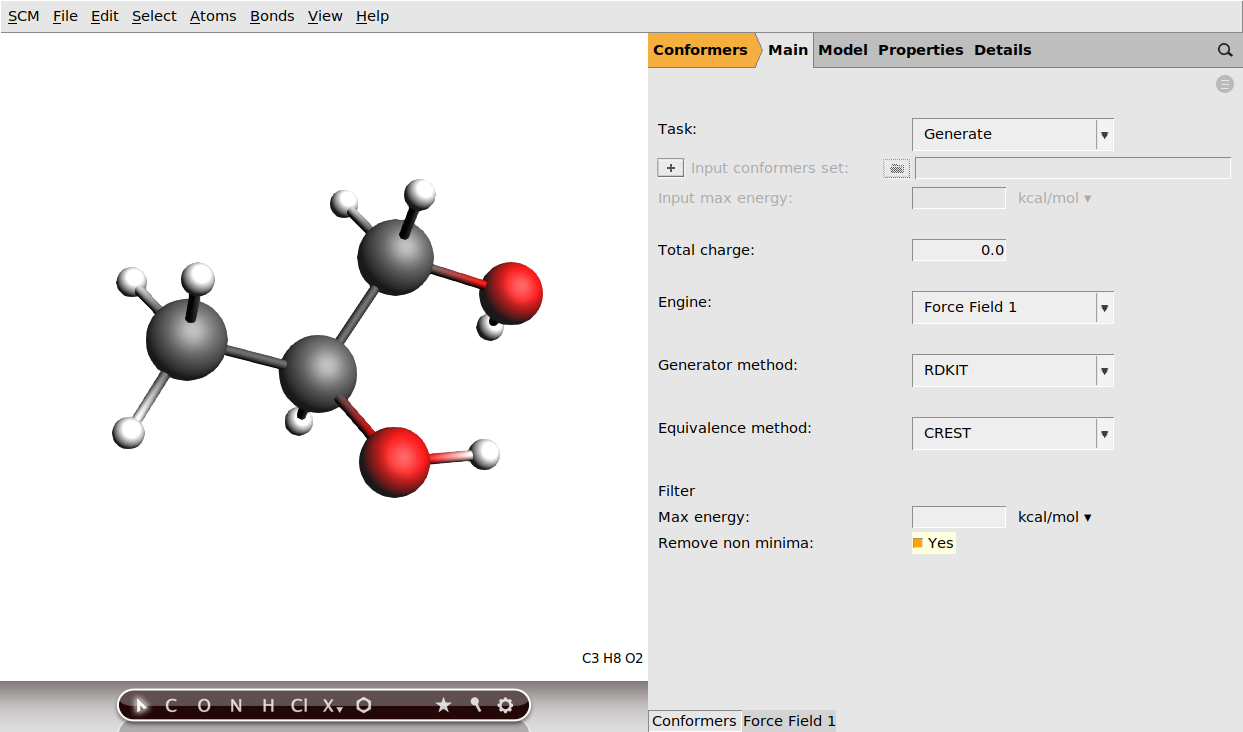

Once we have our molecule, we just need to set up the options for the Conformers tool:
Note that we are using the RDKit generator here, which uses the RDKit library to generate a set of randomized molecular geometries. These are then optimized using the AMS driver and the chosen engine (in this case, the default ForceField engine is used) and duplicates discarded to yield a set of unique conformers. Finally, thanks to us ticking the Remove non minima box, a PES point characterization is performed on each structure to ensure that it is indeed a minimum on the potential energy surface. Otherwise it could happen that the optimization accidentally converges to a transition state, which would then be included in our conformer set. It is generally good practice to enable this option when using fast engines, where the computational cost of the PES point characterization is not a problem.
This concludes the setup of the job. We can now save and run it!

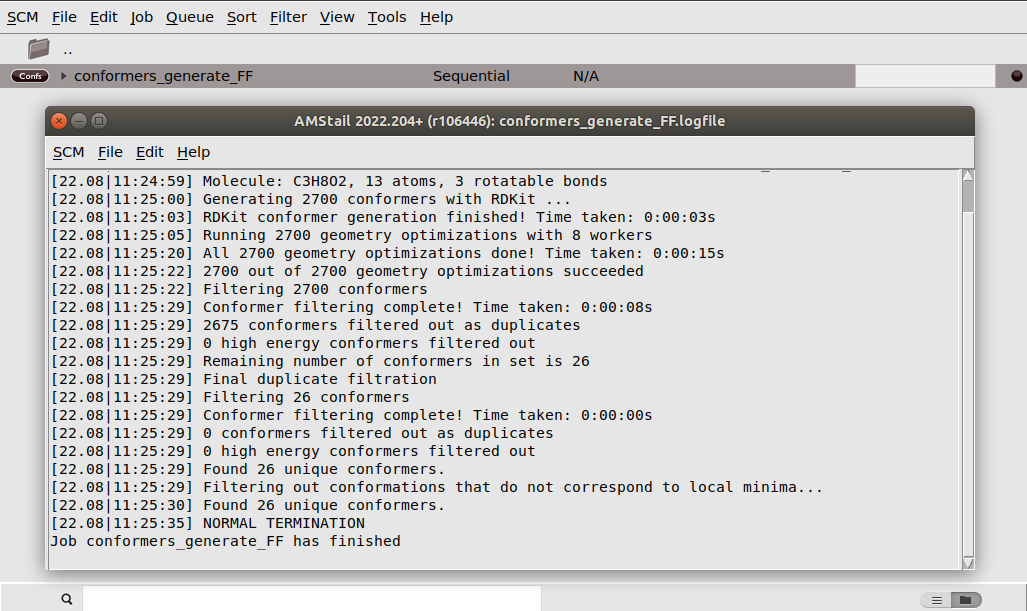

If you watch the logfile while the job is running, you will see that the initial randomization of the geometries with RDKit is very quick, and that most time is spent in the geometry optimizations. However, the job should be pretty quick to run.
Once the job has finished, AMSinput will come to the front and ask you if you want to use the

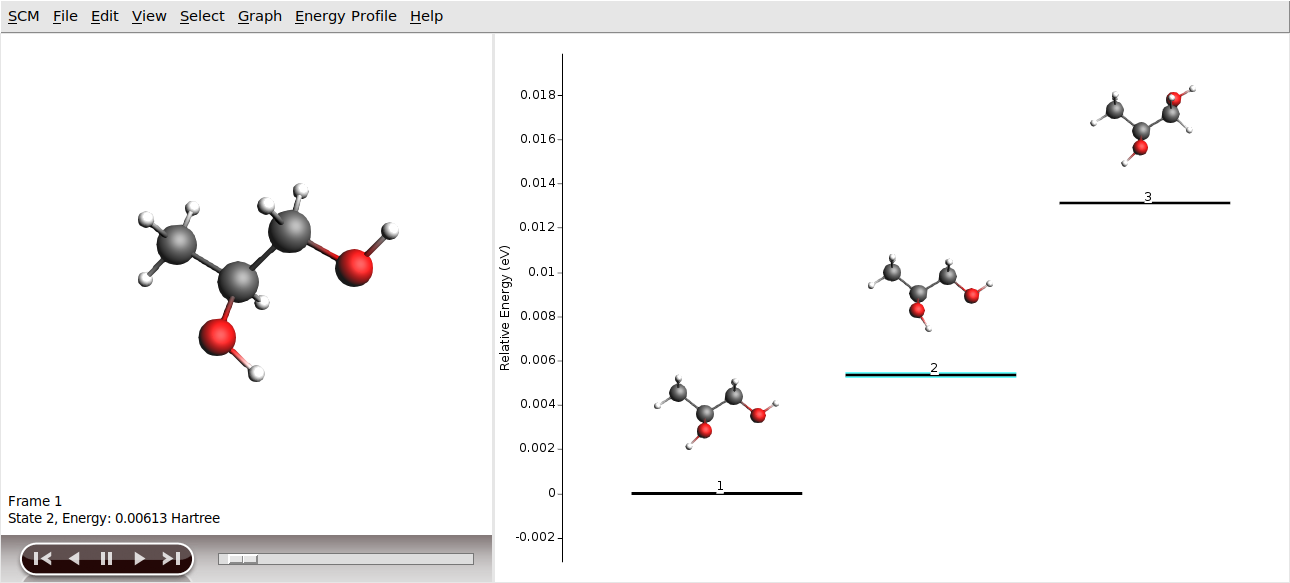

conformers.rkf file of the finished calculation to set up another calculation. You can choose Yes here, as this is exactly what we will do in the next part of the tutorial. However, let us first have a look at the conformers we found. The obtained conformer set can be visualized and inspected in AMSmovie.

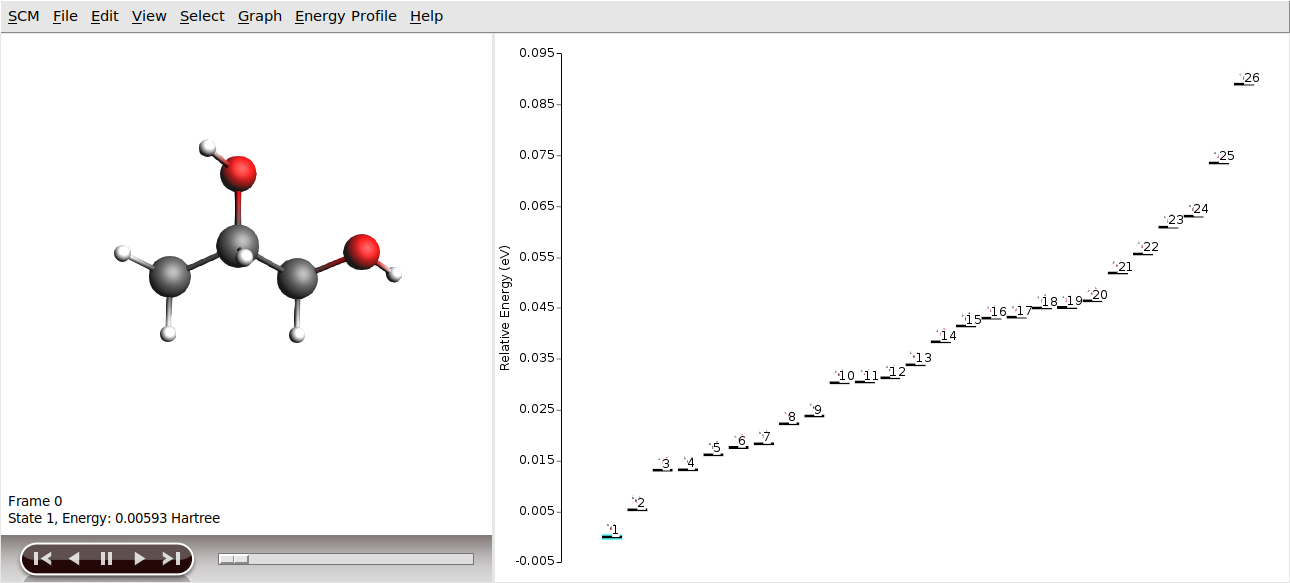

There are 26 conformers to be found with the ForceField engine for 1,2-Propylene glycol.
Getting more accurate conformers geometries and energies¶
The conformers we just generated were optimized using the (default) ForceField engine. While the Force Field engine is computationally very fast, the conformers geometries and energies will not be very accurate.
For practical applications, you may need more accurate geometries and energies. This can be achieved in two ways:
- Directly generate with an accurate engine
You can directly generate the conformers using a more accurate engine, e.g. the DFT engine ADF. In the Conformers panel, set Task to Generate. Select an accurate engine (e.g. Engine → ADF) and then configure the details of the engine by clicking on the tab at the bottom of the panel (e.g. ADF 1). This is easy to set up, but can be computationally very expensive to run, since the conformer tool will run thousands of Geometry Optimization under the hood.
- Generate with fast engine and refine with accurate engine
An alternative, computationally cost-effective approach is to take the conformers generated with a lower level of theory engine and refined them with a more accurate engine.
In the next section we will illustrate this second method by taking the conformers we just generated using the ForceField engine and then:
optimize the conformers generated with the ForceField engine using the more accurate DFTB engine
score the conformers optimized with DFTB engine using energies from the more accurate ADF engine
Optimization and scoring at higher level of theory¶
Next step is to improve the geometries and energies of the conformers we have found.

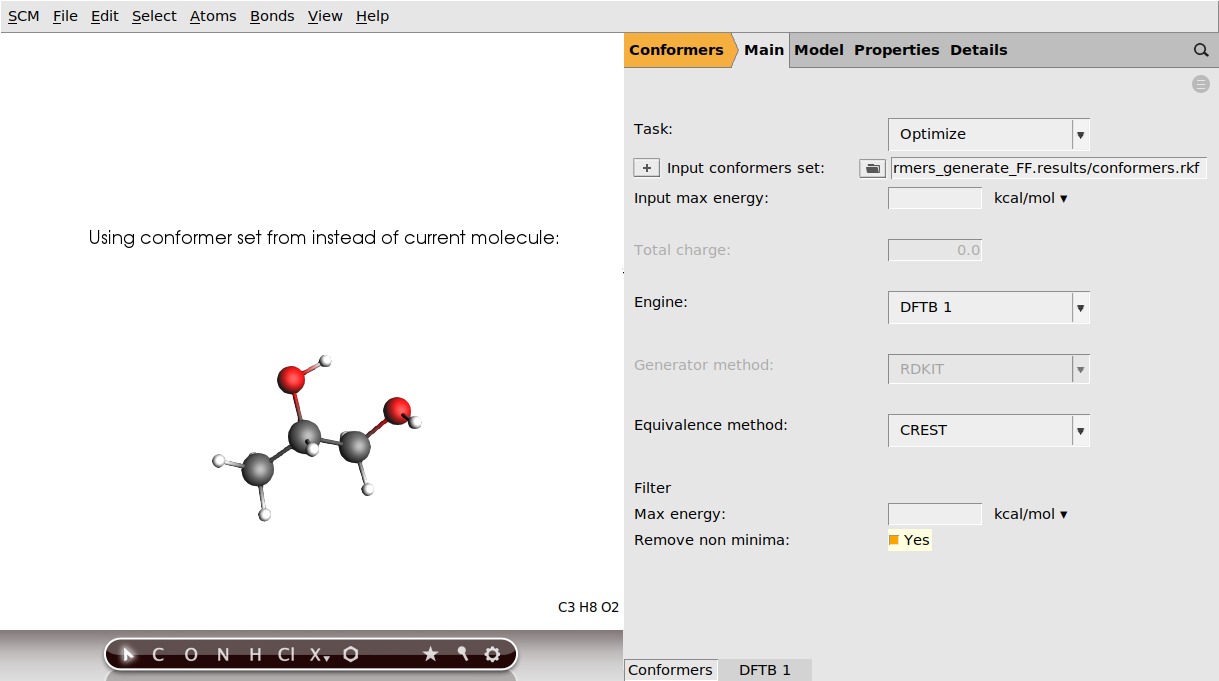

The Optimize task of the conformer tool is intended for this: it will perform a geometry optimization on each of the conformers in the set and will filter out duplicates in the end. (You may get duplicates at this point if multiple conformers from the original set collapse into the same minimum at the new level of theory.)
conformers_generate_FF.results/conformers.rkf(If you clicked Yes in the popup window earlier, this will already be filled in.)
In this tutorial we will use default settings for the DFTB engine, but in general you may want to adjust the engine’s settings. To navigate to the Engine’s panel, click the DFTB 1 tab at the bottom of the panel. To go back to the Conformers main panel, click on Conformers at the bottom of the panel.
We can now save and run the calculation:
conformers.rkffile in AMSinput, click Yes.
Wait for the job to finish (it should rather quick) and open the results in AMSMovie:
conformers_optimize_DFTBjob selected, click SCM → Movie in the menu bar.
You may notice that after the DFTB optimization you end up with with fewer conformers than you started with. This is because some conformers that are distinct at the force-field level converge to the same local minimum when optimized using the DFTB engine (and are therefore removed as duplicate conformers).
It is important to keep in mind that different levels of theory might have different conformer sets: a conformation that is a local minimum at the force field level might not have an equivalent local minimum at the DFT level or vice-versa. It is therefore possible that you will miss out some of the conformers by following the multi-step-procedure outlined in this section. On the upside, this multi-step procedure is more than 1000 times faster than simply generating conformers using the ADF engine.

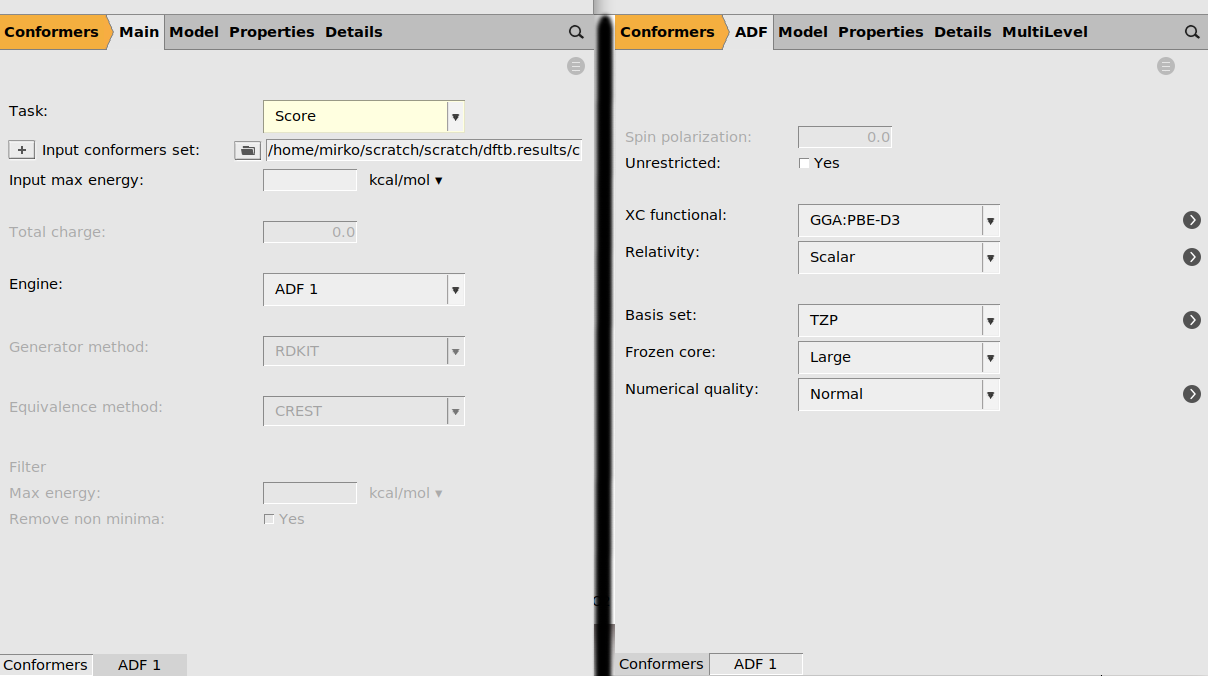

Finally, we can use the Score task to perform a single point calculation at the DFT level on the DFTB-optimized conformer set:
conformers_optimize_DFTB.results/conformers.rkf. (If this is not the case click the folder button next to Input conformer set and select it in the dialog.)
Let us now configure the details of the used engine:
conformers.rkffile in AMSinput, click No. (We will proceed with the DFTB results in the next step of this tutorial.)
When the calculation is finished, open and visualize the results with AMSMovie:
conformers_scored_ADFjob selected, click SCM → Movie in the menu bar.
Boltzmann weighted IR spectra¶
Starting from a previously generated conformers set, you will now learn how to calculate Boltzmann weighted IR spectra. For the purpose of this tutorial we will use the DFTB optimized set of conformers and calculate the spectrum at the DFTB level.
Whatever job we now set up will be repeated for each conformer from the selected set. As all the structures in the set have already been optimized, we just need to run a single-point calculation on each conformer now, for which we enable the calculation of all the desired spectra.
Technically you could select Task → Geometry Optimization and then first optimize the geometries of the set before calculating the spectra. However, no filtering for duplicates takes place after the optimizations, so if two conformers would then collapse to the same minimum we would double count them in the calculation of the spectra. We therefore recommend to always optimize conformer sets with the Optimize task of the Conformers tool.
We are now ready to run these jobs!

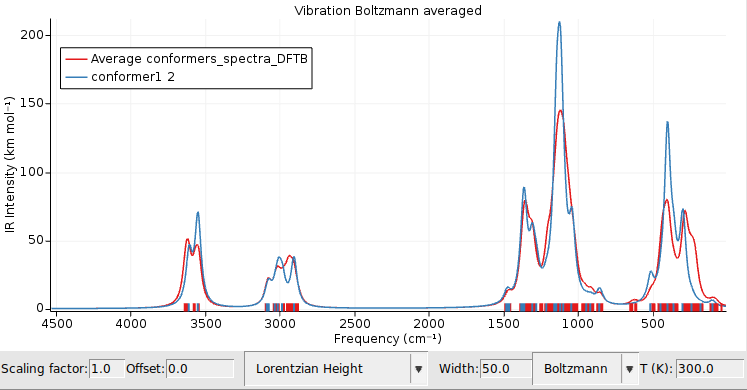

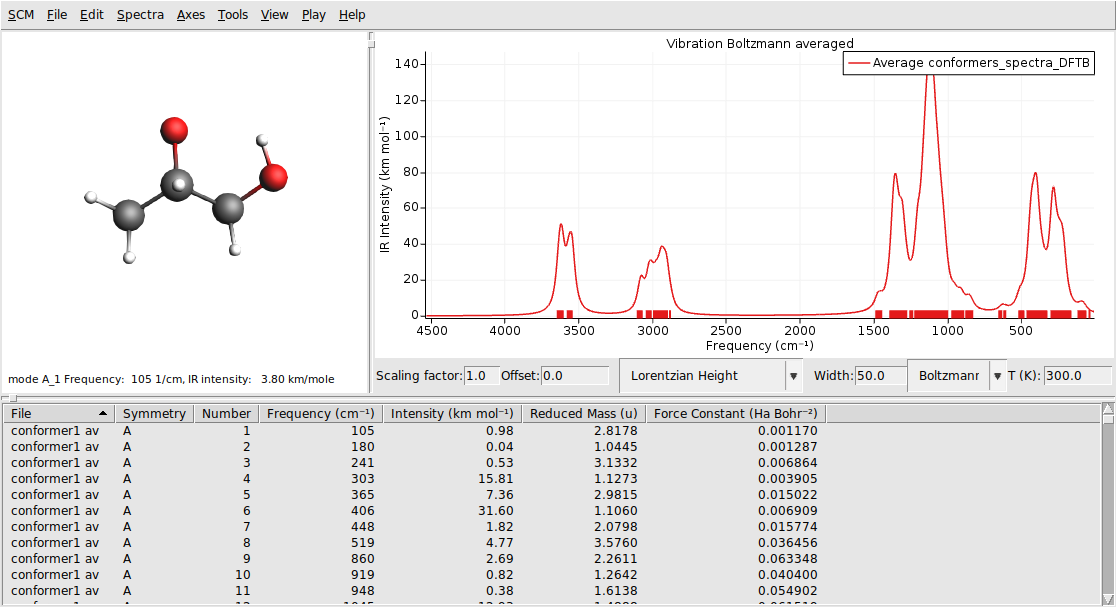

The IR spectra of the different conformers contribute to the total spectrum according to their Boltzmann weights. You can change the temperature that is used for the Boltzmann distribution in the field on the right. Let us add the IR spectrum of the pure lowest energy conformer to our graph, to see how the Boltzmann averaged spectrum differs from the spectrum of a single conformer.
Try setting the Boltzmann temperature to 0K: as expected the two spectra will then overlap, as only the lowest energy conformer contributes at 0K. Feel free to add the individual spectra of other conformers to get an idea on how much the IR spectrum depends on the conformation.

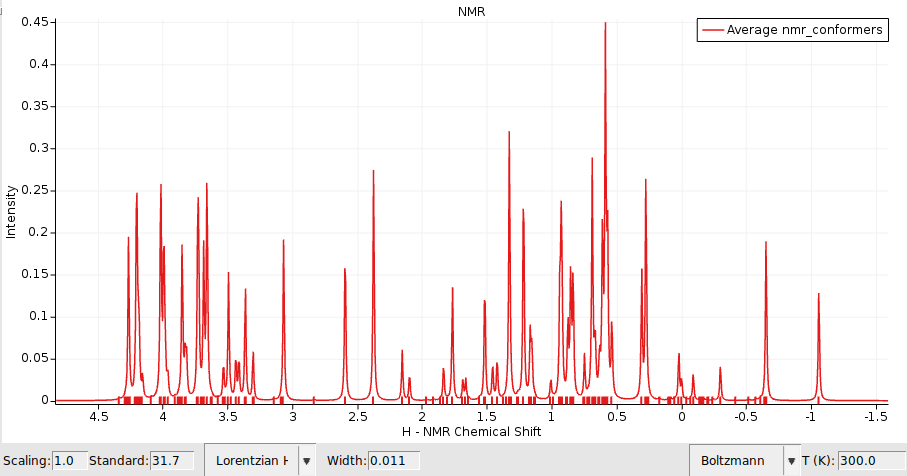

Boltzmann weighted H-NMR or UV/Vis spectra¶

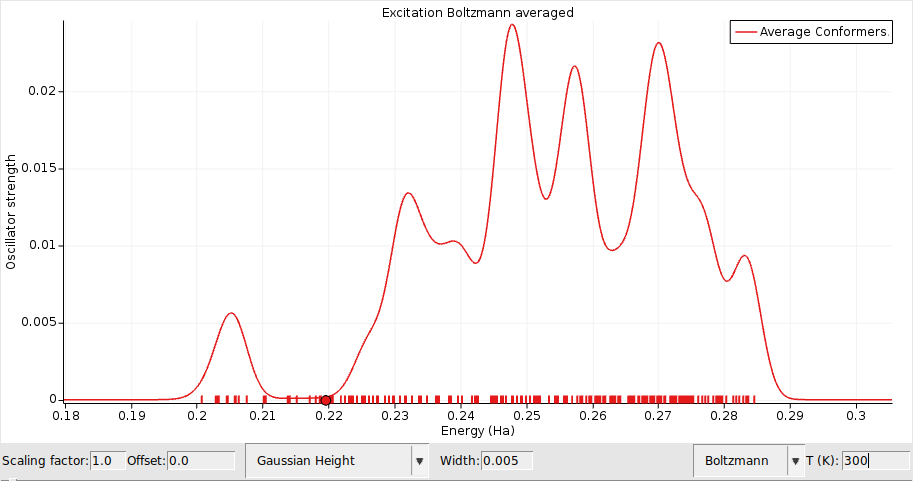

Similarly we can compute Boltzmann weighted NMR or UV/Vis spectra using the ADF engine.
Let’s first set up the calculation details for the ADF engine depending on which property you want to calculate:
Now we select the conformer set we computed earlier on:
Save and run:
